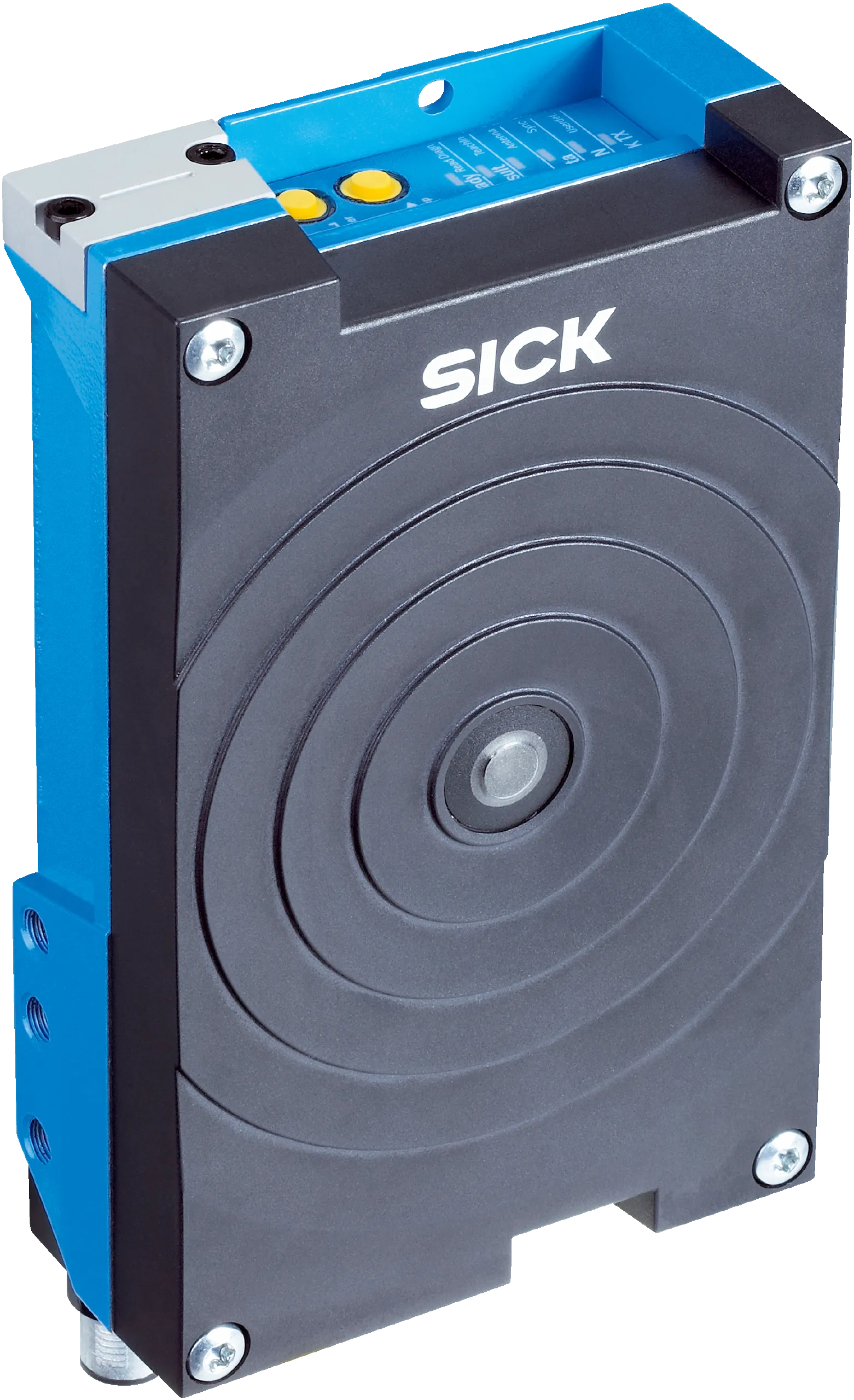

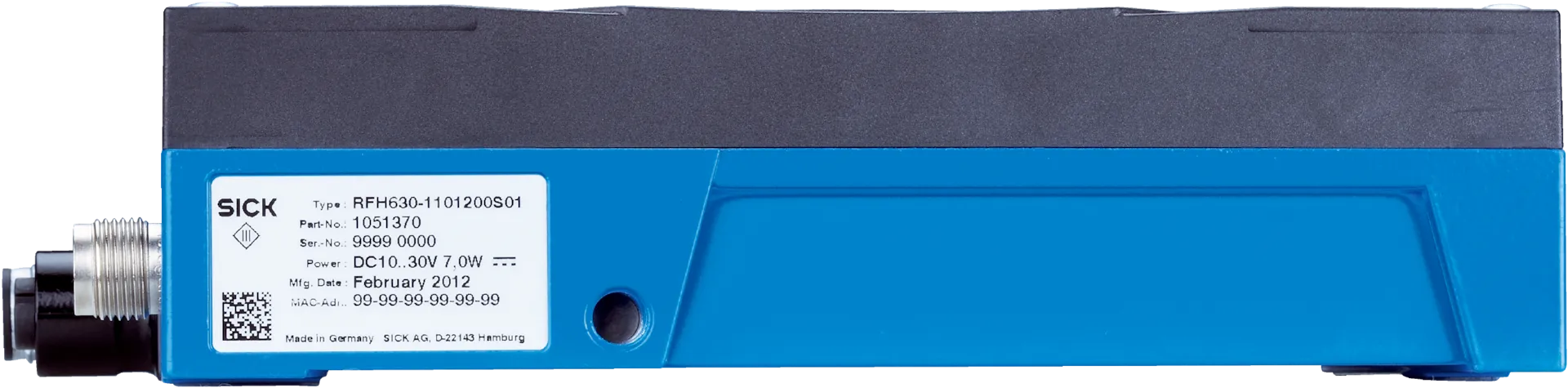

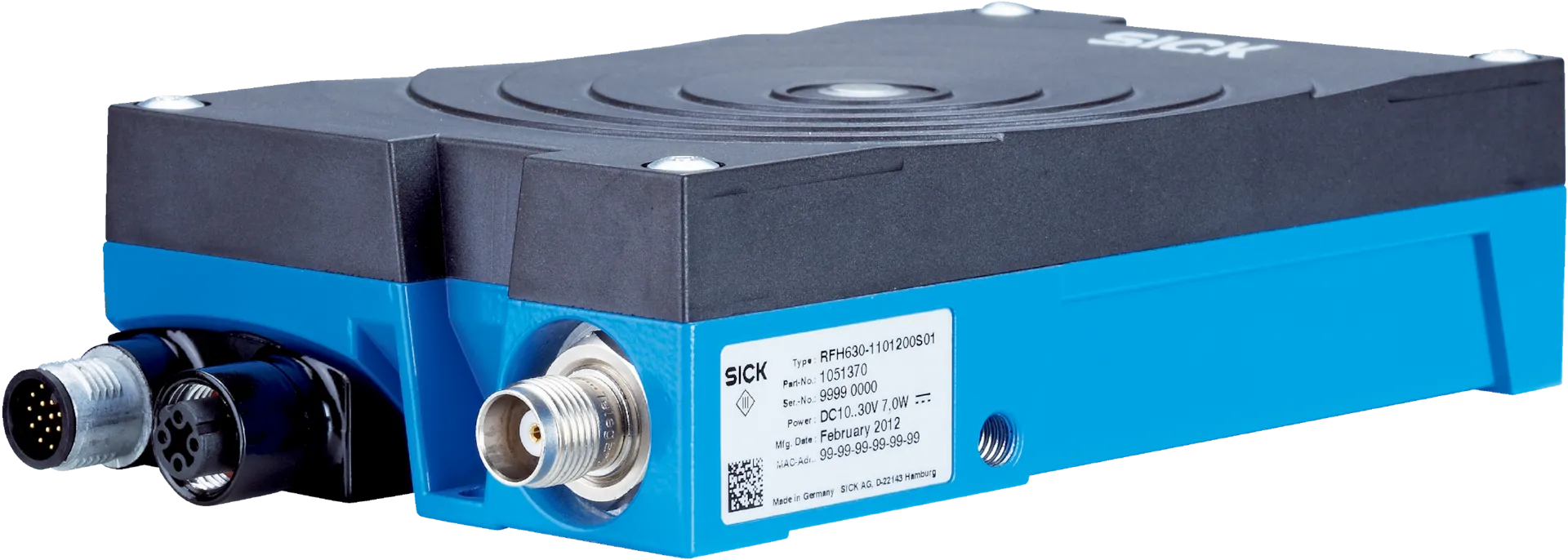

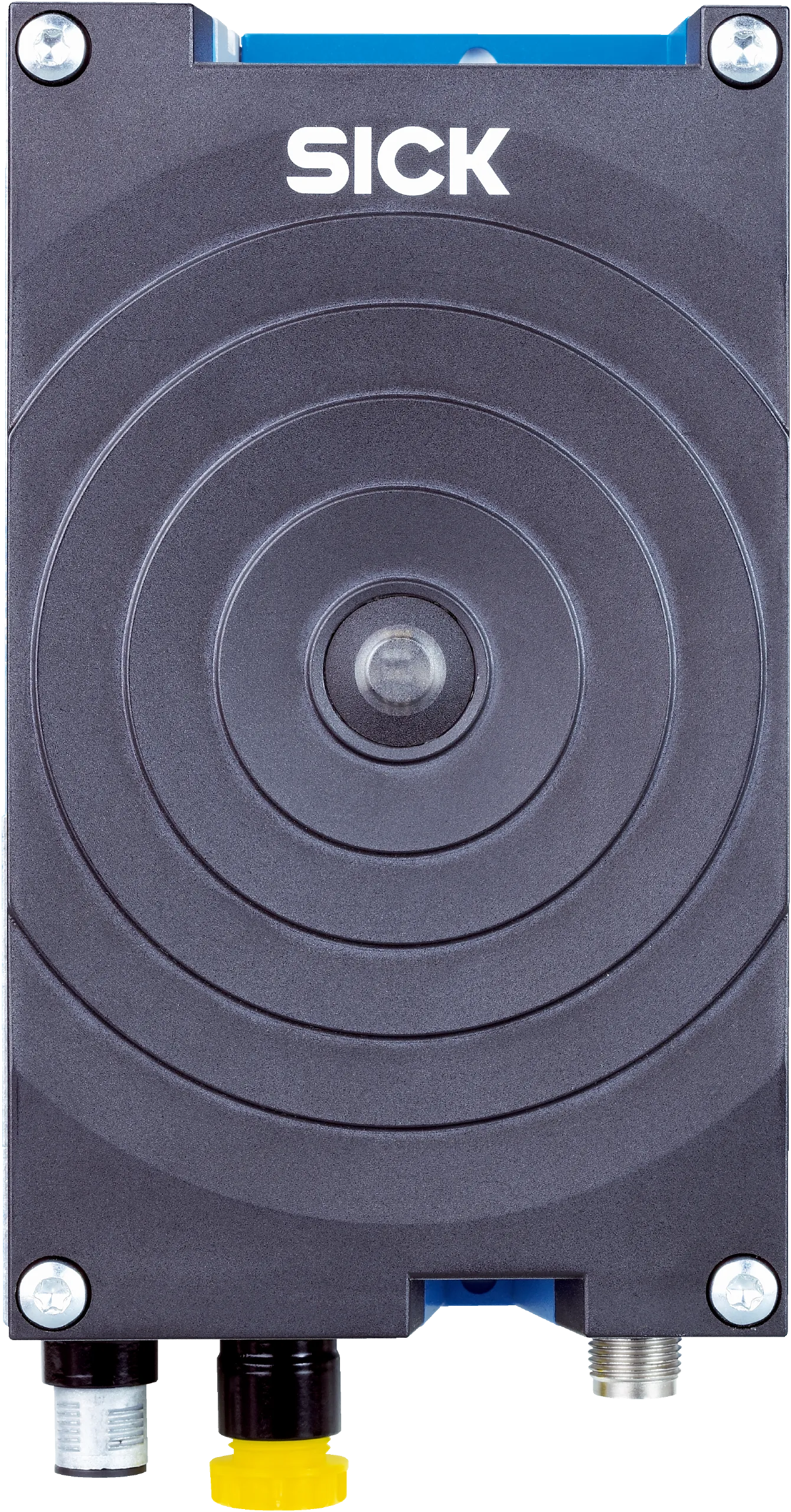

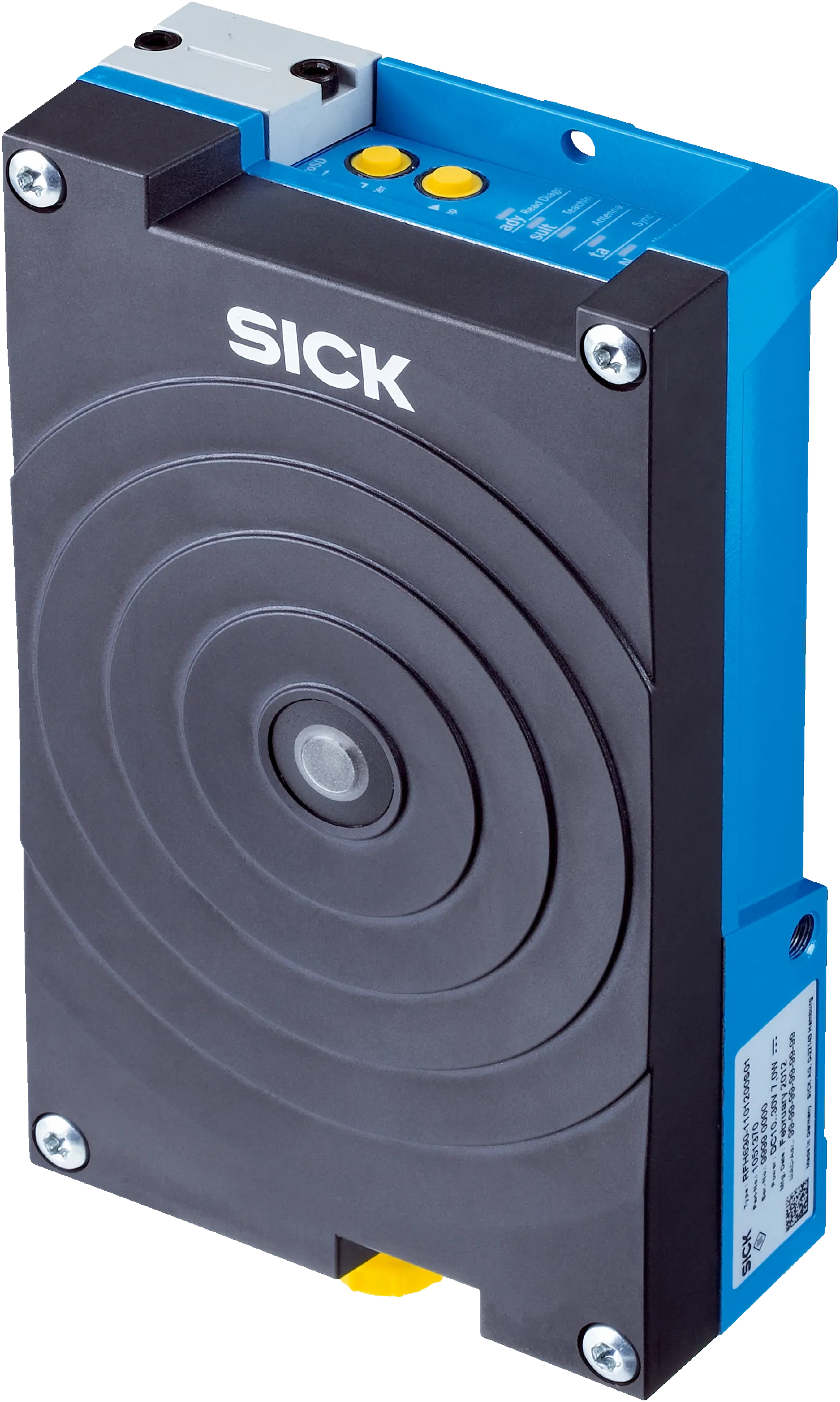

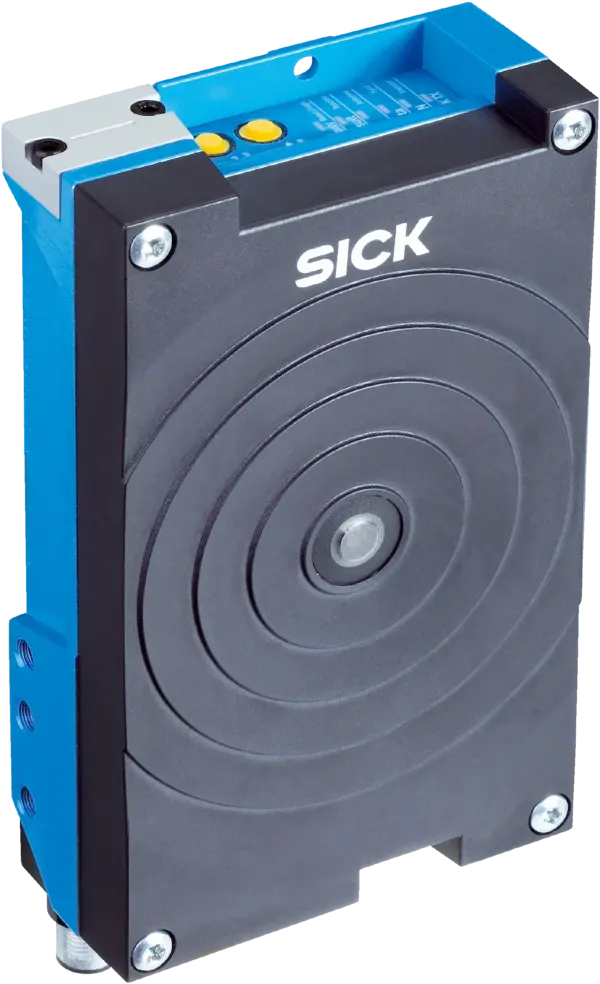

Sick RFH630-1102101
RFID | RFH6xx | RFH630-1102101 | Radio approval: Global | Frequency band: HF (13.56 MHz) | Reading range: ≤ 240 mm | Enclosure rating: IP67
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID | RFH6xx | RFH630-1102101 | Radio approval: Global | Frequency band: HF (13.56 MHz) | Reading range: ≤ 240 mm | Enclosure rating: IP67
Specification
Features
| Version | Mid Range |
|---|---|
| Product category | RFID read/write device with integrated antenna |
| Radio approval | Global |
| Frequency band | HF (13.56Â MHz) |
| Carrier frequency | 13.56Â MHz |
| RFID standard | ISO/IECÂ 15693, ISO/IECÂ 18000-3 âMode 1â |
| Connection type | Ethernet |
| Reading range | â¤Â 240 mm 1) |
| Antenna | Integrated |
| Connection of external antennas | 1 |
| Typical access times | UID read (64Â bits/8 bytes): 18Â msRead 1Â block (32Â bit/4 Byte): 13Â msWrite 1Â block (32Â bit/4 Byte): 16Â msRead 28Â blocks (896Â bit/112 Byte): 64Â msWrite 28Â blocks (896Â bit/112 Byte): 442Â ms |
| Air interface data transmission rate | 26Â kbit/s (default) |
Mechanics/electronics
| Connection type | 1, 1Â x M12, 17-pin male connector, A-coded, M12, 4-pin female connector, D-coded |
|---|---|
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
| Power consumption | Typ. 8 W |
| Housing material | Aluminum die castPlastic (PPS) |
| Housing color | Blue, black |
| Enclosure rating | IP67 |
| Protection class | III |
| Weight | 710Â g |
| Dimensions (L x W x H) | 147 mm x 88 mm x 39 mm 1) |
| MTBF | >Â 100Â years |
Interfaces
| Ethernet | â , TCP/IP |
|---|---|
| Function | Data interface (read result output), Service interface |
| Data transmission rate | 10/100Â MBit/s |
| PROFINET | â |
| Function | PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2), Data interface (read result output) |
| Data transmission rate | 10/100Â MBit/s |
| EtherNet/IP⢠| â |
| Function | Data interface (read result output) |
| Data transmission rate | 10/100Â MBit/s |
| EtherCAT® | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600 |
| Function | Data interface (read result output) |
| Serial | â , RS-232, RS-422, RS-485 |
| Remark | RS-422/RS-485 only via 4-wire |
| Function | Data interface (read result output), Service interface |
| Data transmission rate | 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud |
| CAN | â |
| Remark | CSN (SICK CAN Sensor Network) |
| Function | Data interface (read result output) |
| Data transmission rate | 20 kbit/s ... 1,000 kbit/s |
| CANopen | â |
| Function | Data interface (read result output) |
| Data transmission rate | 20 kbit/s ... 1,000 kbit/s |
| PROFIBUS DP | â |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Function | Data interface (read result output) |
| Digital inputs | 2Â (physical, 2Â additional logical inputs via optional CMC600 parameter memory in CDB620Â /Â CDM420) |
| Digital outputs | 2Â (physical, 2Â additional logical outputs via optional CMC600 parameter memory in CDB620Â /Â CDM420) |
| Optical indicators | 6Â LEDs, multi-color (device status)1Â RGB LED (Process feedback) |
| Acoustic indicators | 1Â beeper (Feedback) |
| Configuration software | SOPAS ETÂ 1) |
| Memory card | microSD memory card (parameter cloning) |
Ambient data
| Electromagnetic compatibility (EMC) | ENÂ 301489-3 |
|---|---|
| Vibration resistance | ENÂ 60068-2-64:2008-02 |
| Shock resistance | ENÂ 60068-2-27:2009-05 |
| Ambient operating temperature | â20 °C ... +50 °C |
| Storage temperature | â25 °C ... +70 °C |
| Permissible relative humidity | 95Â %, Non-condensing |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
| Profinet certificate | â |
| Ethernet/IP certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
| 4Dpro | â |
Classifications
| ECLASS 5.0 | 27280401 |
|---|---|
| ECLASS 5.1.4 | 27280401 |
| ECLASS 6.0 | 27280401 |
| ECLASS 6.2 | 27280401 |
| ECLASS 7.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 8.1 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 10.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ETIM 6.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| UNSPSC 16.0901 | 52161523 |
