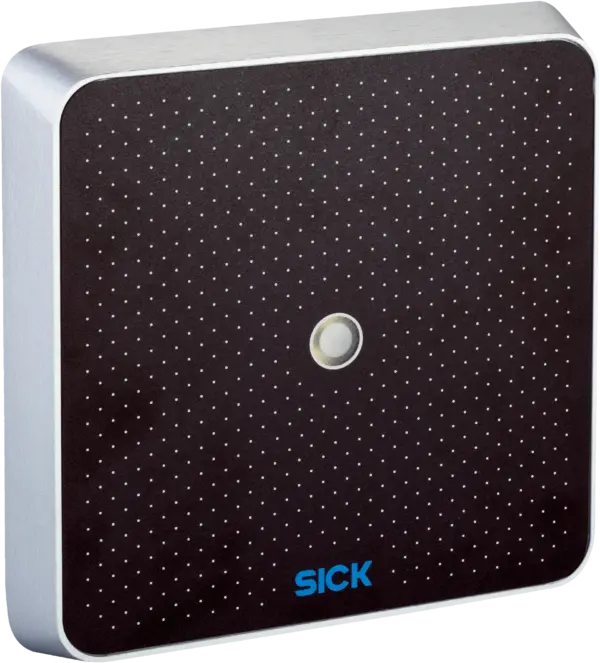

Sick RFA630-101
Antennas | RFID antennas | RFA630-101 | Carrier frequency: 902 MHz … 928 MHz | Dimensions (L x W x H): 239 mm x 239 mm x 65 mm
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Antennas | RFID antennas | RFA630-101 | Carrier frequency: 902 MHz … 928 MHz | Dimensions (L x W x H): 239 mm x 239 mm x 65 mm
Specification
Features
| Product segment | Antennas, RFID, RFID |
|---|---|
| Product | RFID antennas |
| Description | Industrial RFID UHF antenna, carrier frequency 902 ... 928 MHz (USA, Canada, México, Australia, Brazil, China, Japan), TNC male connector, with integrated feedback LED (RGB) |
| Version | Long Range |
| Frequency band | UHF (860 MHz ... 960 MHz) |
| Carrier frequency | 902 MHz ... 928 MHz |
| Output power | 4Â W EIRP |
| Polarization | Circular polarised / RHCP |
| Voltage standing wave ratio | <Â 1.2 |
| Gain | Typ. 9 dBic |
| 3 dB aperture angle | Typ. 72° |
| Optical indicators | 1Â LED, multi-colored |
| Housing material | AluminumPolycarbonat (front) |
| Enclosure rating | IP67 |
| Ambient operating temperature | â25 °C ... +50 °C |
| Storage temperature | â30 °C ... +70 °C |
| Permissible relative humidity | 95Â %, Non-condensing |
| Dimensions (W x H x L) | 239 mm x 65 mm x 239 mm |
| Weight | 3,000Â g |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27280401 |
|---|---|
| ECLASS 5.1.4 | 27280401 |
| ECLASS 6.0 | 27280401 |
| ECLASS 6.2 | 27280401 |
| ECLASS 7.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 8.1 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 10.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ETIM 5.0 | EC002593 |
| ETIM 6.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| UNSPSC 16.0901 | 52161523 |
