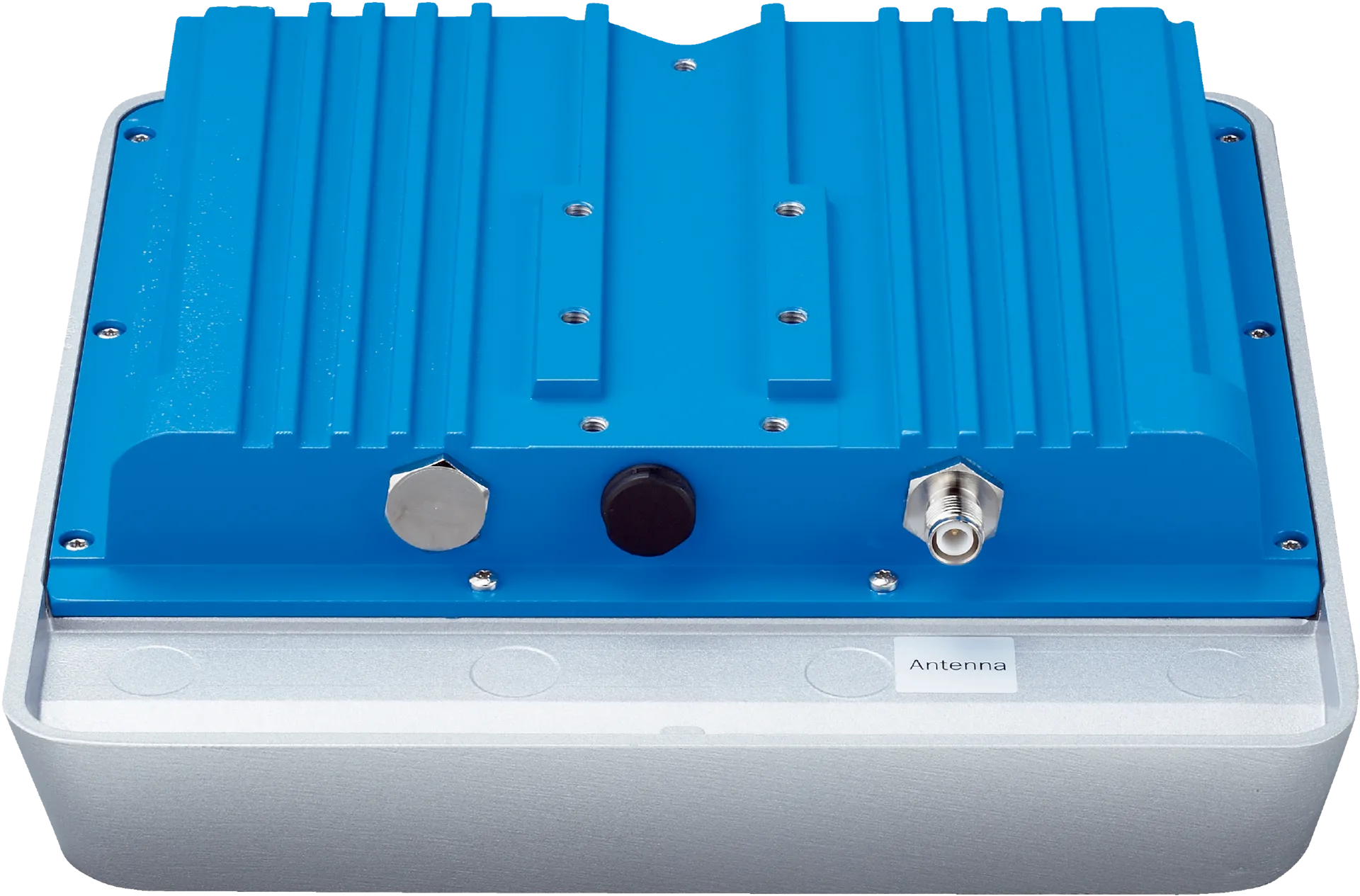

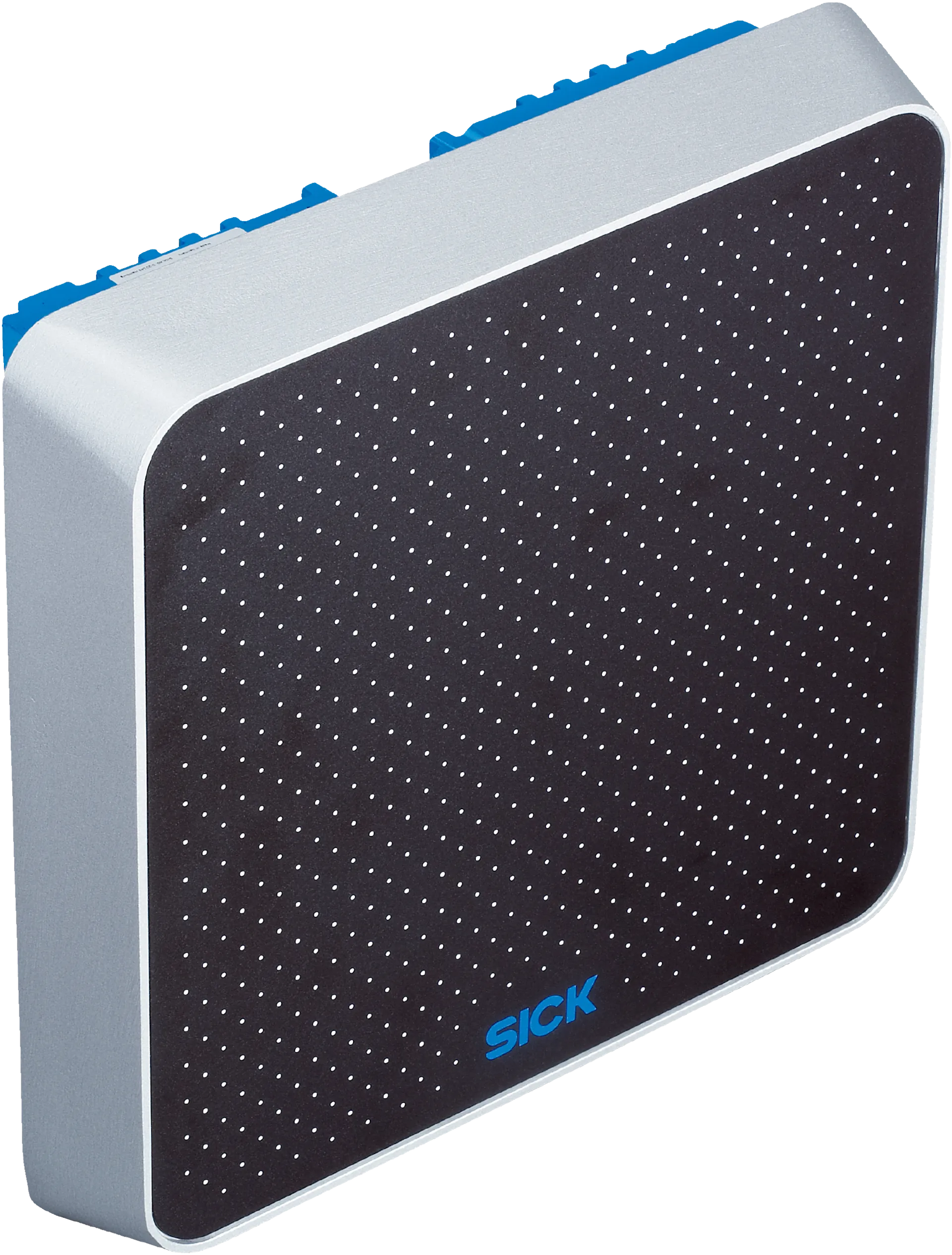

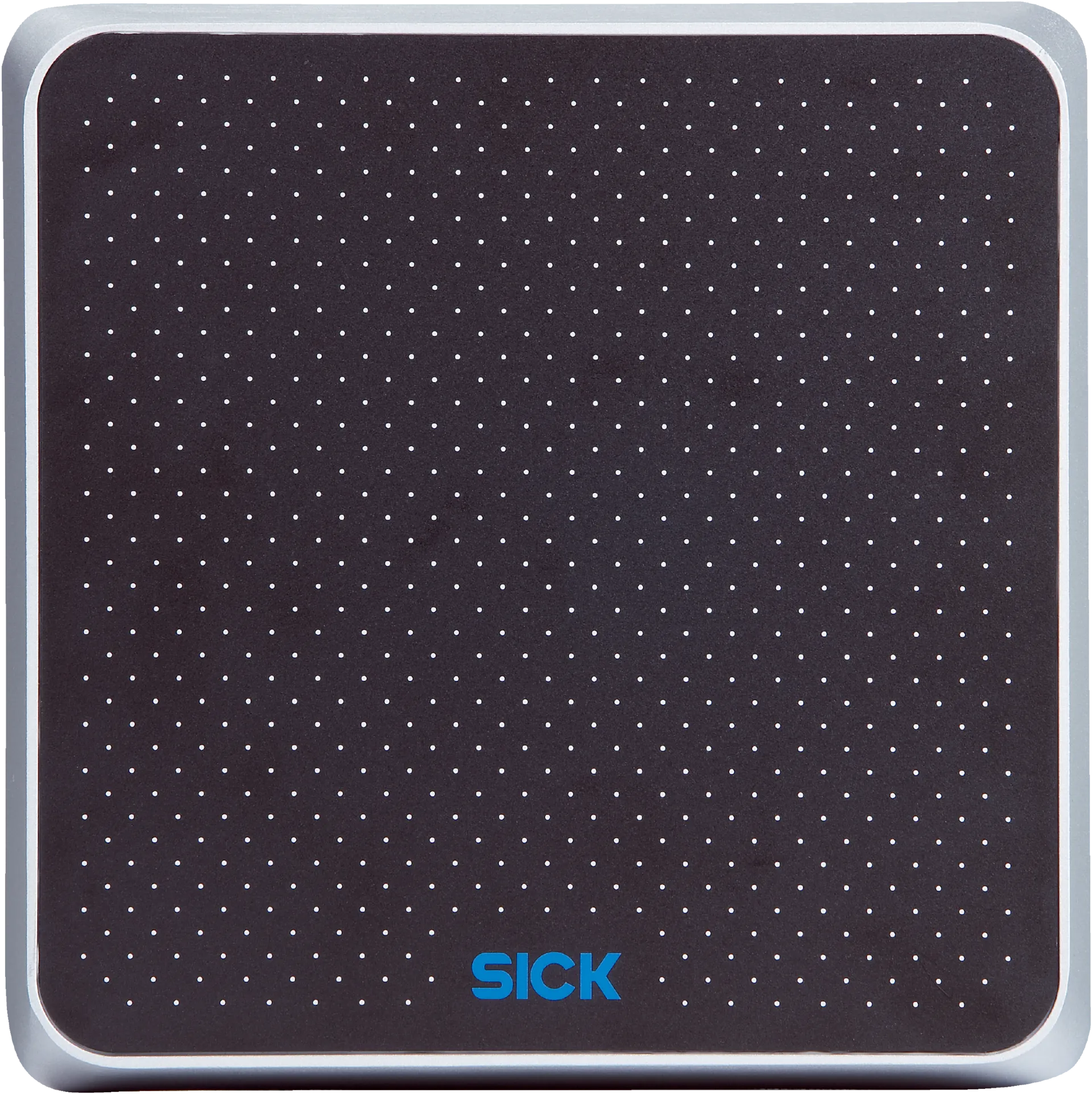

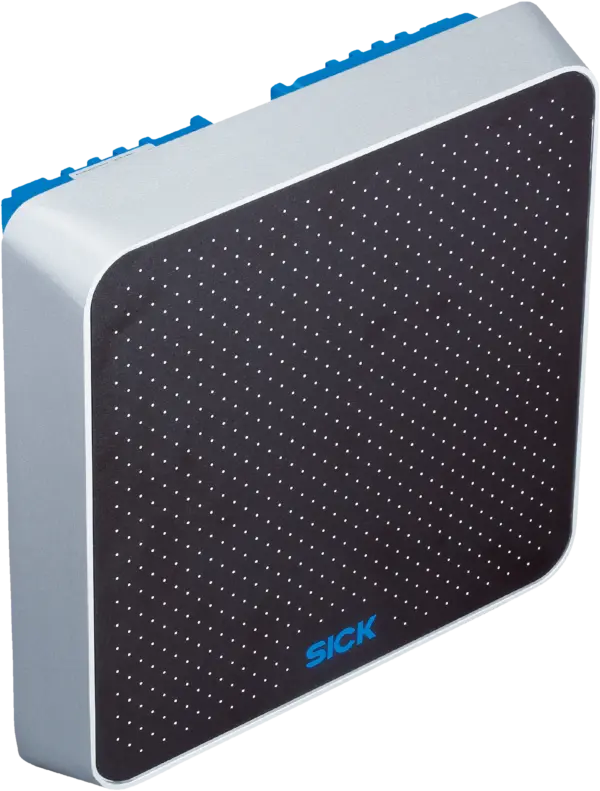

Sick RFA630-000
Antennas | RFID antennas | RFA630-000 | Carrier frequency: 865 MHz … 868 MHz | Dimensions (L x W x H): 238.6 mm x 238.6 mm x 64.3 mm
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Antennas | RFID antennas | RFA630-000 | Carrier frequency: 865 MHz … 868 MHz | Dimensions (L x W x H): 238.6 mm x 238.6 mm x 64.3 mm
Specification
Features
| Product segment | Antennas, RFID, RFID |
|---|---|
| Product | RFID antennas |
| Description | Industrial RFID UHF antenna, carrier frequency 865Â ... 868Â MHz (Europe, India, Russia, South Africa, Saudi Arabia), TNC reverse |
| Version | Long Range |
| Frequency band | UHF (860 MHz ... 960 MHz) |
| Carrier frequency | 865 MHz ... 868 MHz |
| Output power | Max. 2 W ERP |
| Polarization | Circular polarised / RHCP |
| Voltage standing wave ratio | <Â 1.2 |
| Gain | Typ. 9 dBic |
| 3 dB aperture angle | Typ. < 72° |
| Housing material | AluminumPolycarbonat (front) |
| Enclosure rating | IP67 |
| Ambient operating temperature | â40 °C ... +60 °C |
| Storage temperature | â30 °C ... +70 °C |
| Permissible relative humidity | 95Â %, Non-condensing |
| Dimensions (W x H x L) | 238.6 mm x 64.3 mm x 238.6 mm |
| Weight | +Â 2,300Â g |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27280401 |
|---|---|
| ECLASS 5.1.4 | 27280401 |
| ECLASS 6.0 | 27280401 |
| ECLASS 6.2 | 27280401 |
| ECLASS 7.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 8.1 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 10.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ETIM 5.0 | EC002593 |
| ETIM 6.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| UNSPSC 16.0901 | 52161523 |
