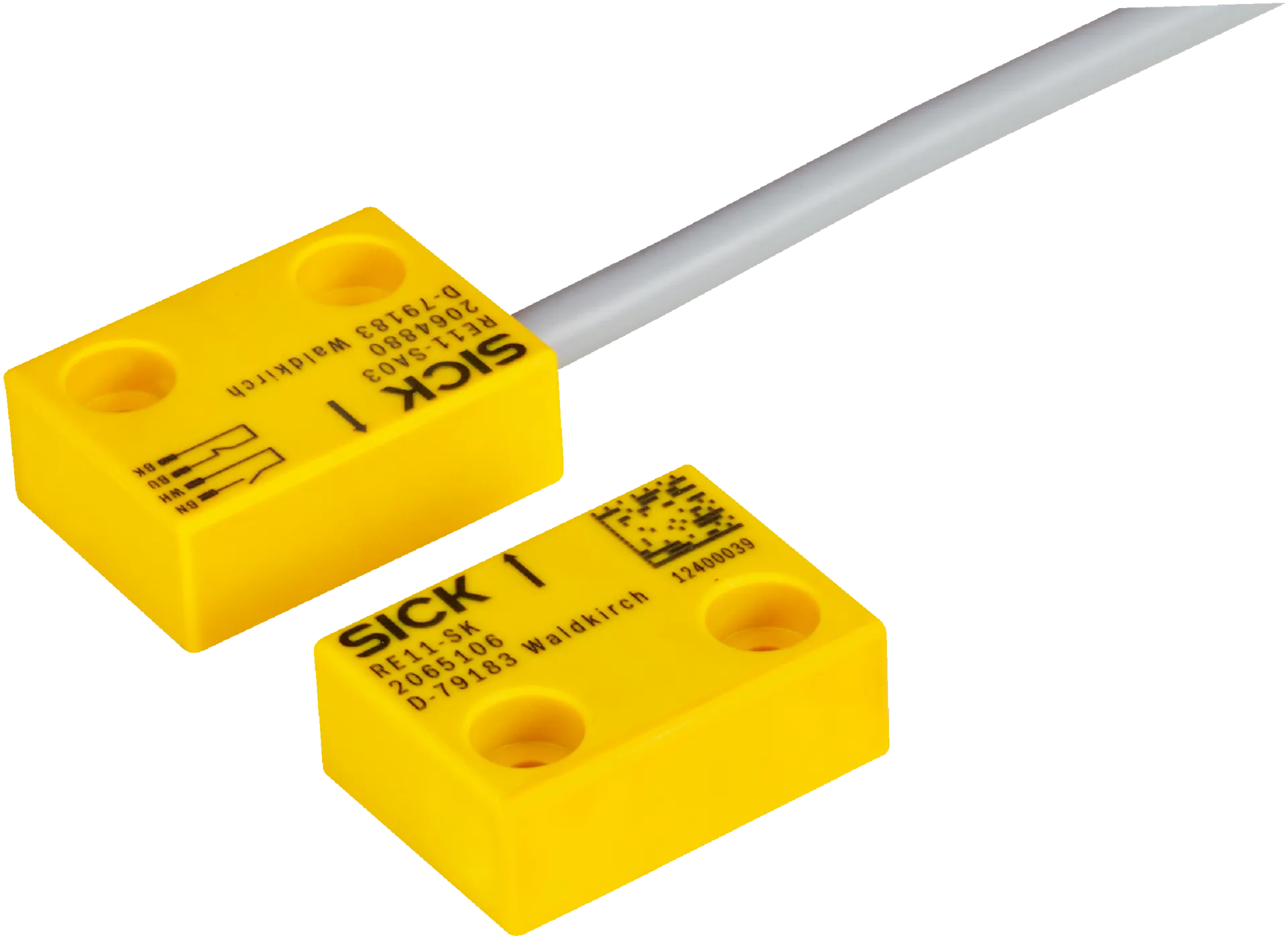

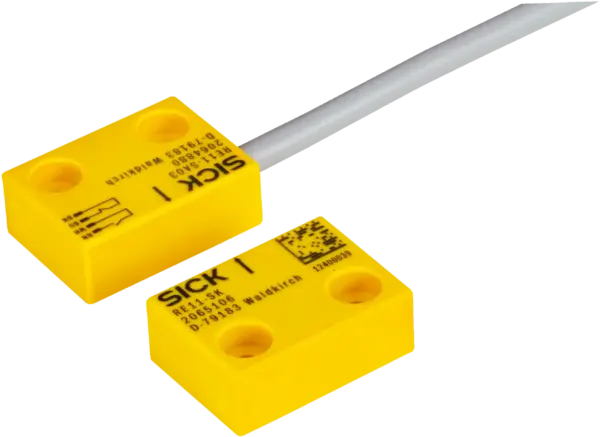

Sick RE11-SA05
Safety switches | RE1 | RE11-SA05 | Systemteil: Sensor with actuator | N/O contacts: 1 | N/C contacts: 1 | Signaling contacts: 0 | Connection type Detail: Cable | Length of cable: 5 m | Safe series co…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety switches | RE1 | RE11-SA05 | Systemteil: Sensor with actuator | N/O contacts: 1 | N/C contacts: 1 | Signaling contacts: 0 | Connection type Detail: Cable | Length of cable: 5 m | Safe series connection: None, only individual wiring (with diagnostics) | Status display: no
Specification
Features
| System part | Sensor with actuator |
|---|---|
| Sensor principle | Magnetic |
| N/O contacts | 1 |
| N/C contacts | 1 |
| Signaling contacts | 0 |
| Assured switch on distance Sao | 3Â mm |
| Assured switch off distance Sar | 12Â mm |
| Active sensor surfaces | 1 |
| Actuation directions | 5 |
Safety-related parameters
| B10d parameter | 2 x 107 switching cycles (with small load) |
|---|---|
| Type | Type 4Â (ENÂ ISOÂ 14119) |
| Actuator coding level | Low coding level (ENÂ ISOÂ 14119) |
| Safe state in the event of a fault | The switch has no internal fault detection and is unable to assume a safe state in the event of a fault. Fault detection is performed by the connected safety-related logic unit. |
Functions
| Safe series connection | None, only individual wiring (with diagnostics) |
|---|
Interfaces
| Connection type | Cable |
|---|---|
| Length of cable | 5Â m |
| Cable diameter | 5.8Â mm |
| Conductor cross section | 0.25 mm² |
| Bend radius (with fixed installation) | > 12Â x cable diameter |
| Bend radius (with moving cable) | > 15Â x cable diameter |
| Cable material | PVC |
| Conductor material | Copper |
Electronics
| Type of output | Reed contacts |
|---|---|
| Switching voltage | ≤ 30 V DC |
| Switching current | ≤ 400 mA |
Mechanics
| Design | Rectangular |
|---|---|
| Dimensions (W x H x D) | 26 mm x 36 mm x 13 mm |
| Weight | 0.3Â kg |
| Housing material | VISTAL® |
Ambient data
| Enclosure rating | IP67 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | –30 °C ... +60 °C |
| Storage temperature | –30 °C ... +60 °C |
| Vibration resistance | 10 Hz ... 55 Hz, 1 mm (EN 60947-5-3) |
| Shock resistance | 30Â g, 11Â ms (ENÂ 60947-5-3) |
Classifications
| ECLASS 5.0 | 27272402 |
|---|---|
| ECLASS 5.1.4 | 27272402 |
| ECLASS 6.0 | 27272402 |
| ECLASS 6.2 | 27272402 |
| ECLASS 7.0 | 27272402 |
| ECLASS 8.0 | 27272402 |
| ECLASS 8.1 | 27272402 |
| ECLASS 9.0 | 27272402 |
| ECLASS 10.0 | 27272402 |
| ECLASS 11.0 | 27272402 |
| ECLASS 12.0 | 27274401 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122205 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| UK-Type-Examination approval | ✔ |
| cULus certificate | ✔ |
| TÜV approval | ✔ |
| TÜV approval annex | ✔ |
| S Mark certificate | ✔ |
| EC-Type-Examination approval | ✔ |
