Description

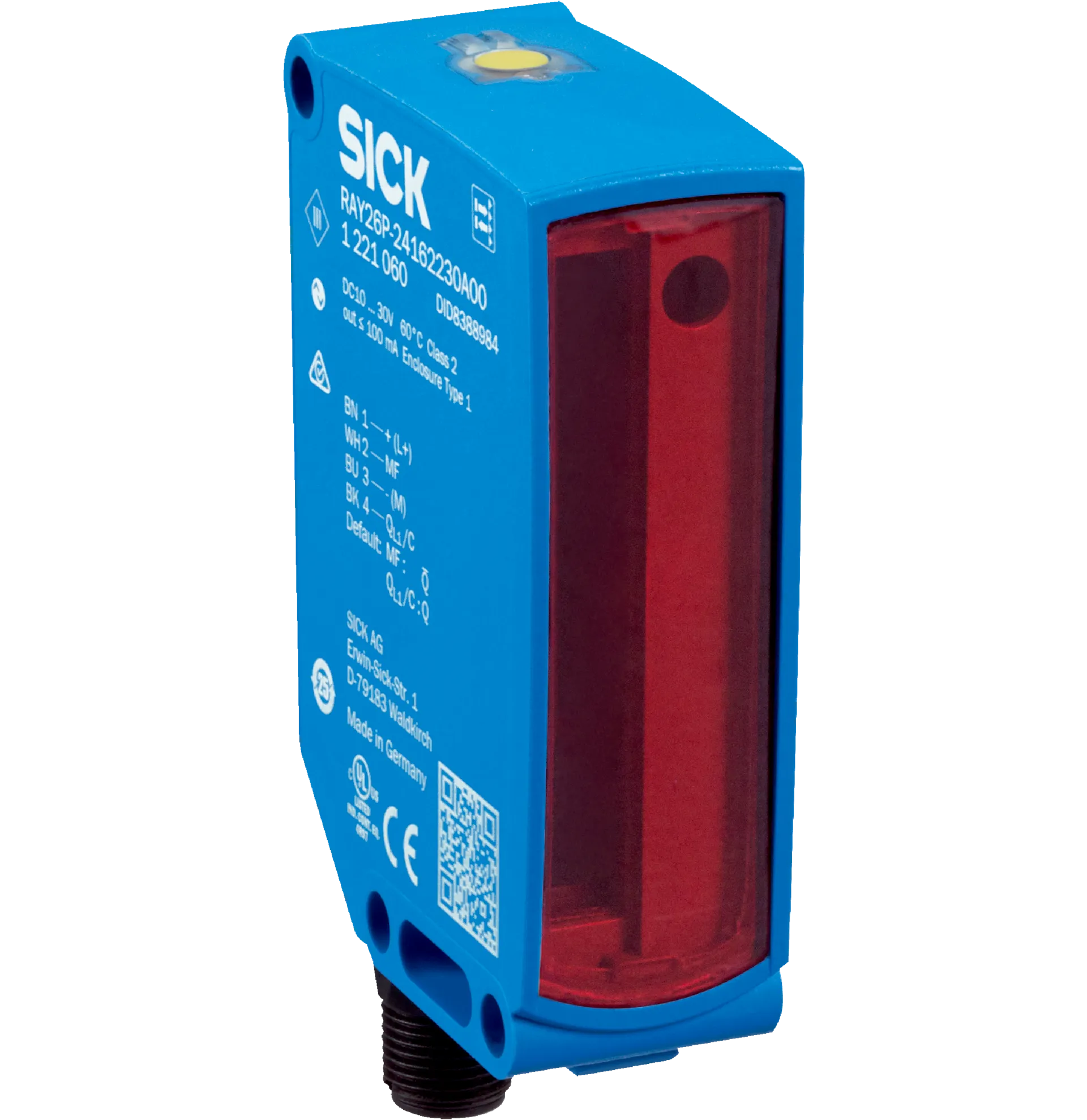

Photoelectric sensors | RAY26 Reflex Array | RAY26P-34862930A00 | Minimum object size: 10 mm | Detection height: 55 mm | Sensing range max.: 0 m … 4.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics), Reflex Array | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M12 male connector, 4-pin, 270 mm | Light source: PinPoint LED | Adjustment: Teach-in button, IO-Link | Communication interface: IO-Link
Specification
Features
| Functional principle | Photoelectric retro-reflective sensor |
|---|---|
| Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics), Reflex Array |
| Dimensions (W x H x D) | 24.6 mm x 82.5 mm x 53.3 mm |
| Housing design (light emission) | Rectangular |
| Minimum object size | 10Â mm, position-independent detection within the light array |
| Detection height | 55Â mm |
| Sensing range max. | 0 m ... 4.5 m 1) 2) |
| Distance of the sensor to reflector | ⥠0 m |
| Conveyor belt suppression | Manual |
| Type of light | Visible red light |
| Light source | PinPoint LEDÂ 3) |
| Light spot size (distance) | 55 mm x 9 mm (1 m) |
| Wave length | 635Â nm |
| Adjustment | BluePilot: Teach-in, IO-Link |
| Pin 2Â configuration | External Input (test), Teach-in, switching signal |
| AutoAdapt | â |
| Special applications | Detecting objects with position tolerances, Detecting perforated objects, Detecting uneven, shiny objects, Detecting transparent objects, Detecting flat objects |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | <Â 5Â Vpp |
| Current consumption | 25Â mAÂ 2)40Â mAÂ 3) |
| Switching output | PNPÂ 4) |
| Output: QL1Â /Â C | Switching output or IO-Link mode |
| Output function | Factory setting: Pin 2Â /Â white (MF): PNP normally open (dark switching), Pin 4Â /Â black (QL1Â /Â C): PNP normally closed (light switching), IO-Link |
| Switching mode | Light/dark switching |
| Switching mode selector | Via IO-Link |
| Signal voltage PNP HIGH/LOW | Approx. VS â 2.5Â V / 0Â V |
| Output current Imax. | â¤Â 100 mA |
| Response time | â¤Â 3 ms 5) |
| Switching frequency | 170 Hz 6) |
| Connection type | Cable with M12 male connector, 4-pin, 270 mm 7) |
| Cable material | Plastic, PVC |
| Circuit protection | AÂ 8)BÂ 9)CÂ 10)DÂ 11) |
| Protection class | III |
| Weight | 100Â g |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66IP67 |
| Ambient operating temperature | â40 °C ... +60 °C 12) 13) |
| Ambient temperature, storage | â40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
Safety-related parameters
| MTTFD | 709Â years |
|---|---|
| DCavg | 0Â % |
Communication interface
| Communication interface | IO-Link V1.1 |
|---|---|
| Communication Interface detail | COM2 (38,4Â kBaud) |
| Cycle time | 2.3Â ms |
| Process data length | 16Â Bit |
| Process data structure | Bit 0Â = switching signal QL1Bit 1Â = switching signal QL2Bit 2Â ... 15Â = empty |
| VendorID | 26 |
| DeviceID HEX | 0x800219 |
| DeviceID DEC | 8389145 |
Smart Task
| Smart Task name | Base logics |
|---|---|
| Logic function | DirectANDORWindowHysteresis |
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot) |
| Inverter | Yes |
| Switching frequency | SIO Direct: 170 Hz 1)SIO Logic: 170 Hz 2)IOL: 170 Hz 3) |
| Response time | SIO Direct: 3 ms 1)SIO Logic: 3 ms 2)IOL: 3 ms 3) |
| Repeatability | SIO Direct: 1,5 ms 1)SIO Logic: 1,5 ms 2)IOL: 1,5 ms 3) |
| Switching signal QL1 | Switching output |
| Switching signal QL2 | Switching output |
Diagnosis
| Device status | Yes |
|---|---|
| Quality of teach | Yes |
| Quality of run | Yes, Contamination display |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Photobiological safety (DIN EN 62471) certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270902 |
|---|---|
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
