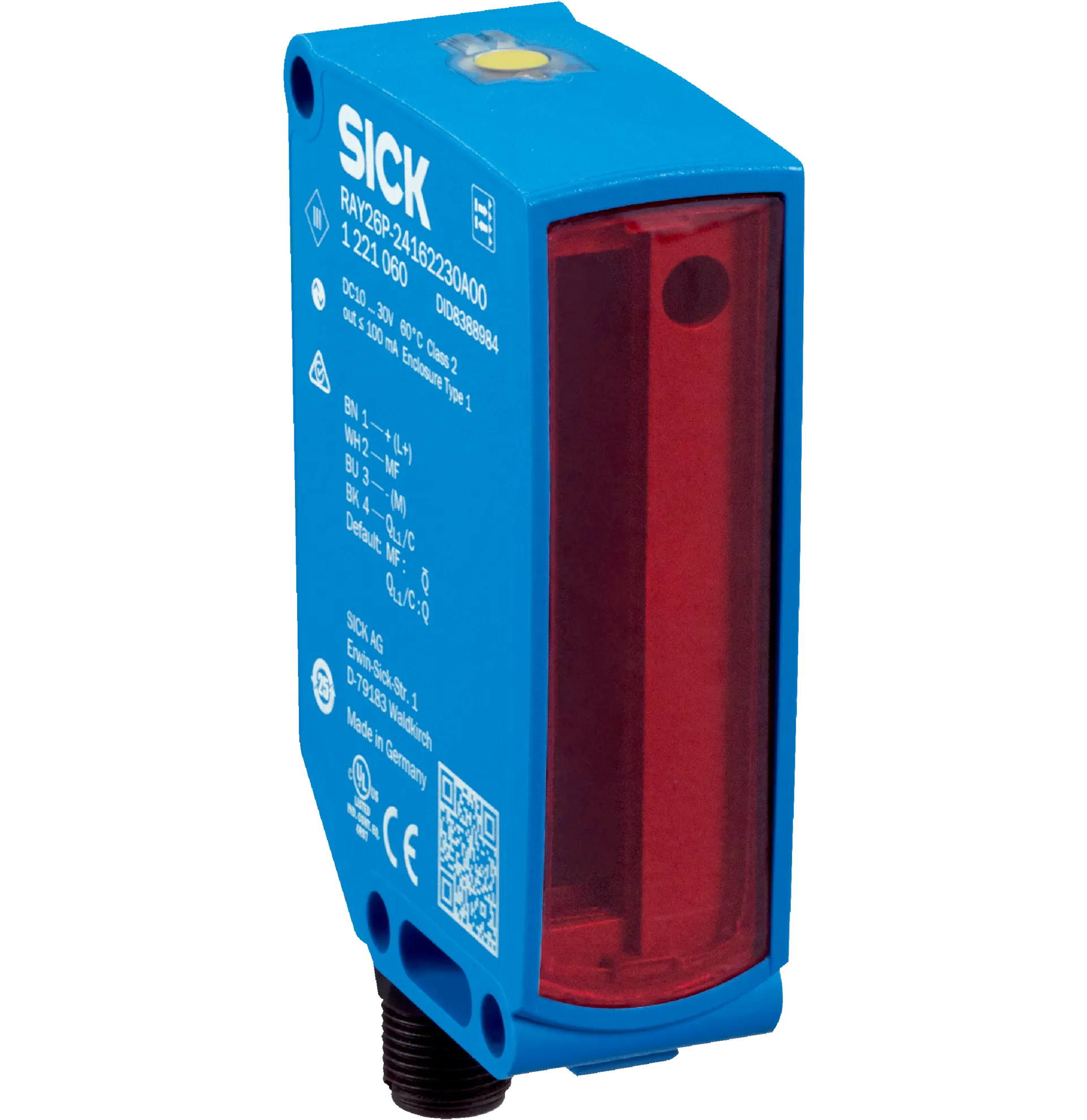

Sick RAY26P-1H161930A00 - Image 1

Fast delivery within 72 Hours

Sick RAY26P-1H161930A00

Photoelectric sensors | RAY26 Reflex Array | RAY26P-1H161930A00 | Minimum object size: 10 mm | Detection height: 55 mm | Sensing range max.: 0 m … 4.5 m | Functional principle: Photoelectric retro-r…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Photoelectric sensors | RAY26 Reflex Array | RAY26P-1H161930A00 | Minimum object size: 10 mm | Detection height: 55 mm | Sensing range max.: 0 m … 4.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics), Reflex Array | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: PinPoint LED | Adjustment: Teach-in button, IO-Link | Communication interface: IO-Link

Specification

Features

Functional principlePhotoelectric retro-reflective sensor
Functional principle detailWithout reflector minimum distance (autocollimation/coaxial optics), Reflex Array
Dimensions (W x H x D)24.6 mm x 82.5 mm x 53.3 mm
Housing design (light emission)Rectangular
Minimum object size10Â mm, position-independent detection within the light array
Detection height55Â mm
Sensing range max.0 m ... 4.5 m 1) 2)
Distance of the sensor to reflector≥ 0 m
Conveyor belt suppressionManual
Type of lightVisible red light
Light sourcePinPoint LEDÂ 3)
Light spot size (distance)55 mm x 9 mm (1 m)
Wave length635Â nm
AdjustmentBluePilot: Teach-in, IO-Link
Pin 2Â configurationExternal Input (test), Teach-in, switching signal
AutoAdapt✔
Special applicationsDetecting objects with position tolerances, Detecting perforated objects, Detecting uneven, shiny objects, Detecting transparent objects, Detecting flat objects

Mechanics/electronics

Supply voltage UB10Â VÂ DCÂ ... 30Â VÂ DCÂ 1)
Ripple<Â 5Â Vpp
Current consumption25Â mAÂ 2)40Â mAÂ 3)
Switching outputPush-pull: PNP/NPNÂ 4)
Output: QL1Â /Â CSwitching output or IO-Link mode
Output functionFactory setting: Pin 2Â /Â white (MF): NPN normally open (dark switching), PNP normally closed (light switching), Pin 4Â /Â black (QL1Â /Â C): NPN normally closed (light switching), PNP normally open (dark switching), IO-Link
Switching modeLight/dark switching
Switching mode selectorVia IO-Link
Signal voltage PNP HIGH/LOWApprox. VS – 2.5 V / 0 V
Signal voltage NPN HIGH/LOWApprox. VS / < 2.5Â V
Output current Imax.≤ 100 mA
Response time≤ 3 ms 5)
Switching frequency170 Hz 6)
Connection typeCable, 4-wire, 2 m 7)
Cable materialPlastic, PVC
Circuit protectionAÂ 8)BÂ 9)CÂ 10)DÂ 11)
Protection classIII
Weight130Â g
Housing materialPlastic, VISTAL®
Optics materialPlastic, PMMA
Enclosure ratingIP66IP67
Ambient operating temperature–40 °C ... +60 °C 12) 13)
Ambient temperature, storage–40 °C ... +75 °C
UL File No.NRKH.E181493 & NRKH7.E181493

Safety-related parameters

MTTFD709Â years
DCavg0Â %

Communication interface

Communication interfaceIO-Link V1.1
Communication Interface detailCOM2 (38,4Â kBaud)
Cycle time2.3Â ms
Process data length16Â Bit
Process data structureBit 0Â = switching signal QL1Bit 1Â = switching signal QL2Bit 2Â ... 15Â = empty
VendorID26
DeviceID HEX0x800219
DeviceID DEC8389145

Smart Task

Smart Task nameBase logics
Logic functionDirectANDORWindowHysteresis
Timer functionDeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot)
InverterYes
Switching frequencySIO Direct: 170 Hz 1)SIO Logic: 170 Hz 2)IOL: 170 Hz 3)
Response timeSIO Direct: 3 ms 1)SIO Logic: 3 ms 2)IOL: 3 ms 3)
RepeatabilitySIO Direct: 1,5 ms 1)SIO Logic: 1,5 ms 2)IOL: 1,5 ms 3)
Switching signal QL1Switching output
Switching signal QL2Switching output

Diagnosis

Device statusYes
Quality of teachYes
Quality of runYes, Contamination display

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
cULus certificate✔
Photobiological safety (DIN EN 62471) certificate✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔

Classifications

ECLASS 5.027270902
ECLASS 5.1.427270902
ECLASS 6.027270902
ECLASS 6.227270902
ECLASS 7.027270902
ECLASS 8.027270902
ECLASS 8.127270902
ECLASS 9.027270902
ECLASS 10.027270902
ECLASS 11.027270902
ECLASS 12.027270902
ETIM 5.0EC002717
ETIM 6.0EC002717
ETIM 7.0EC002717
ETIM 8.0EC002717
UNSPSC 16.090139121528
