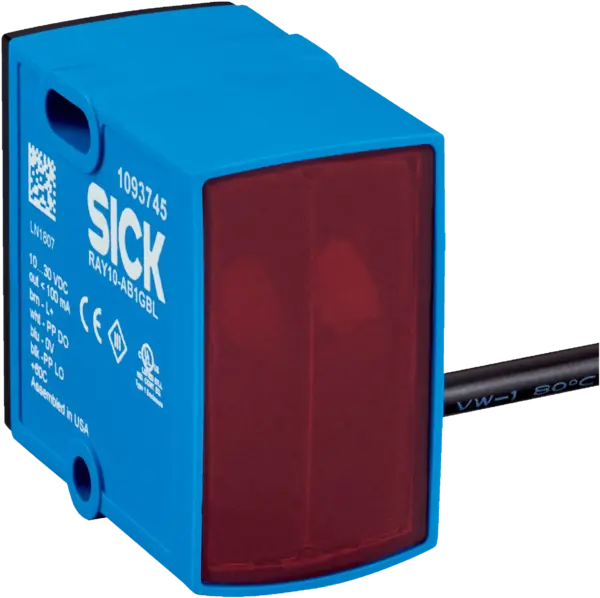

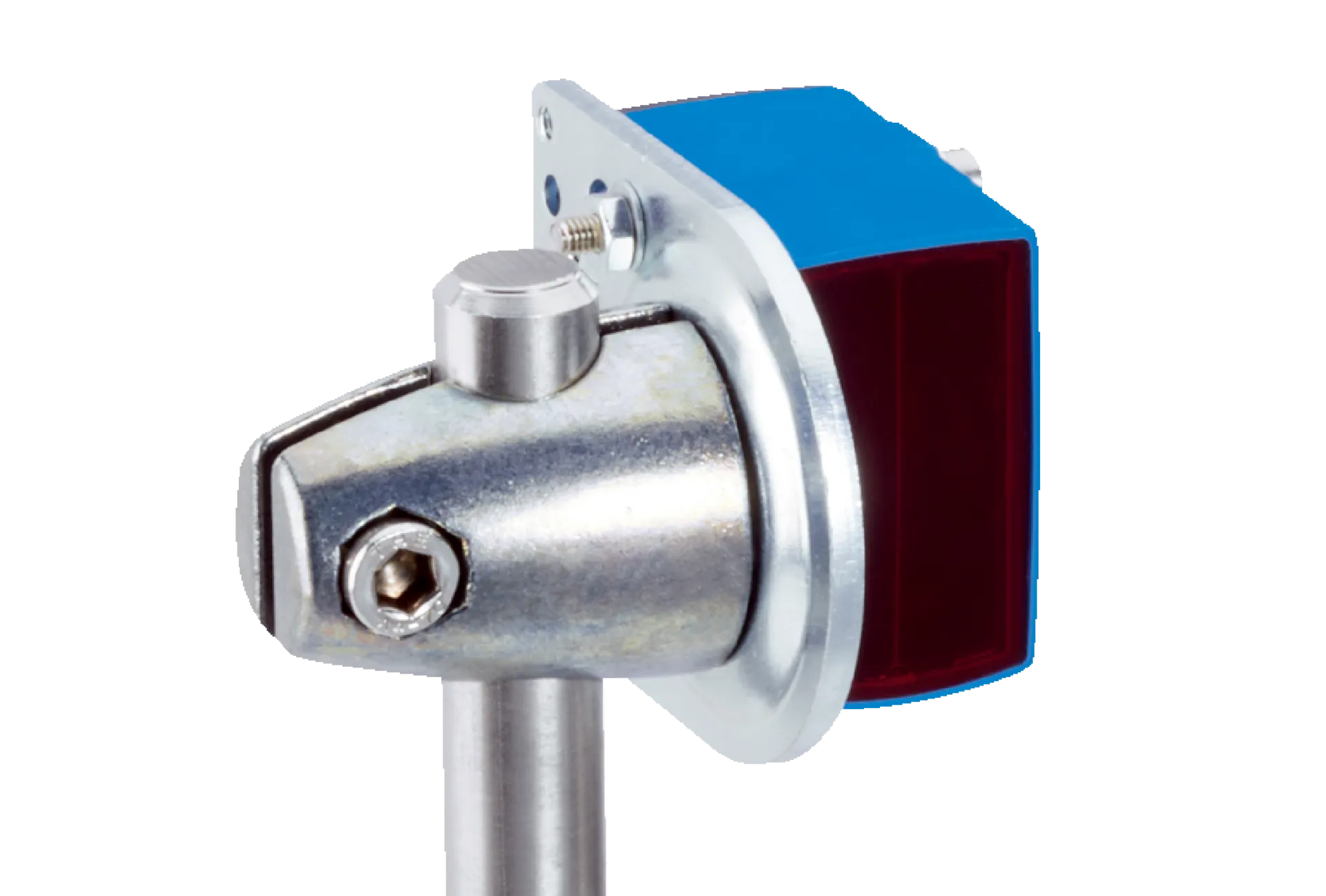

Sick RAY10-AB1GBL
Photoelectric sensors | RAY10 Reflex Array | RAY10-AB1GBL | Minimum object size: 5 mm | Detection height: 25 mm | Sensing range max.: 0 m … 1.5 m | Functional principle: Photoelectric retro-reflecti…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | RAY10 Reflex Array | RAY10-AB1GBL | Minimum object size: 5 mm | Detection height: 25 mm | Sensing range max.: 0 m … 1.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system), Reflex Array | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with flying leads, 4-wire, 2 m | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: –
Specification
Features
| Functional principle | Photoelectric retro-reflective sensor |
|---|---|
| Functional principle detail | With minimum distance to reflector (dual lens system), Reflex Array |
| Dimensions (W x H x D) | 21.5 mm x 36 mm x 37.7 mm |
| Housing design (light emission) | Rectangular |
| Minimum object size | 5Â mm, position-independent detection within the light array |
| Detection height | 25Â mm |
| Sensing range max. | 0 m ... 1.5 m 1) |
| Distance of the sensor to reflector | 0.3 m ... 1.5 m 1) |
| Type of light | Visible red light |
| Light source | PinPoint LEDÂ 2) |
| Light spot size (distance) | 37 mm x 12 mm (1 m) |
| Wave length | 635Â nm |
| Adjustment | Potentiometer |
| Special applications | Detecting transparent objects, Detecting perforated objects, Detecting uneven, shiny objects, Detecting objects with position tolerances, Detecting flat objects |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | <Â 5Â Vpp |
| Current consumption | 30Â mAÂ 2) |
| Switching output | Push-pull: PNP/NPNÂ 3) |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | Approx. VS â 2.5Â V / 0Â V |
| Signal voltage NPN HIGH/LOW | Approx. VS / < 2.5Â V |
| Output current Imax. | â¤Â 100 mA |
| Response time | â¤Â 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Cable with flying leads, 4-wire, 2 m 6) |
| Cable material | Plastic, PVC |
| Conductor cross section | 0.13 mm² |
| Cable diameter | ÃÂ 3.6Â mm |
| Circuit protection | AÂ 7)BÂ 8)CÂ 9)DÂ 10) |
| Protection class | III |
| Weight | 130Â g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | â40 °C ... +60 °C 11) |
| Ambient temperature, storage | â40 °C ... +70 °C |
| UL File No. | NRKH.E189383 & NRKH7.E189383 |
Safety-related parameters
| MTTFD | 634Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Certificates
| EU declaration of conformity | â |
|---|---|
| ACMA declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270902 |
|---|---|
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
