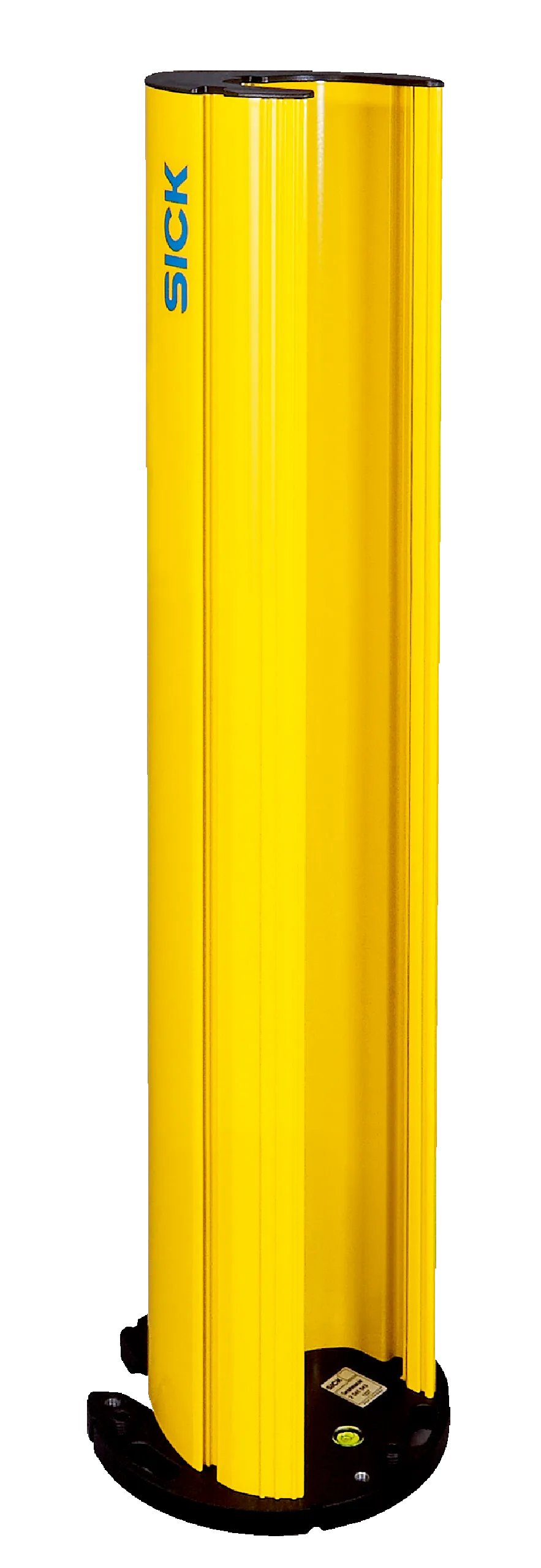

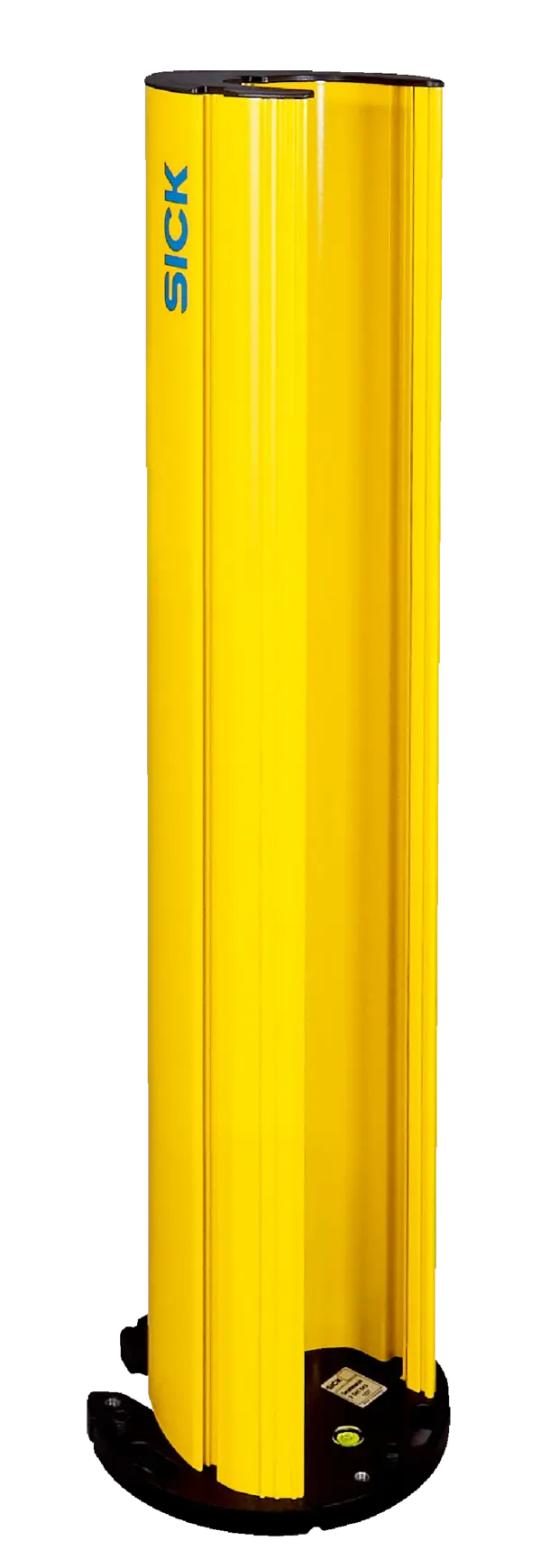

Sick PU3H15-00000000
Mounting systems | Device columns | PU3H15-00000000 | Model: PU3 device columns with two externally located mounting grooves | Column height: 1,570 mm | Description: Robust device column with two exte…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mounting systems | Device columns | PU3H15-00000000 | Model: PU3 device columns with two externally located mounting grooves | Column height: 1,570 mm | Description: Robust device column with two external mounting slots, maximum installation length 1,550 mm, column height 1,570 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,500 mm | Suitable for C2000, C4000 and M4000 Curtain safety light curtain: Protective field height ≤ 1,350 mm | Suitable for deTem safety light-beam sensor: Any | Suitable for M2000 and M4000 safety light-beam sensor: Any | Items supplied: PU3 device column with pre-assembled base plateMounting instructions for download
Specification
Features
| Description | Robust device column with two external mounting slots, maximum installation length 1,550Â mm, column height 1,570Â mmPU3 protective device column for mounting suitable safety light curtains and safety light-beam sensors.Protects the devices from mechanical influences from three sides. |
|---|---|
| Mounting system type | Mechanical anchoring to the floor |
| Items supplied | PU3 device column with pre-assembled base plateMounting instructions for download |
| Column height | 1,570Â mm |
| deTec safety light curtain | Protective field height ≤ 1,500 mm |
| C2000, C4000, M4000 Curtain safety light curtain | Protective field height ≤ 1,350 mm |
| deTem safety light-beam sensor | Any |
| M2000, M4000 safety light-beam sensor | Any |
| FlexFix | ✔ |
| QuickFix | ✔ |
| Flat-Mount | ✔ |
| Swivel-Mount | ✔ |
| Omega bracket | ✔ |
| Additional options | Enables additional accessories, such as muting arms, to be installed. |
Mechanics
| Column profile | Aluminum (powder-coating) |
|---|---|
| Base plate | Aluminum (powder-coating) |
| End cap | ABS |
| Dimensions | See dimensional drawing |
| L1 | 1,550 mm 1) |
| L2 | 1,570 mm 2) |
| Cross-section of column profile | 138.4 mm x 134.7 mm |
| Diameter of base plate | 180Â mm |
| Weight | 10.45Â kg |
Classifications
| ECLASS 5.0 | 27279202 |
|---|---|
| ECLASS 5.1.4 | 27279202 |
| ECLASS 6.0 | 27279202 |
| ECLASS 6.2 | 27279202 |
| ECLASS 7.0 | 27279202 |
| ECLASS 8.0 | 27279202 |
| ECLASS 8.1 | 27279202 |
| ECLASS 9.0 | 27273701 |
| ECLASS 10.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ETIM 5.0 | EC001941 |
| ETIM 6.0 | EC001941 |
| ETIM 7.0 | EC001941 |
| ETIM 8.0 | EC001941 |
| UNSPSC 16.0901 | 39111609 |
