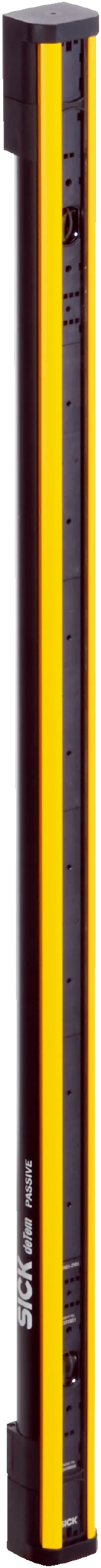

Sick PSN01-2501
Safety light-beam sensors | deTem | PSN01-2501 | Product version: deTem4 A/P | Functional principle: Active/passive | System part: Passive unit | Application: Normal industrial environment | Functions…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety light-beam sensors | deTem | PSN01-2501 | Product version: deTem4 A/P | Functional principle: Active/passive | System part: Passive unit | Application: Normal industrial environment | Functions: Protective operation, beam coding, restart interlock, external device monitoring (EDM), Differentiation between person and material | Scanning range: 3.2 m | Number of beams: 2 | Beam separation: 500 mm | Integrated laser alignment aid: no | Enclosure rating: IP65, IP67 | Items supplied: Passive unit
Specification
Features
| Product version | deTem4 A/P |
|---|---|
| Application | Normal industrial environment |
| Functional principle | Active/passive |
| System part | Passive unit |
| Type of diversion | Fibre-optic deflection |
| Scanning range category | Low scanning range |
| Scanning range | 3.2Â m |
| Typical | 0.5 m ... 3.2 m |
| Number of beams | 2 |
| Beam separation | 500Â mm |
| Items supplied | Passive unit |
Mechanics
| Dimensions | See dimensional drawing |
|---|---|
| Housing cross-section | 30.7 mm x 34 mm |
| Housing | Aluminum extruded profile |
| Front screen | Polycarbonate, scratch-resistant coating |
| Weight | + 520 g (± 50 g) |
Ambient data
| Enclosure rating | IP65 (IECÂ 60529)IP67 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | –30 °C ... +55 °C |
| Storage temperature | –30 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 … 150 Hz, 3,5 mm / 1 g (EN 60068-2-6) |
| Shock resistance | 15Â g / 6Â ms (ENÂ 60068-2-27) |
| Class | 3M4 (IECÂ TR 60721-4-3) |
Classifications
| ECLASS 5.0 | 27272703 |
|---|---|
| ECLASS 5.1.4 | 27272703 |
| ECLASS 6.0 | 27272703 |
| ECLASS 6.2 | 27272703 |
| ECLASS 7.0 | 27272703 |
| ECLASS 8.0 | 27272703 |
| ECLASS 8.1 | 27272703 |
| ECLASS 9.0 | 27272703 |
| ECLASS 10.0 | 27272703 |
| ECLASS 11.0 | 27272703 |
| ECLASS 12.0 | 27272703 |
| ETIM 5.0 | EC001832 |
| ETIM 6.0 | EC001832 |
| ETIM 7.0 | EC001832 |
| ETIM 8.0 | EC001832 |
| UNSPSC 16.0901 | 46171620 |
