Wire draw encoders | HighLine | PRF08-E1AM0340 | Measuring range: 0 m … 3 m | Communication interface: Incremental / HTL / Push pull | Supply voltage: 10 V … 32 V | Connection type: Male connector…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

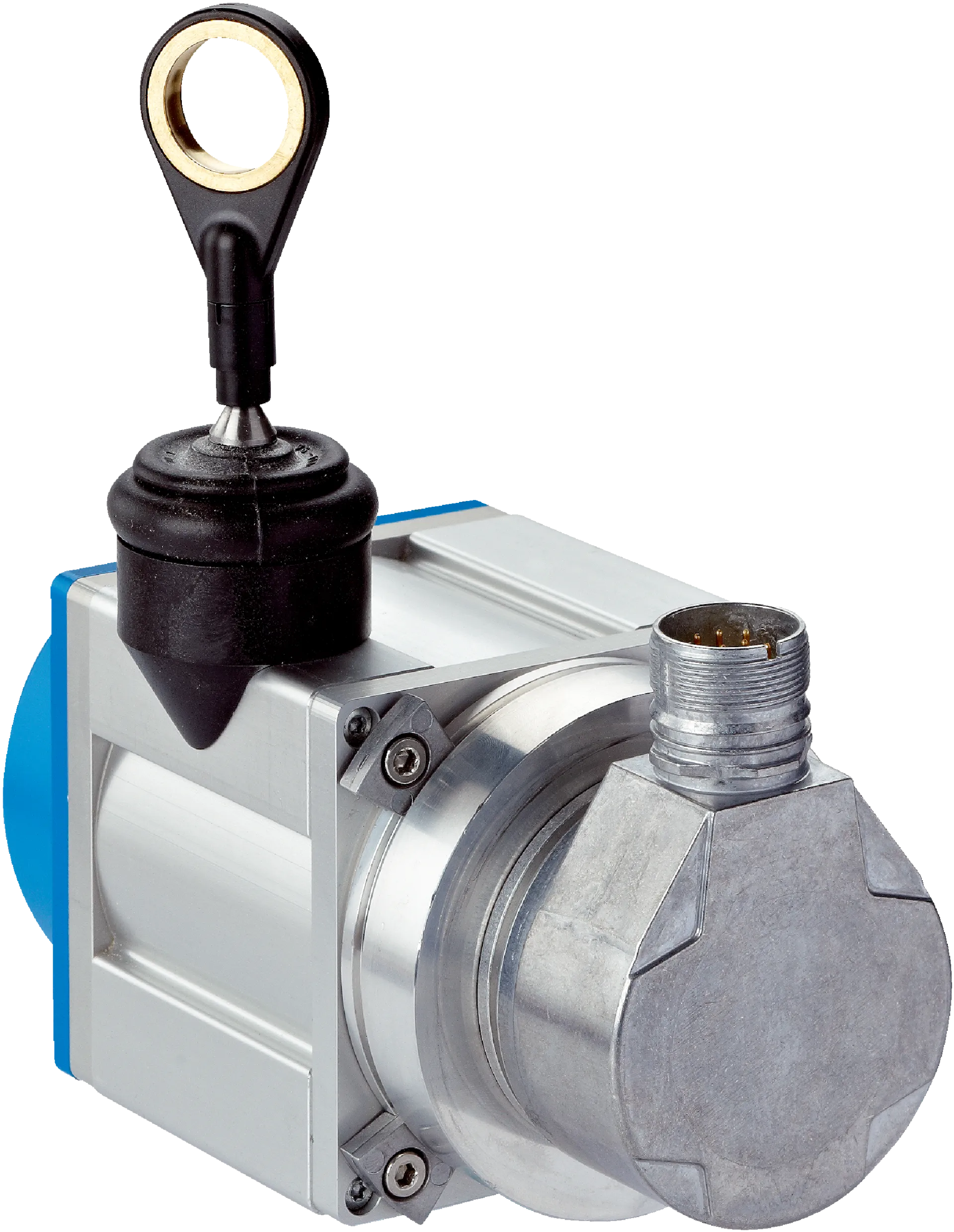

Wire draw encoders | HighLine | PRF08-E1AM0340 | Measuring range: 0 m … 3 m | Communication interface: Incremental / HTL / Push pull | Supply voltage: 10 V … 32 V | Connection type: Male connector, M23, 12-pin, radial | Mounted encoder: DFS60, DFS60B-S1MA10000, 1056866 | Mounted mechanic: MRA-F080-103D2, 6030125 | Programmable/configurable: yes
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 300Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Measurement range | 0 m ... 3 m |
|---|---|
| Encoder | Incremental encoders |
| Resolution (wire draw + encoder) | 0.03 mm 1) 2) |
| Repeatability | â¤Â 1 mm 3) |
| Linearity | ⤠± 2 mm 3) |
| Hysteresis | â¤Â 2 mm 3) |
Interfaces
| Communication interface | Incremental / HTL / Push pull |
|---|---|
| Programmable/configurable | â |
| Factory setting | The built-on DFS60 encoders are programmed to the specified number of lines and interface prior to delivery. The electrical interface (TTL/HTL) and the number of lines (up to max. 10,000Â lines) can be set in accordance with customer requirements with our programming devices for DFS60 encoders, which are available separately. |
Electronics
| Connection type | Male connector, M23, 12-pin, radial |
|---|---|
| Supply voltage | 10Â VÂ ... 32Â V |
| Power consumption | â¤Â 0.7 W (without load) |
Mechanics
| Weight | 1.8Â kg |
|---|---|
| Measuring wire material | Highly flexible stranded steel 1,4401Â stainless steel V4A |
| Measuring wire diameter | 1.35Â mm |
| Weight (measuring wire) | 7.1Â g/m |
| Housing material, wire draw mechanism | Aluminum (anodized), aluminum die cast (nickel-plated) |
| Spring return force | 6Â NÂ ... 14Â NÂ 1) |
| Length of wire pulled out per revolution | 200Â mm |
| Life of wire draw mechanism | Typ. 1,000,000 cycles 2) 3) |
| Actual wire draw length | 3.2Â m |
| Wire acceleration | 40 m/s² |
| Operating speed | 8Â m/s |
| Mounted encoder | DFS60, DFS60B-S1MA10000, 1056866 |
| Mounted mechanic | MRA-F080-103D2, 6030125 |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3 |
|---|---|
| Enclosure rating | IP64, mounted mechanicIP67, Encoder (IECÂ 60529)Â 1) |
| Operating temperature range | â30 °C ... +70 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270590 |
|---|---|
| ECLASS 5.1.4 | 27270590 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270590 |
| ECLASS 8.0 | 27270590 |
| ECLASS 8.1 | 27270590 |
| ECLASS 9.0 | 27270590 |
| ECLASS 10.0 | 27270613 |
| ECLASS 11.0 | 27270503 |
| ECLASS 12.0 | 27270503 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
