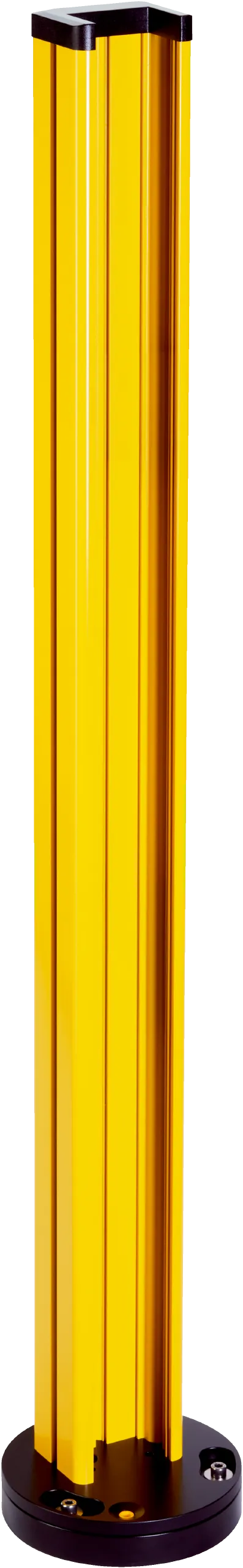

Sick PP4-C141110000000
Mounting systems | Device columns | PP4-C141110000000 | Model: PP4 Protective Column | Column height: 1,410.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,200 mm | Suitabl…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mounting systems | Device columns | PP4-C141110000000 | Model: PP4 Protective Column | Column height: 1,410.5 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,200 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateAlignment clampOperating instructions for download
Specification
Features
| Description | PP4 protective column for mounting suitable variants of the deTec and deTem product families.Protects the devices from mechanical influences from three sides. |
|---|---|
| Mounting system type | Mechanical anchoring to the floor |
| Items supplied | PP4 device column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateAlignment clampOperating instructions for download |
| Column height | 1,410.5Â mm |
| deTec safety light curtain | Protective field height â¤Â 1,200 mm |
| deTem safety light-beam sensor | Any |
| FlexFix | â |
| Flat-Mount | â 1) |
| Swivel-Mount | â 1) |
| Additional options | Enables additional accessories, such as muting arms, to be installed. |
| Muting sensor protection left (2140187) | â |
| Muting sensor protection right (2140186) | â |
| Muting arm adapter (2140086) | â |
| Height of first beam above ground | 200Â mm |
Functions
| Alignment | The complete alignment process involves leveling the base plate and rotating the alignment plate at the foot of the column. |
|---|---|
| Alignment aid mark (â45°, 0°, 45°) | â |
| Fine alignment wheel | â |
| Setscrews for leveling | â |
| Spirit level | â |
| Cable entry | â |
Mechanics
| Column profile | Aluminum (powder-coating) |
|---|---|
| Alignment plate | Aluminum (powder-coating) |
| Base plate | Aluminum (powder-coating) |
| Fine alignment wheel | PA6 |
| Alignment clamp | PA6 |
| End cap | ABS |
| Dimensions | See dimensional drawing |
| L1 | 1,350 mm 1) |
| L2 | 1,410.5 mm 2) |
| Cross-section of column profile | 101.6 mm x 81 mm |
| Diameter of base plate | 195Â mm |
| Weight | 6.83Â kg |
Ambient data
| Storage temperature | â30 °C ... +70 °C |
|---|
Classifications
| ECLASS 5.0 | 27279202 |
|---|---|
| ECLASS 5.1.4 | 27279202 |
| ECLASS 6.0 | 27279202 |
| ECLASS 6.2 | 27279202 |
| ECLASS 7.0 | 27279202 |
| ECLASS 8.0 | 27279202 |
| ECLASS 8.1 | 27279202 |
| ECLASS 9.0 | 27273701 |
| ECLASS 10.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ETIM 5.0 | EC001941 |
| ETIM 6.0 | EC001941 |
| ETIM 7.0 | EC001941 |
| ETIM 8.0 | EC001941 |
| UNSPSC 16.0901 | 39111609 |
