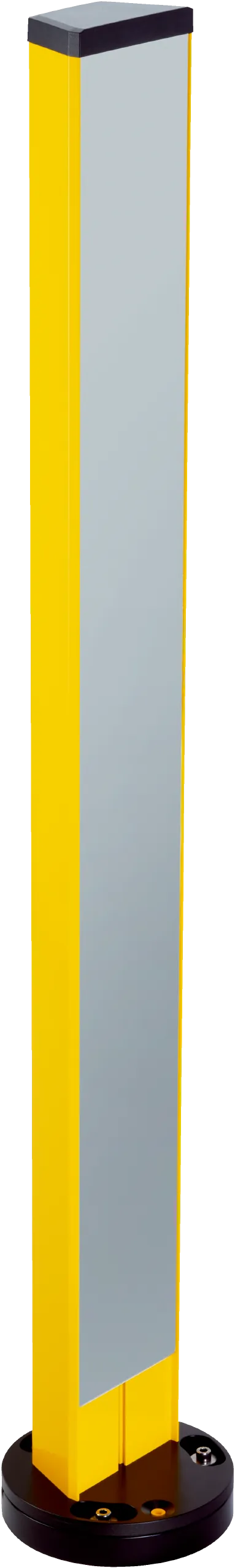

Sick PM4-A207110000000
Reflectors and optics | Mirror | PM4-A207110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Column hei…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reflectors and optics | Mirror | PM4-A207110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Column height: 2,074.5 mm | Mirror length: 2,002 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,800 mm | Suitable for deTem safety light-beam sensor: Any | Items supplied: PM4 mirror column with pre-assembled alignment plate and removable end cap, Base plate with spirit level, fine alignment wheel and setscrews, M8 screws and washers for mounting the alignment plate on the base plate, Operating instructions for download
Specification
Features
| Description | PM4 mirror column with fixed mirror for beam deflection.Allows multi-sided access protection. |
|---|---|
| Mounting system type | Mechanical anchoring to the floor |
| Items supplied | PM4 mirror column with pre-assembled alignment plate and removable end capBase plate with spirit level, fine alignment wheel and setscrewsM8 screws and washers for mounting the alignment plate on the base plateOperating instructions for download |
| Column height | 2,074.5Â mm |
| Mirror height | 2,002Â mm |
| Mirror width | 125Â mm |
| deTec safety light curtain | Protective field height ≤ 1,800 mm |
| deTem safety light-beam sensor | Any |
| Suitable for | Safety light curtainsSafety light-beam sensors |
| Type of diversion | Horizontal |
Functions
| Alignment | The complete alignment process involves leveling the base plate and rotating the alignment plate at the foot of the column. |
|---|---|
| Alignment aid mark (–45°, 0°, 45°) | ✔ |
| Fine alignment wheel | ✔ |
| Setscrews for leveling | ✔ |
| Spirit level | ✔ |
Mechanics
| Column profile | Aluminum (powder-coating) |
|---|---|
| Alignment plate | Aluminum (powder-coating) |
| Base plate | Aluminum (powder-coating) |
| Fine alignment wheel | PA6 |
| End cap | ABS |
| Dimensions | See dimensional drawing |
| L1 | 2,014 mm 1) |
| L2 | 2,074.5 mm 2) |
| L3 | 2,002 mm 3) |
| Cross-section of column profile | 136 mm x 75.7 mm |
| Diameter of base plate | 195Â mm |
| Weight | 11.99Â kg |
Classifications
| ECLASS 5.0 | 27279207 |
|---|---|
| ECLASS 5.1.4 | 27279207 |
| ECLASS 6.0 | 27279207 |
| ECLASS 6.2 | 27279207 |
| ECLASS 7.0 | 27279207 |
| ECLASS 8.0 | 27279207 |
| ECLASS 8.1 | 27279207 |
| ECLASS 9.0 | 27273605 |
| ECLASS 10.0 | 27273605 |
| ECLASS 11.0 | 27273605 |
| ECLASS 12.0 | 27273605 |
| ETIM 5.0 | EC002467 |
| ETIM 6.0 | EC002467 |
| ETIM 7.0 | EC002467 |
| ETIM 8.0 | EC002467 |
| UNSPSC 16.0901 | 39111609 |
