Sick PM3S13-00430040
Reflectors and optics | Mirror | PM3S13-00430040 | Model: Mirror columns with adjustable individual mirrors | Description: PM3S mirror column with adjustable separate mirrors for beam deflection. Allo…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

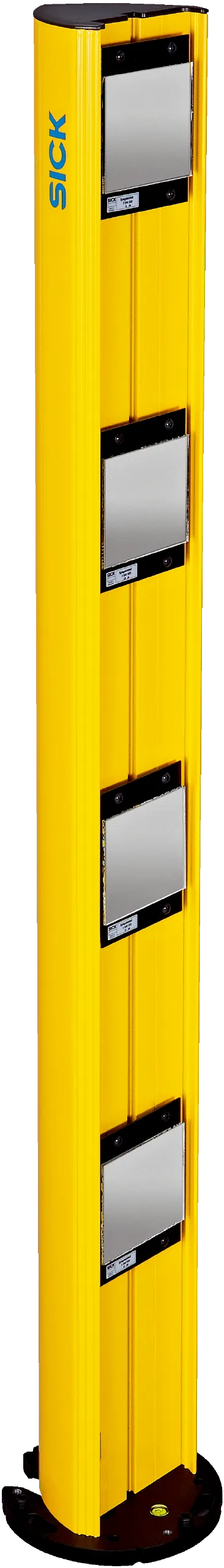

Reflectors and optics | Mirror | PM3S13-00430040 | Model: Mirror columns with adjustable individual mirrors | Description: PM3S mirror column with adjustable separate mirrors for beam deflection. Allows multi-sided access protection. | Column height: 1,285 mm | Mirror length: 90 mm
Specification
Features
| Mounting system type | Mechanical anchoring to the floor |
|---|---|
| Mirror height | 90Â mm |
| Mirror width | 100Â mm |
| Suitable for | Safety multibeam sensors |
| Suitable for number of beams | 4 |
| Suitable for beam separation | 300Â mm |
| Type of diversion | Horizontal |
Mechanics
| L1 | 300Â mm |
|---|---|
| L2 | 300Â mm |
| L3 | 300Â mm |
| L5 | 1,285Â mm |
| Weight | +Â 8,800Â g |
Classifications
| ECLASS 5.0 | 27279207 |
|---|---|
| ECLASS 5.1.4 | 27279207 |
| ECLASS 6.0 | 27279207 |
| ECLASS 6.2 | 27279207 |
| ECLASS 7.0 | 27279207 |
| ECLASS 8.0 | 27279207 |
| ECLASS 8.1 | 27279207 |
| ECLASS 9.0 | 27273605 |
| ECLASS 10.0 | 27273605 |
| ECLASS 11.0 | 27273605 |
| ECLASS 12.0 | 27273605 |
| ETIM 5.0 | EC002467 |
| ETIM 6.0 | EC002467 |
| ETIM 7.0 | EC002467 |
| ETIM 8.0 | EC002467 |
| UNSPSC 16.0901 | 39111609 |
