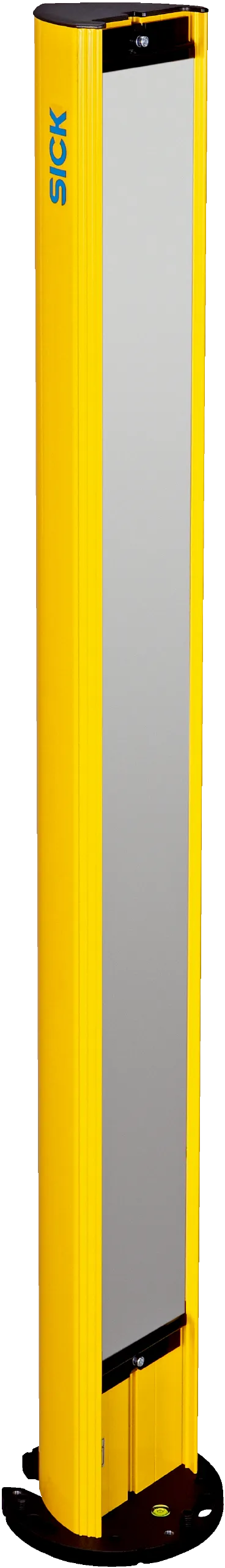

Sick PM3C13-00030000
Reflectors and optics | Mirror | PM3C13-00030000 | Model: PM3C mirror column with protective field height mirror | Description: PM3C mirror column with fixed mirror for beam deflection. Allows multi-s…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reflectors and optics | Mirror | PM3C13-00030000 | Model: PM3C mirror column with protective field height mirror | Description: PM3C mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Column height: 1,281.5 mm | Mirror length: 1,082 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,050 mm | Suitable for C2000, C4000 and M4000 Curtain safety light curtain: Protective field height ≤ 1,050 mm | Suitable for deTem safety light-beam sensor: Any | Suitable for M2000 and M4000 safety light-beam sensor: Any | Items supplied: PM3C mirror column with pre-assembled base plate
Specification
Features
| Description | PM3C mirror column with fixed mirror for beam deflection.Allows multi-sided access protection. |
|---|---|
| Mounting system type | Mechanical anchoring to the floor |
| Items supplied | PM3C mirror column with pre-assembled base plate |
| Column height | 1,281.5Â mm |
| Mirror height | 1,082Â mm |
| Mirror width | 125Â mm |
| deTec safety light curtain | Protective field height ≤ 1,050 mm |
| C2000, C4000, M4000 Curtain safety light curtain | Protective field height ≤ 1,050 mm |
| deTem safety light-beam sensor | Any |
| M2000, M4000 safety light-beam sensor | Any |
| Suitable for | Safety light curtainsSafety light-beam sensors |
| Type of diversion | Horizontal |
Mechanics
| Dimensions | See dimensional drawing |
|---|---|
| L1 | 1,082 mm 1) |
| L2 | 160 mm 2) |
| L5 | 1,281.5 mm 3) |
| Cross-section of column profile | 148 mm x 118 mm |
| Diameter of base plate | 180Â mm |
| Weight | 9.33Â kg |
Classifications
| ECLASS 5.0 | 27279207 |
|---|---|
| ECLASS 5.1.4 | 27279207 |
| ECLASS 6.0 | 27279207 |
| ECLASS 6.2 | 27279207 |
| ECLASS 7.0 | 27279207 |
| ECLASS 8.0 | 27279207 |
| ECLASS 8.1 | 27279207 |
| ECLASS 9.0 | 27273605 |
| ECLASS 10.0 | 27273605 |
| ECLASS 11.0 | 27273605 |
| ECLASS 12.0 | 27273605 |
| ETIM 5.0 | EC002467 |
| ETIM 6.0 | EC002467 |
| ETIM 7.0 | EC002467 |
| ETIM 8.0 | EC002467 |
| UNSPSC 16.0901 | 39111609 |
