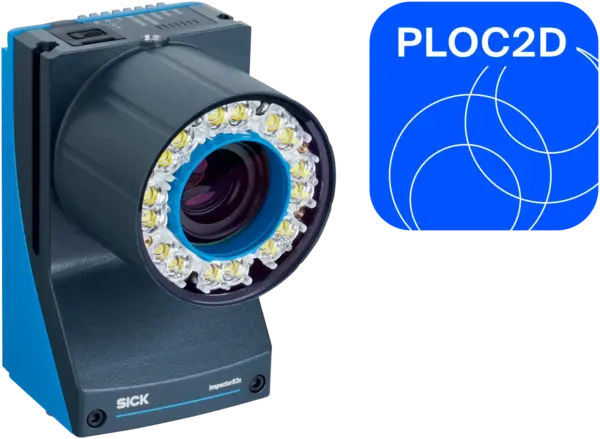

Sick PLOC2D-8305-12
Robot guidance systems | PLOC2D | PLOC2D-8305-12 | Localization accuracy: ± 0.5 px, ± 0.1° | Sensor resolution: 2,464 px x 2,048 px (5.1 MP) | Calibration: no | Items supplied: Camera, complete with i…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robot guidance systems | PLOC2D | PLOC2D-8305-12 | Localization accuracy: ± 0.5 px, ± 0.1° | Sensor resolution: 2,464 px x 2,048 px (5.1 MP) | Calibration: no | Items supplied: Camera, complete with integrated optics and illumination unit as well as installed PLOC2D software app | Dimensions, system (L x W x H): 63 mm x 85 mm x 108 mm
Specification
Features
| Product name | PLOC2D-FIX0021 |
|---|---|
| System features | Stand-alone sensor with easy teach, for localization of parts using 2D measurements |
| Example field of view | For details see field of view diagram |
| Internal lighting | LED, white, Visible, 6,500 K, ± 1,000 K |
| Optical focus | Adjustable focus (manually) |
| LED class | Risk group 1 (low risk, IEC 62471 (2006-07) / EN 62471 (2008-09)) |
| Localization principle | Shape comparison |
| Sensor resolution | 2,464 px x 2,048 px (5.1 MP) |
| Lens | C-mount |
| Focal length | 12Â mm |
| Technology | 2D snapshot, image analysis |
| Description | High resolution 2D localization of parts in medium/large fields of view at medium/long reading distances |
Mechanics/electronics
| Connection type | 1 x M12, 17-pin male connector, A-coded (Power, I/O)1 x M8, 4-pin female connector (external illumination)1 x M12, 8-pin female connector, X-coded (Gigabit Ethernet)2 x M12, 4-pin female connector, D-coded (fieldbus Ethernet) |
|---|---|
| Supply voltage | 24 V DC, ± 20 % |
| Power consumption | 21Â W |
| Housing material | Aluminum die cast |
| Window material | PMMA |
| Dimensions (L x W x H) | 63 mm x 85 mm x 108 mm |
| Weight | 545Â g, without lens |
| Enclosure rating | IP65 |
Performance
| Part localization time | 140Â ms for the first part in the image, < 60Â ms for additional parts in the image (typical) |
|---|---|
| Localization accuracy | ± 0.5 px, ± 0.1° |
| Output data | X, Y (mm), rotation around Z (degrees) |
Interfaces

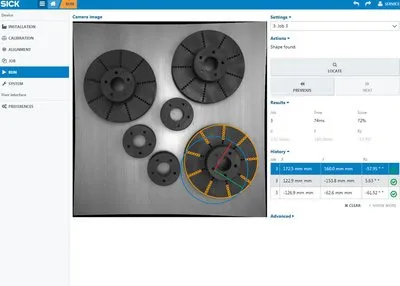

| Ethernet | â |
|---|---|
| Data transmission rate | 100Â Mbit/s |
| Protocol | TCP/IPÂ XML and CSV (robot), TCP/IPÂ (operator) |
| Electrical connection | M12 socket, 8-pin, X-coded |
| Electrical connection | Male connector M12, 17-pin |
| User interface | Web server |
| Data storage and retrieval | Image and data logging via microSD memory card and external FTP |
Ambient data
| Ambient temperature, operation | 0 °C ... +40 °C, permissible relative humidity: 0% ... 90% (non-condensing) |
|---|---|
| Ambient temperature, storage | â20 °C ... +70 °C 1) |
| Shock load | ENÂ 60068-2-6:2007, ENÂ 60068-2-64:2019 |
| Vibration load | ENÂ 60068-2-6:2008-02 |
General notes
| Items supplied | Camera, complete with integrated optics and illumination unit as well as installed PLOC2D software app |
|---|
Classifications
| ECLASS 5.0 | 27381501 |
|---|---|
| ECLASS 5.1.4 | 27381501 |
| ECLASS 6.0 | 27381590 |
| ECLASS 6.2 | 27381590 |
| ECLASS 7.0 | 27381590 |
| ECLASS 8.0 | 27381590 |
| ECLASS 8.1 | 27381590 |
| ECLASS 9.0 | 27381590 |
| ECLASS 10.0 | 27381590 |
| ECLASS 11.0 | 27381591 |
| ECLASS 12.0 | 27381591 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
