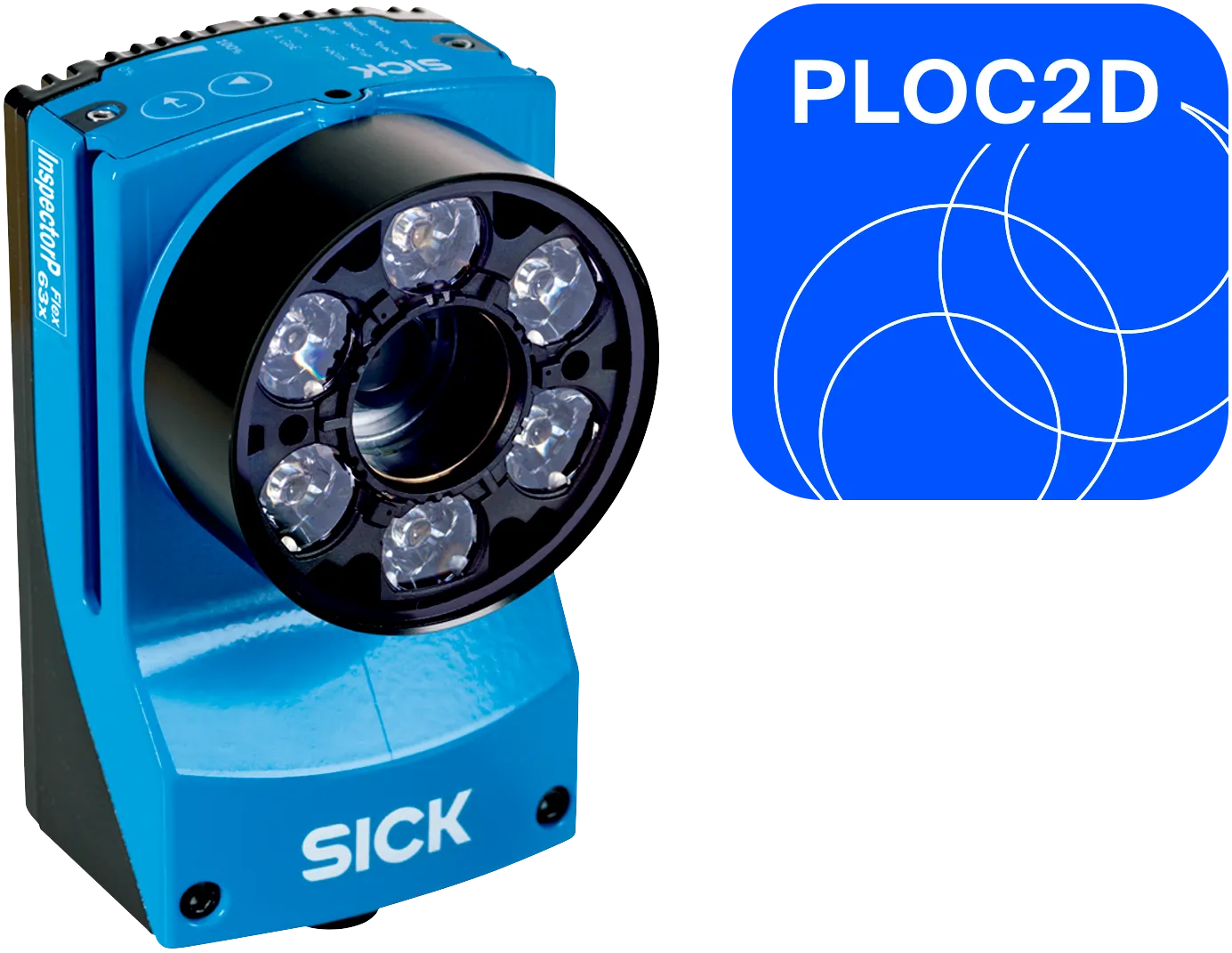

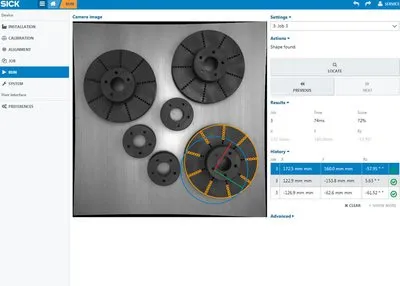

Sick PLOC2D-631C
Robot guidance systems | PLOC2D | PLOC2D-631C | Localization accuracy: ± 0.5 px, ± 0.1° | Sensor resolution: 1,280 px x 1,024 px (1.3 MP) | Optical format: 1/1.8″ | Calibration: no | Items supplied: C…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robot guidance systems | PLOC2D | PLOC2D-631C | Localization accuracy: ± 0.5 px, ± 0.1° | Sensor resolution: 1,280 px x 1,024 px (1.3 MP) | Optical format: 1/1.8″ | Calibration: no | Items supplied: Camera with C-mount, PLOC2D software, Not included with delivery: Optics and illumination | Dimensions, system (L x W x H): 108 mm x 63 mm x 46 mm (Housing only, without lens and optics protection hood)
Specification
Features
| Product name | PLOC2D-FLEX0008 |
|---|---|
| System features | Stand-alone sensor with easy teach, for localization of parts using 2D measurements |
| Laser class | 1, complies with 21Â CFR 1040.10Â except for the conformance according to âLaser Notice No. 50â from June 24, 2007Â (IECÂ 60825-1:2014)ENÂ 60825-1:2014 |
| Optical focus | Adjustable focus (manually) |
| Localization principle | Shape comparison |
| Sensor resolution | 1,280 px x 1,024 px (1.3 MP) |
| Lens | C-mount |
| Mounting method | Changeable |
| Optical format | 1/1.8" |
| Remark | To be ordered separately as accessories |
| Technology | 2D snapshot, image analysis |
| Description | Basic resolution 2D localization of parts in medium fields of view at medium reading distances |
Mechanics/electronics
| Connection type | 1 x M12, 17-pin male connector (serial, I/Os, voltage supply)1 x M8, 4-pin female connector (USB, not used)2 x M12, 8-pin socket (Gigabit Ethernet, only one connection used)1 x M12, 4-pin male connector (external illumination) |
|---|---|
| Supply voltage | 12 V ... 24 V, ± 20 % |
| Power consumption | 10 W, ± 20 % |
| Housing material | Aluminum die cast |
| Housing color | Light blue (RAL 5012) |
| Dimensions (L x W x H) | 108 mm x 63 mm x 46 mm (Housing only, without lens and optics protection hood) |
| Weight | 430Â g |
| Enclosure rating | IP65Â 1) |
Performance
| Part localization time | < 0.5Â seconds for the first part in the image and then < 100Â ms for additional parts in the image |
|---|---|
| Localization accuracy | ± 0.5 px, ± 0.1° |
| Output data | X, Y (mm), rotation around Z (degrees) |
Interfaces
| Ethernet | â |
|---|---|
| Data transmission rate | 100Â Mbit/s |
| Protocol | TCP/IP XML and CSV (robot), TCP/IP (operator)PROFINETEtherNet/IPâ¢FTP |
| Electrical connection | M12 male connector, 8-pin, x-coded |
| Electrical connection | Male connector M12, 17-pin |
| User interface | Web server |
| Data storage and retrieval | Image and data logging via microSD memory card and external FTP |
Ambient data
| Ambient temperature, operation | 0 °C ... +50 °C, permissible relative humidity: 0% ... 90% (non-condensing) |
|---|---|
| Ambient temperature, storage | â20 °C ... +70 °C 1) |
| Shock load | ENÂ 60068-2-27:2009-05 |
| Vibration load | ENÂ 60068-2-6:2008-02 |
General notes
| Items supplied | Camera with C-mountPLOC2D softwareNot included with delivery: Optics and illumination |
|---|
Classifications
| ECLASS 5.0 | 27381501 |
|---|---|
| ECLASS 5.1.4 | 27381501 |
| ECLASS 6.0 | 27381590 |
| ECLASS 6.2 | 27381590 |
| ECLASS 7.0 | 27381590 |
| ECLASS 8.0 | 27381590 |
| ECLASS 8.1 | 27381590 |
| ECLASS 9.0 | 27381590 |
| ECLASS 10.0 | 27381590 |
| ECLASS 11.0 | 27381591 |
| ECLASS 12.0 | 27381591 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
