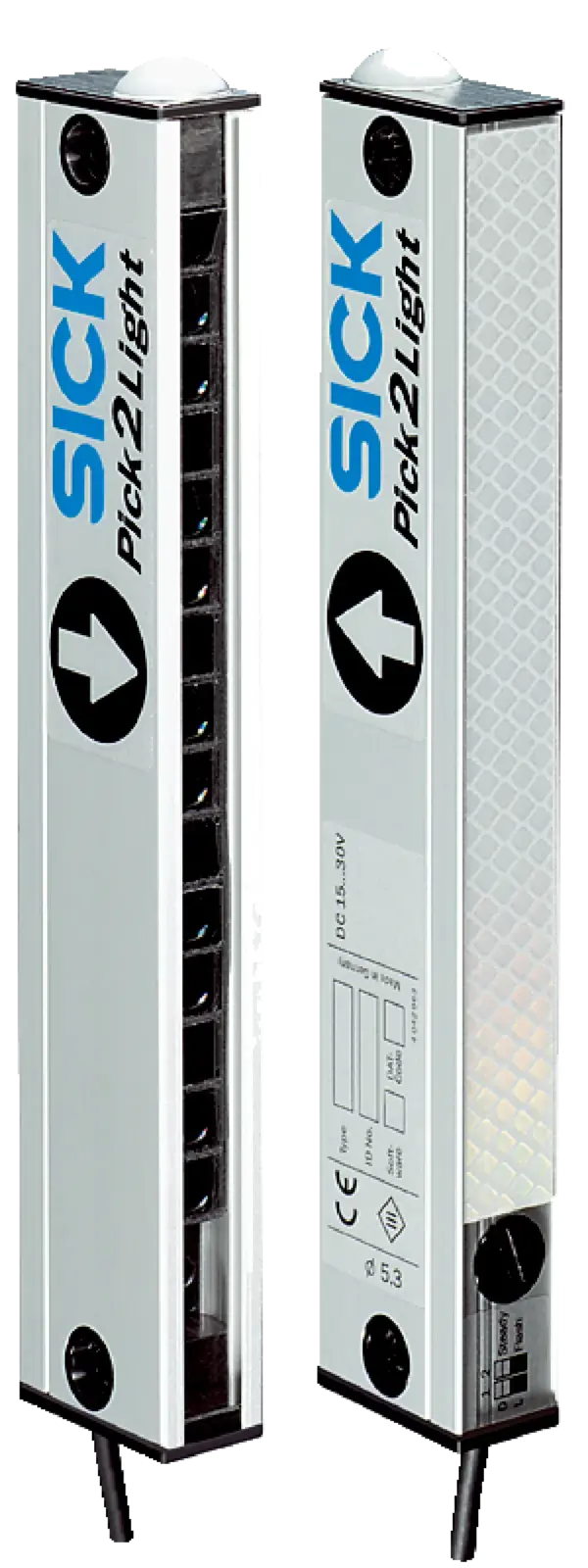

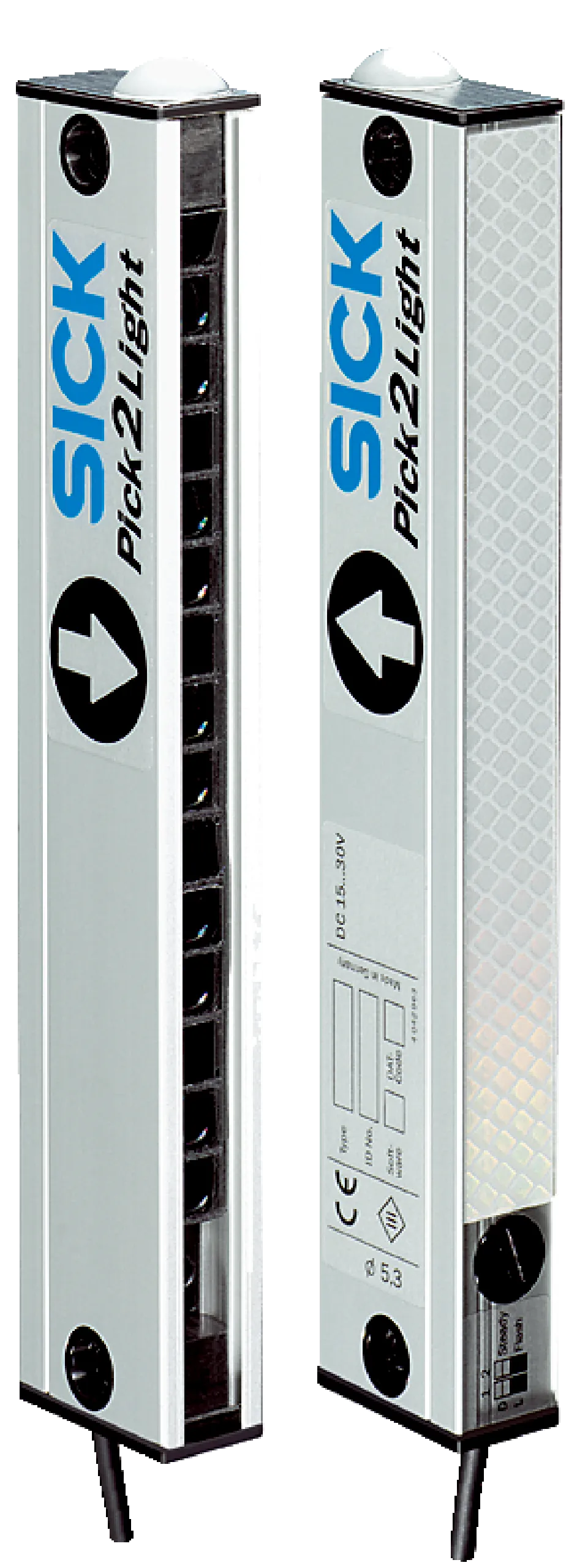

Sick PLG3-120F431
Automation light grids | PLG | PLG3-120F431 | Beam separation: 30 mm | Operating range: 1.3 m | Detection height: 120 mm | Length of cable: 280 mm | Response time: < 80 ms
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Automation light grids | PLG | PLG3-120F431 | Beam separation: 30 mm | Operating range: 1.3 m | Detection height: 120 mm | Length of cable: 280 mm | Response time: < 80 ms
Specification
Features
| Sensor principle | Photoelectric retro-reflective sensor |
|---|---|
| Minimum detectable object (MDO) | 35 mm 1) |
| Beam separation | 30Â mm |
| Number of beams | 5 |
| Detection height | 120Â mm |
Mechanics/electronics
| Wave length | 650Â nm |
|---|---|
| Supply voltage Vs | DC 15Â VÂ ... 30Â VÂ 1) |
| Power consumption sender | <Â 45Â mA |
| Ripple | <Â 5Â Vpp |
| Output current Imax. | ≤ 100 mA |
| Output load, capacitive | 100Â nF |
| Output load, Inductive | 1Â H |
| Initialization time | 0.6Â s |
| Switching output | PNPÂ 2) |
| Output mode | Q dark switching 3) |
| Current consumption job LED | 10Â mAÂ 1) |
| Dimensions (W x H x D) | 19.2 mm x 199.8 mm x 36.6 mm |
| Connection type | Cable with M12 male connector, 4-pin, 280Â mm |
| Housing material | Aluminum |
| Indication | LED |
| Enclosure rating | IP54 |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Protection class | III |
| Weight | 200Â g |
| Front screen | PMMA |
Performance
| Maximum range | 2Â m |
|---|---|
| Minimum range | ≥ 110 mm |
| Operating range | 1.3Â m |
| Response time | < 80 ms 1) |
Ambient data
| Shock resistance | 10 g / DIN EN 60068-2-29 / 16 ms |
|---|---|
| Vibration resistance | 5 g, 10 Hz ... 55 Hz (IEC 68-2-6) |
| EMC | ENÂ 60947-5-2 |
| Ambient operating temperature | –10 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
Classifications
| ECLASS 5.0 | 27270910 |
|---|---|
| ECLASS 5.1.4 | 27270910 |
| ECLASS 6.0 | 27270910 |
| ECLASS 6.2 | 27270910 |
| ECLASS 7.0 | 27270910 |
| ECLASS 8.0 | 27270910 |
| ECLASS 8.1 | 27270910 |
| ECLASS 9.0 | 27270910 |
| ECLASS 10.0 | 27270910 |
| ECLASS 11.0 | 27270910 |
| ECLASS 12.0 | 27270910 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 39121528 |
