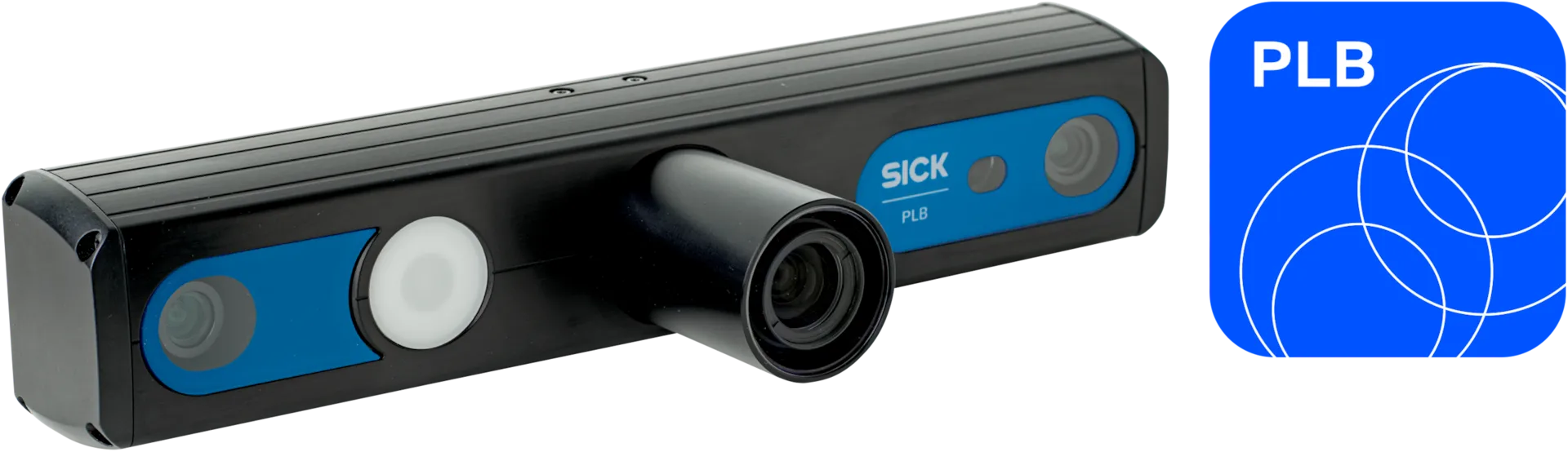

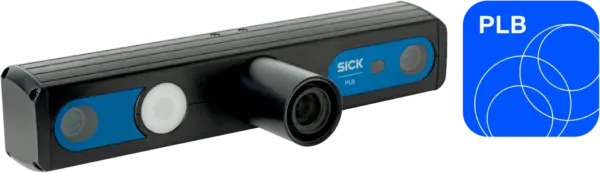

Sick PLB-51B0102
Robot guidance systems | PLB | PLB-51B0102 | Items supplied: C57 camera, PLB Application Software | Part size: (approx.) > 10 mm x 10 mm x 10 mm | Part characteristics: Simple and complex part shapes…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robot guidance systems | PLB | PLB-51B0102 | Items supplied: C57 camera, PLB Application Software | Part size: (approx.) > 10 mm x 10 mm x 10 mm | Part characteristics: Simple and complex part shapes | Bin size: Small
Specification
Features
| Product version | PLB-522 |
|---|---|
| Field of view | Small |
| Classification | Pro |
| Tasks | Position determination |
| Applications | Robot guidance |
| Camera type | 3D snapshot |
| Example volume of view (L x W x H) | 200 mm x 450 mm x 100 mm |
| Image resolution | 0.2 mm ... 0.3 mm, depending on the distance to the camera |
| LED class | Risk group 1 |
| 3D CAD format | IGES, STEP |
| Localization principle | CAD-model, geometrical shape and edge localization |
| Technology | 3D snapshot, image analysis |
Mechanics/electronics
| Connection type | PoE++ |
|---|---|
| Supply voltage | 24Â VÂ DC or PoE PD class 8Â (90W) |
| Current consumption | 10Â A |
| Dimensions (L x W x H) | 506 mm x 58 mm x 100 mm |
| Weight | 1,160Â g |
| Enclosure rating | IP65/ IP67 |
Performance
| Part localization time | 0.1 s ... 10 s, typical |
|---|---|
| Part size | (approx.) > 10 mm x 10 mm x 10 mm |
| Part characteristics | Simple and complex part shapes |
| 2D colour sensor resolution | 2 MP (1920 px x 1200 px) |
| 3D sensor resolution | 5 MP (2472 px x 2064 px) |
Interfaces
| Ethernet | â (2) , camera <--> PC, PC<--> robot |
|---|---|
| Data transmission rate | 1Â Gbit/s (camera), 10/100 Mbit/s (robot) |
| Protocol | TCP/IPÂ (camera) |
| Electrical connection | M12 female connector, 8-pin, X-coded |
Ambient data
| Ambient temperature, operation | 0 °C ... +40 °C, Non-condensing |
|---|---|
| Shock load | 60 g / 1,9 ms, 25 g / 6 ms 1) |
| Vibration load | 30-500 Hz / 5Â g |
General notes
| Items supplied | C57 cameraPLB Application Software |
|---|---|
| Factory calibrated | â |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27381501 |
|---|---|
| ECLASS 5.1.4 | 27381501 |
| ECLASS 6.0 | 27381590 |
| ECLASS 6.2 | 27381590 |
| ECLASS 7.0 | 27381590 |
| ECLASS 8.0 | 27381590 |
| ECLASS 8.1 | 27381590 |
| ECLASS 9.0 | 27381590 |
| ECLASS 10.0 | 27381590 |
| ECLASS 11.0 | 27381591 |
| ECLASS 12.0 | 27381591 |
