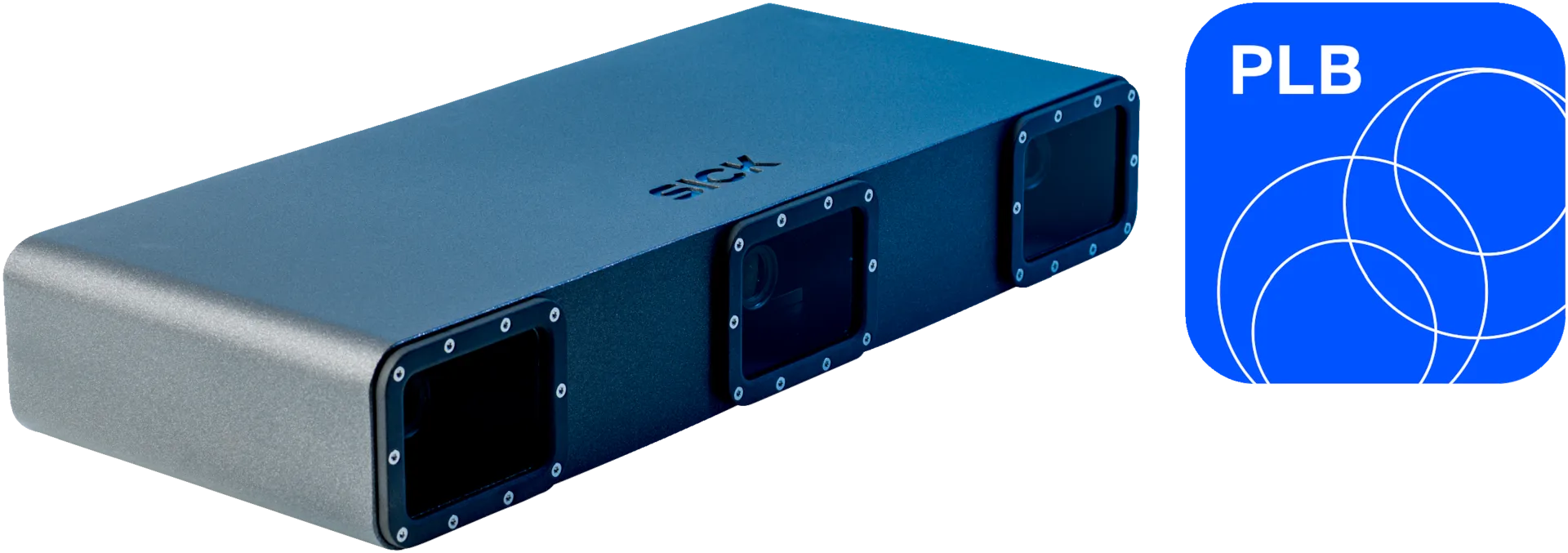

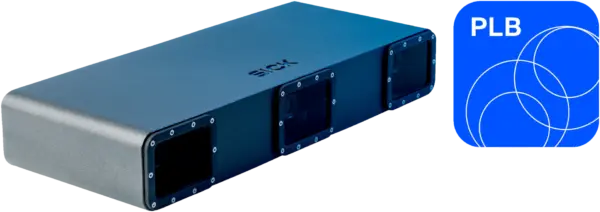

Sick PLB-5140601
Robot guidance systems | PLB | PLB-5140601 | Items supplied: X36 camera, PLB Application Software | Part size: (approx.) > 20 mm x 20 mm x 20 mm | Part characteristics: Simple and complex part shapes…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robot guidance systems | PLB | PLB-5140601 | Items supplied: X36 camera, PLB Application Software | Part size: (approx.) > 20 mm x 20 mm x 20 mm | Part characteristics: Simple and complex part shapes | Bin size: Medium
Specification
Features
| Product version | PLB-520 5MP |
|---|---|
| Field of view | Medium |
| Classification | Spare |
| Tasks | Position determination |
| Applications | Robot guidance |
| Camera type | 3D snapshot |
| Example volume of view (L x W x H) | 800 mm x 600 mm x 400 mm |
| Image resolution | 0.2 mm ... 0.4 mm, depending on the distance to the camera |
| LED class | Risk group 1 |
| 3D CAD format | IGES, STEP |
| Technology | 3D snapshot, image analysis |
Mechanics/electronics
| Connection type | Male connector M12, 5-pin, L-coded |
|---|---|
| Supply voltage | 24 V DC, ± 15 % |
| Current consumption | 5Â A |
| Dimensions (L x W x H) | 488 mm x 200 mm x 80 mm |
| Weight | 2,500Â g |
| Enclosure rating | IP54 |
Performance
| Part localization time | 3 s ... 10 s, typical |
|---|---|
| Part size | (approx.) > 20 mm x 20 mm x 20 mm |
| Part characteristics | Simple and complex part shapes |
Interfaces
| Data transmission rate | 1Â Gbit/s (camera), 10/100 Mbit/s (robot) |
|---|---|
| Protocol | TCP/IPÂ (camera) |
| Electrical connection | M12 female connector, 8-pin, X-coded |
Ambient data
| Ambient temperature, operation | 0 °C ... +40 °C, Non-condensing |
|---|---|
| Shock load | 80 g/1,9 ms, 25 g / 6 ms 1) |
| Vibration load | 30-500 Hz / 10 g 2) |
General notes
| Items supplied | X36 cameraPLB Application Software |
|---|---|
| Factory calibrated | â |
Certificates
| EU declaration of conformity | â |
|---|---|
| ACMA declaration of conformity | â |
| China RoHS | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27381501 |
|---|---|
| ECLASS 5.1.4 | 27381501 |
| ECLASS 6.0 | 27381590 |
| ECLASS 6.2 | 27381590 |
| ECLASS 7.0 | 27381590 |
| ECLASS 8.0 | 27381590 |
| ECLASS 8.1 | 27381590 |
| ECLASS 9.0 | 27381590 |
| ECLASS 10.0 | 27381590 |
| ECLASS 11.0 | 27381591 |
| ECLASS 12.0 | 27381591 |
