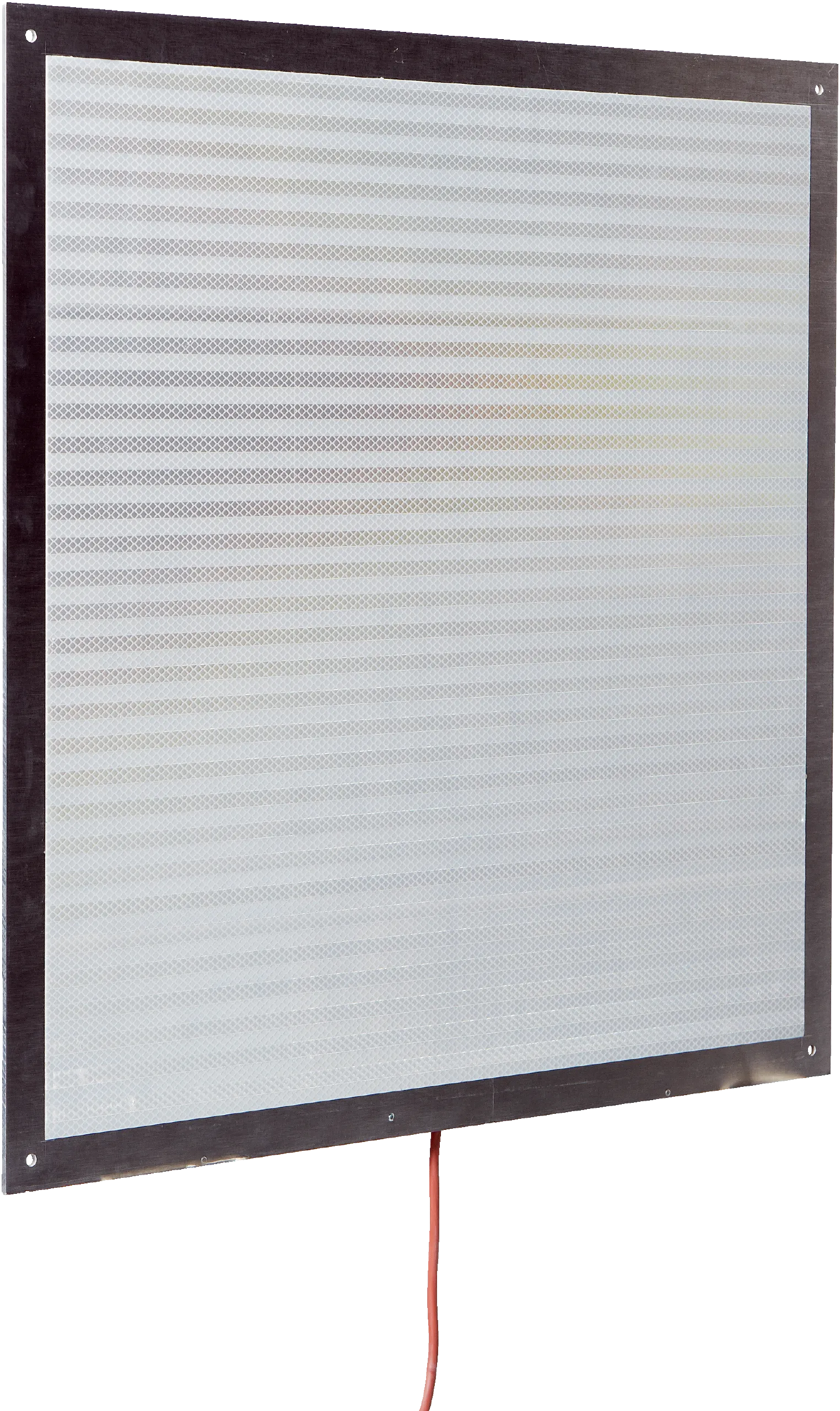

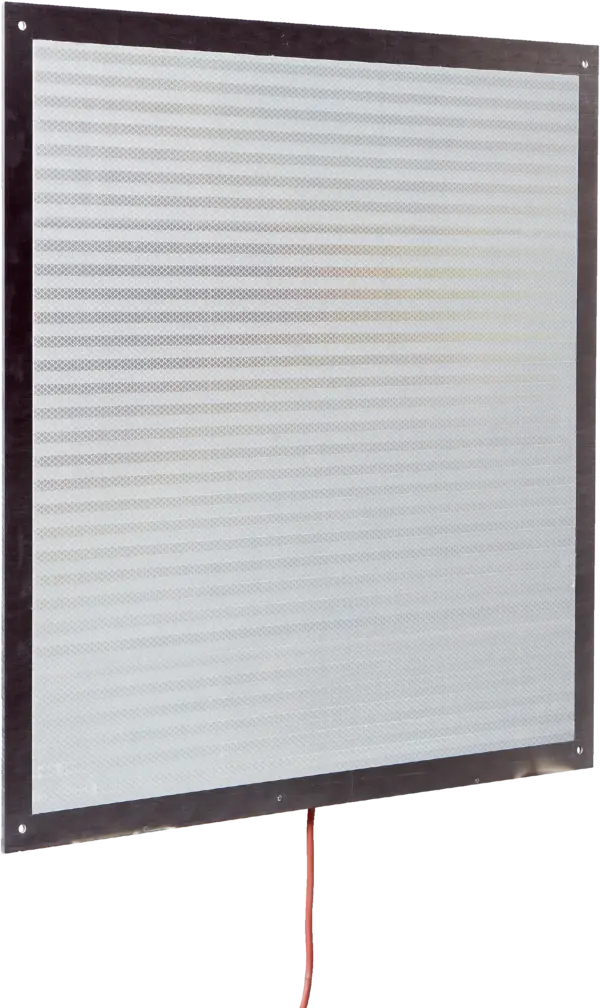

Sick PL560DG-H
Reflectors and optics | Reflectors | PL560DG-H | Description: Reflector plate, “Diamond Grade” reflective tape, baseplate: 665 mm x 665 mm, heated, external fuse protection: 6 A (provided by customer)…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reflectors and optics | Reflectors | PL560DG-H | Description: Reflector plate, “Diamond Grade” reflective tape, baseplate: 665 mm x 665 mm, heated, external fuse protection: 6 A (provided by customer) | Dimensions: 605 mm 605 mm | Connection types: 2 m silicone cable, 3 x 0.75 mm2, flexible cable,open end with ferrules, minimum bend radius: 51 mm at room temperature | Ambient operating temperature: –40 °C … +55 °C
Specification
Features
| Product segment | Reflectors and optics |
|---|---|
| Product | Reflectors |
| Product version | Standard reflectors |
| Description | Reflector plate, âDiamond Gradeâ reflective tape, baseplate: 665 mm x 665 mm, heated, external fuse protection: 6 A (provided by customer) |
| Mounting system type | Screw-on |
| Material | Base plate: Aluminum (anodised) |
| Enclosure rating | IPx4 (ENÂ 60529) |
| Supply voltage | 90Â VÂ ACÂ ... 280Â VÂ AC |
| Connections | 2Â m silicone cable, 3Â x 0.75Â mm2, flexible cable,open end with ferrules, minimum bend radius: 51Â mm at room temperature |
| Ambient operating temperature | â40 °C ... +55 °C |
| Storage temperature | â40 °C ... +55 °C |
| Dimensions (W x H x L) | 605 mm x 605 mm |
| Weight | 7.32Â kg |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27279203 |
|---|---|
| ECLASS 5.1.4 | 27279203 |
| ECLASS 6.0 | 27279203 |
| ECLASS 6.2 | 27279203 |
| ECLASS 7.0 | 27279203 |
| ECLASS 8.0 | 27279203 |
| ECLASS 8.1 | 27279203 |
| ECLASS 9.0 | 27273601 |
| ECLASS 10.0 | 27273601 |
| ECLASS 11.0 | 27273601 |
| ECLASS 12.0 | 27273601 |
| ETIM 5.0 | EC002467 |
| ETIM 6.0 | EC002467 |
| ETIM 7.0 | EC002467 |
| ETIM 8.0 | EC002467 |
| UNSPSC 16.0901 | 39111827 |
