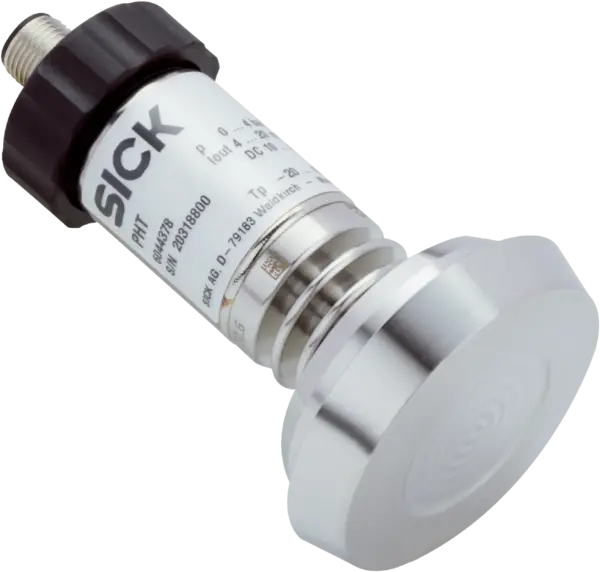

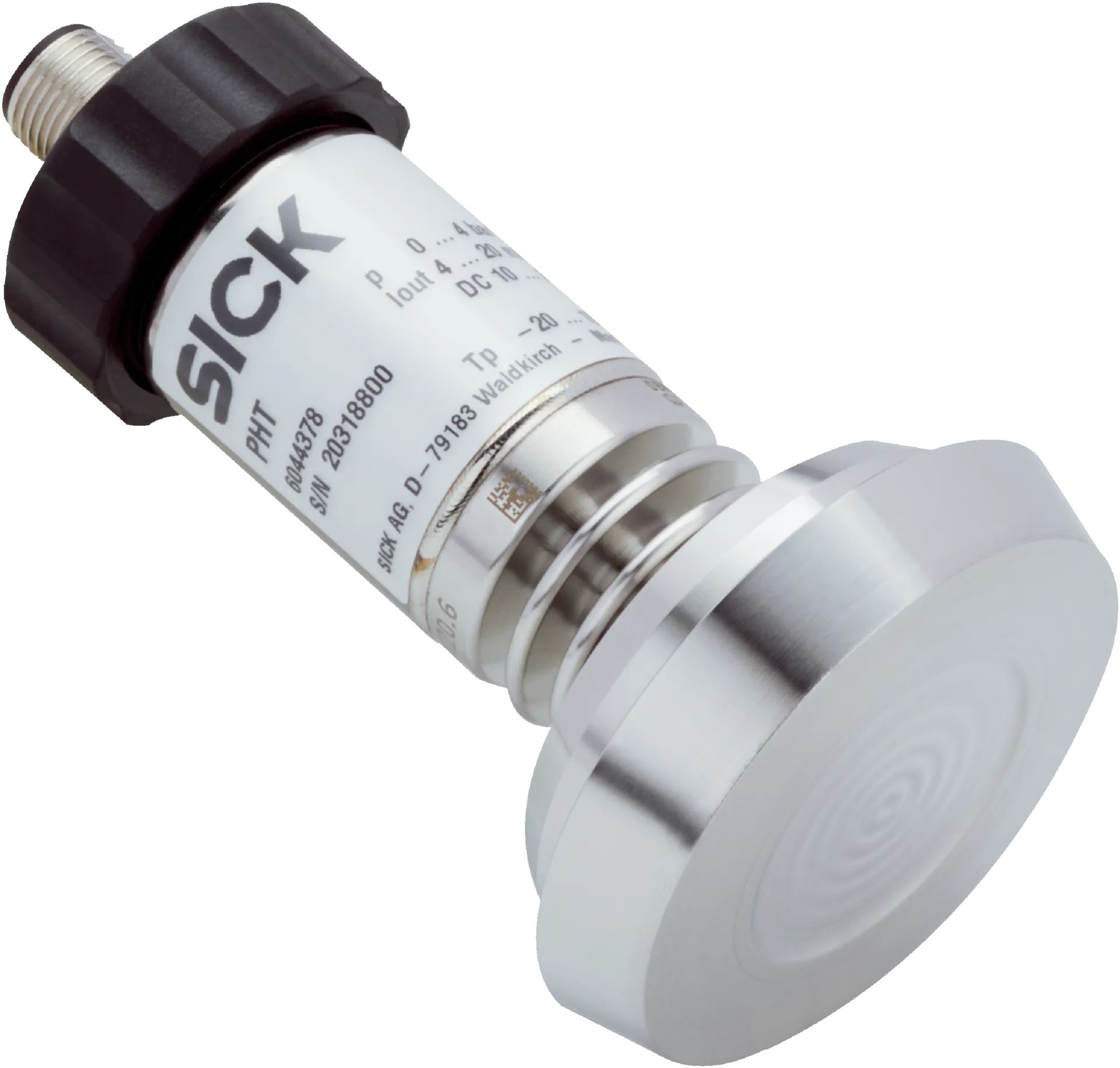

Sick PHT-RB6X0S540S0AFT0Z
Pressure sensors | PHT | PHT-RB6X0S540S0AFT0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar … 6 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjus…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Pressure sensors | PHT | PHT-RB6X0S540S0AFT0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar … 6 bar | Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) | Process connection: Conical coupling (DIN 11851) DN 40 with union nut | Process temperature: –20 °C … +150 °C | Seal: Without seal | Communication interface: – | Output signal: 4 mA … 20 mA, 2-wire | Connection type: Field housing, IP67 | Supply voltage: 11 V DC … 30 V DC
Specification
Features
| Medium | Liquid, gaseous |
|---|---|
| Pressure type | Gauge pressure |
| Pressure unit | bar |
| Measuring range | 0 bar ... 6 bar |
| Process temperature | â20 °C ... +150 °C |
| Maximum ohmic load RA | 4 mA ... 20 mA, 2-wire (RA ⤠(L+ â 10 V) / 0.02 A [Ohm]) , The variant with field housing and current output 4 mA ... 20 mA features test terminals that allow metering of the signal current without having to disconnect the device.the signal current without having to disconnect the device., 0 V ... 10 V, 3-wire (RA > 10 kOhm), 0 V ... 5 V, 3-wire (RA > 5 kOhm) |
| Output signal | 4Â mAÂ ... 20Â mA, 2-wire |
Mechanics/electronics
| Communication interface | - |
|---|---|
| Process connection | Conical coupling (DINÂ 11851) DN 40Â with union nut |
| Wetted parts | Process connection: 316L stainless steel |
| Internal transmission fluid | Synthetic oil, FDA approved |
| Housing material | Stainless steel 1.4571 |
| Connection type | Field housing |
| Supply voltage | 11Â VÂ DCÂ ... 30Â VÂ DC |
| Electrical safety | Overvoltage protection: 36Â VÂ DCShort-circuit protection: QA towards MReverse polarity protection: L+ to MProtection class: III |
| Dielectric strength | 500Â VÂ DC, NEC Class 02Â power supply (low voltage and low current max. 100Â VA even in the event of a fault) |
| CE-conformity | EMC directive: 2004/108/EC, ENÂ 61326-2-3 |
| Weight sensor | Approx. 500 g |
| Seal | Without seal |
| Enclosure rating | IP67Â 1) |
| Protection class III | â |
| MTTF | 403Â years |
Performance
| Non-linearity | ⤠± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2 |
|---|---|
| Accuracy | ⤠± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)) |
| Non-repeatability | ⤠± 0.1 % of the span |
| Response time (10 % ... 90 %) | â¤Â 10 ms |
| Long-term drift/one-year stability | â¤Â 0.2 % of the span |
| Temperature coefficient in rated temperature range | Mean TC of zero: â¤Â 0.2% of span / 10 K for measuring ranges 0 bar ... 0.6 bar up to 0 bar ... 25 barMean TC of zero: ⤠0.25 % of span/ 10 K with pressure range 0 bar ... 0.4 bar⤠0.25 % of span/ 10 K, with pressure range 0 bar ... 0.4 barMean TC of zero: â¤Â 0.4% of span / 10 K for measuring range 0 bar ... 0.25 barMean TC of span ⤠0.2 % of span / 10 K |
| Rated temperature range | 0 °C ... +80 °C |
Ambient data
| Ambient temperature, operation | â20 °C ... +80 °C |
|---|---|
| Storage temperature | â40 °C ... +100 °C |
| Shock load | 500Â g according to IECÂ 60068-2-27 (mechanical shock) |
| Vibration load | 15Â g according to IECÂ 60068-2-6 (vibration under resonance) |
Classifications
| ECLASS 5.0 | 27200614 |
|---|---|
| ECLASS 5.1.4 | 27200614 |
| ECLASS 6.0 | 27200614 |
| ECLASS 6.2 | 27200614 |
| ECLASS 7.0 | 27200614 |
| ECLASS 8.0 | 27200614 |
| ECLASS 8.1 | 27200614 |
| ECLASS 9.0 | 27200614 |
| ECLASS 10.0 | 27200614 |
| ECLASS 11.0 | 27200614 |
| ECLASS 12.0 | 27200614 |
| ETIM 5.0 | EC011478 |
| ETIM 6.0 | EC011478 |
| ETIM 7.0 | EC011478 |
| ETIM 8.0 | EC011478 |
| UNSPSC 16.0901 | 41112410 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
| Food contact material manufacturer declaration | â |
