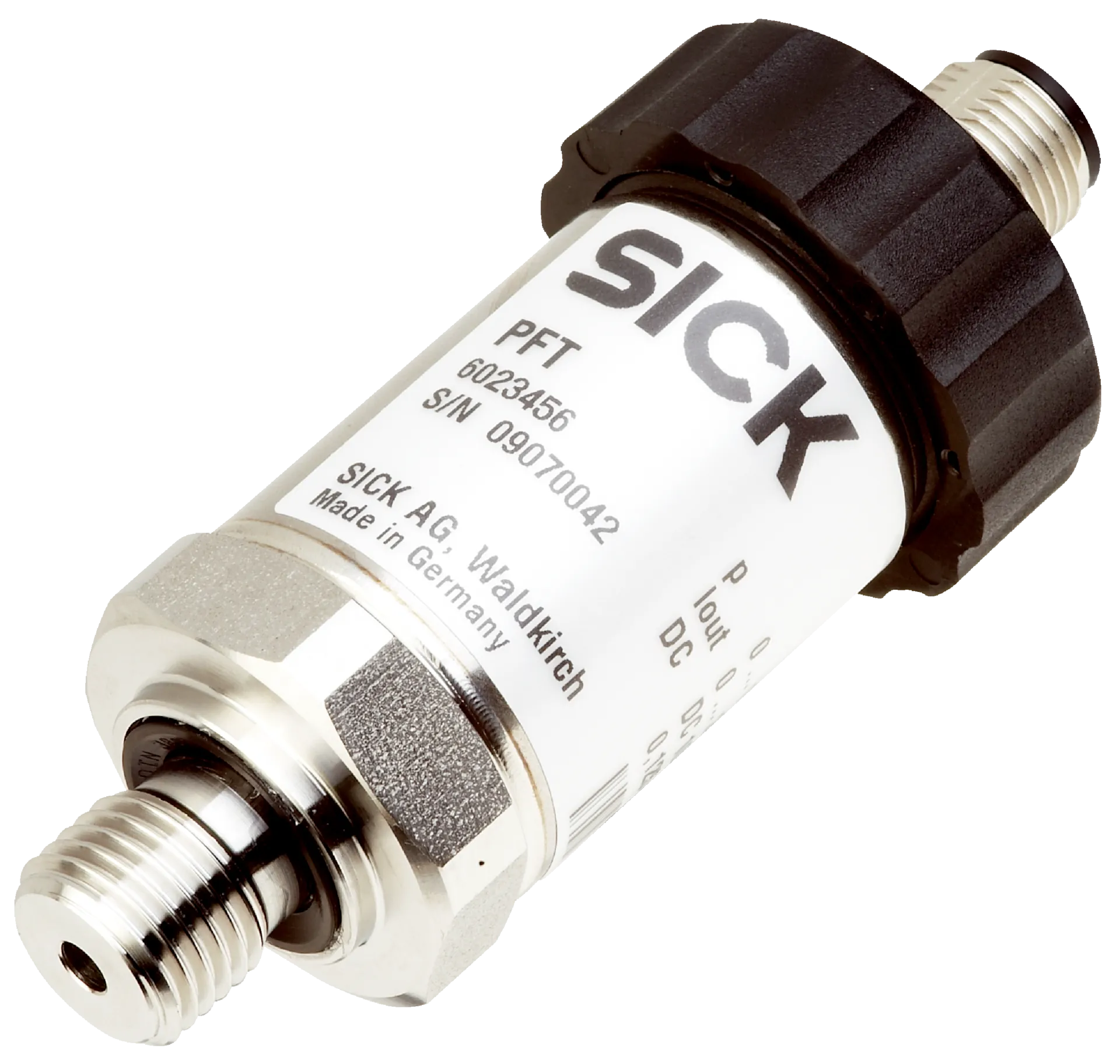

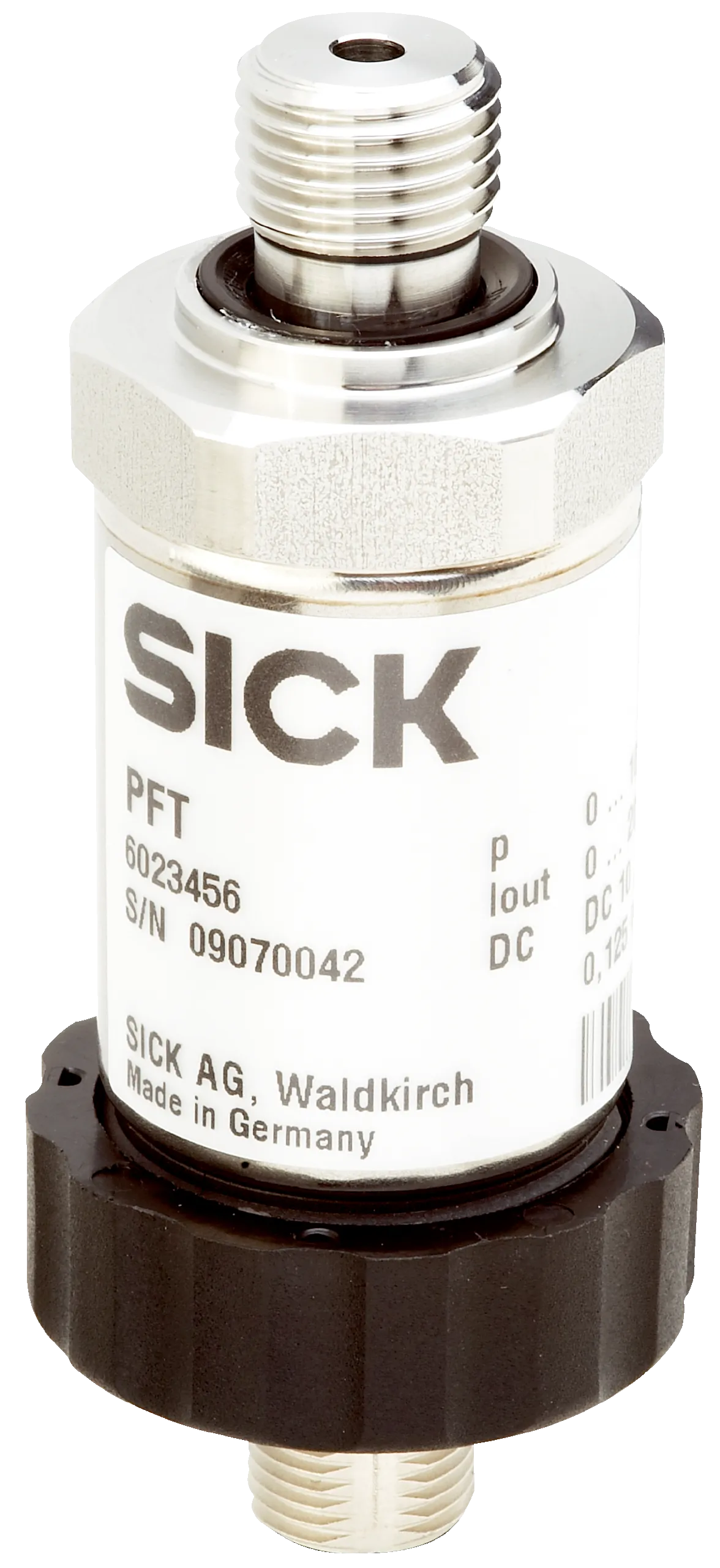

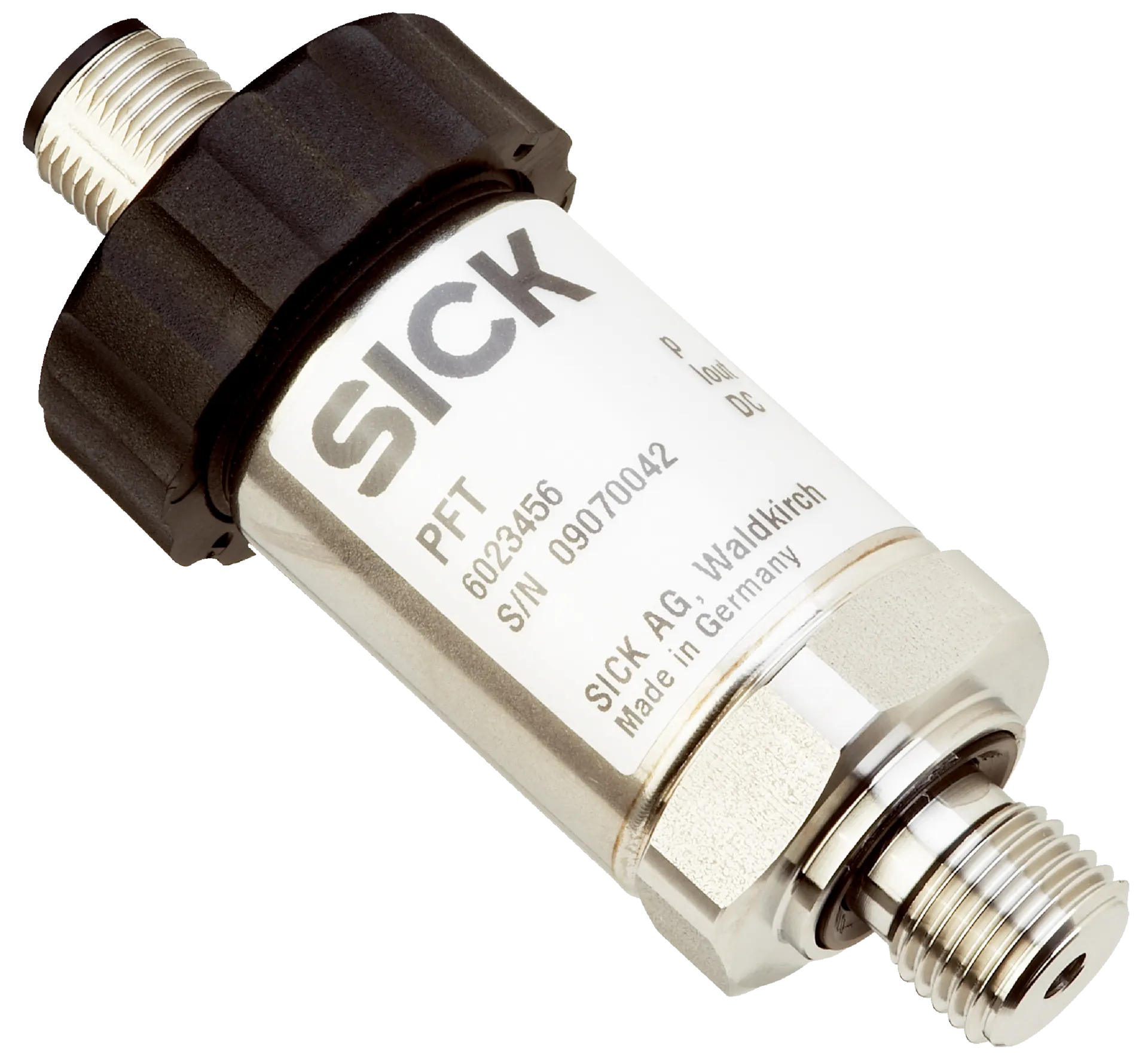

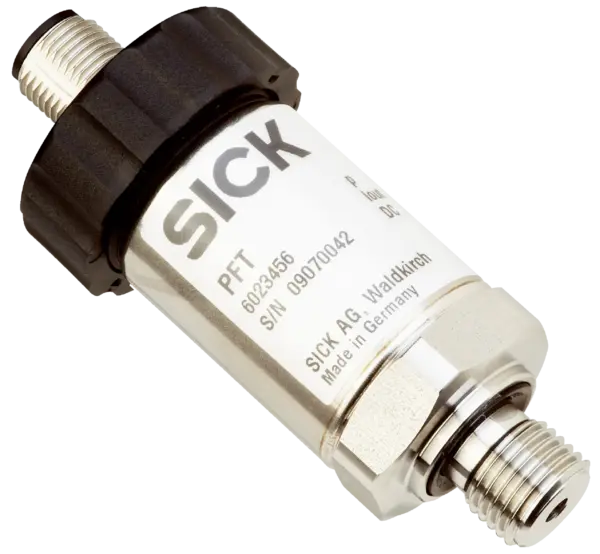

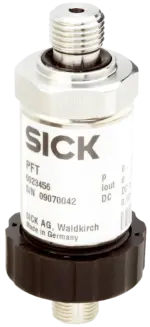

Sick PFT-SABX25SG1SSAAMSSZ
Pressure sensors | PFT | PFT-SABX25SG1SSAAMSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar … 0.25 bar | Accuracy: ≤ ± 0.5 %, of the span (= ± 0.25% of the span (…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Pressure sensors | PFT | PFT-SABX25SG1SSAAMSSZ | Pressure type: Absolute pressure | Pressure unit: bar | Measuring range: 0 bar … 0.25 bar | Accuracy: ≤ ± 0.5 %, of the span (= ± 0.25% of the span (optionally for pressure ranges = 0.25 bar). applies inclusive of nonlinearity, hysteresis, non-repeatability, zero-point and full-scale error (corresponds to error of measurement as per IEC 61298-2) Calibrated with vertical installation position) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –30 °C … +100 °C | Seal: Without seal | Communication interface: – | Output signal: 4 mA … 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 10 V DC … 30 V DC
Specification
Features
| Medium | Liquid, gaseous |
|---|---|
| Pressure type | Absolute pressure |
| Pressure unit | bar |
| Measuring range | 0 bar ... 0.25 bar |
| Process temperature | â30 °C ... +100 °C |
| Maximum ohmic load RA | 4 mA ... 20 mA, 2-wire (RA ⤠(L+ â 10 V) / 0.02 A [Ohm]) , 0 V ... 5 V, 3-wire (RA > 5 kOhm), 0 V ... 10 V, 3-wire (RA > 10 kOhm) |
| Output signal | 4Â mAÂ ... 20Â mA, 2-wire |
Mechanics/electronics
| Communication interface | - |
|---|---|
| Process connection | G ¼ A (ISO 1179-2) |
| Wetted parts | Standard memrane: Stainless steel 316Ti |
| Internal transmission fluid | Synthetic oil (Not available for version with standard membrane for pressure ranges > 25Â bar) |
| Pressure port | Standard |
| Housing material | Stainless steel 1.4571 |
| Connection type | M12 round connector x 1, 4-pin |
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
| Electrical safety | Overvoltage protection: 36Â VÂ DCShort-circuit protection: QA towards MReverse polarity protection: L+ to MProtection class: III |
| Dielectric strength | 500Â VÂ DC, NEC Class 02Â power supply (low voltage and low current max. 100Â VA even in the event of a fault) |
| CE-conformity | Pressure equipment directive: 2014/68/EUEMC directive: 2004/108/EC, ENÂ 61326-2-3 |
| Weight sensor | Approx. 200 g |
| Seal | Without seal |
| Enclosure rating | IP67Â 1) |
| Protection class III | â |
| MTTF | 403Â years |
| Pressure peak dampening | Through optional integrated pressure port 0.6 mm or 0.3 mm for process connector G ¼ according to DIN 3852-E |
Performance
| Non-linearity | ⤠± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2 |
|---|---|
| Accuracy | ⤠± 0.5 %, of the span (= ± 0.25% of the span (optionally for pressure ranges = 0.25 bar). applies inclusive of nonlinearity, hysteresis, non-repeatability, zero-point and full-scale error (corresponds to error of measurement as per IEC 61298-2) Calibrated with vertical installation position) |
| Non-repeatability | ⤠± 0.1 % of the span |
| Response time (10 % ... 90 %) | â¤Â 1 ms ⤠10 ms at medium temperatures below < â30°C for pressure ranges up to 25 bar or with flush-mounted membrane |
| Long-term drift/one-year stability | ⤠± 0.2 % of span (at reference conditions) |
| Temperature coefficient in rated temperature range | Mean TC of zero: ⤠0.2 % of span / 10 K (< 0.4 % for pressure ranges ⤠0.25 bar)Mean TC of span ⤠0.2 % of span / 10 K |
| Rated temperature range | 0 °C ... +80 °C |
| Service life | Minimum 10Â Mio. load cycles |
Ambient data
| Ambient temperature, operation | â20 °C ... +80 °C |
|---|---|
| Storage temperature | â40 °C ... +100 °C, with flush-mounted membrane and cooling element â20 °C ... +100 °C |
| Shock load | 1000 g according to IEC 60068-2-27 (mechanical shock)400 g according to IEC 60068-2-27 (mechanical shock) for version with integrated cooling element |
| Vibration load | 20Â g according to IECÂ 60068-2-6 (vibration under resonance)10Â g according to IECÂ 60068-2-6 (vibration undencr resonae) for version with integrated cooling element |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27200614 |
|---|---|
| ECLASS 5.1.4 | 27200614 |
| ECLASS 6.0 | 27200614 |
| ECLASS 6.2 | 27200614 |
| ECLASS 7.0 | 27200614 |
| ECLASS 8.0 | 27200614 |
| ECLASS 8.1 | 27200614 |
| ECLASS 9.0 | 27200614 |
| ECLASS 10.0 | 27200614 |
| ECLASS 11.0 | 27200614 |
| ECLASS 12.0 | 27200614 |
| ETIM 5.0 | EC011478 |
| ETIM 6.0 | EC011478 |
| ETIM 7.0 | EC011478 |
| ETIM 8.0 | EC011478 |
| UNSPSC 16.0901 | 41112410 |
