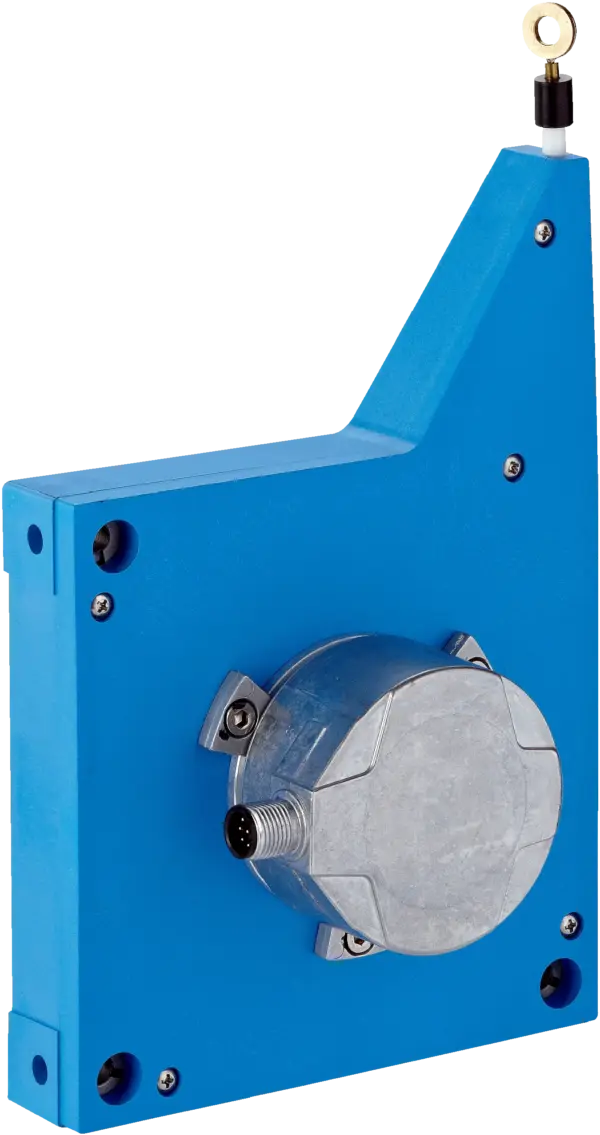

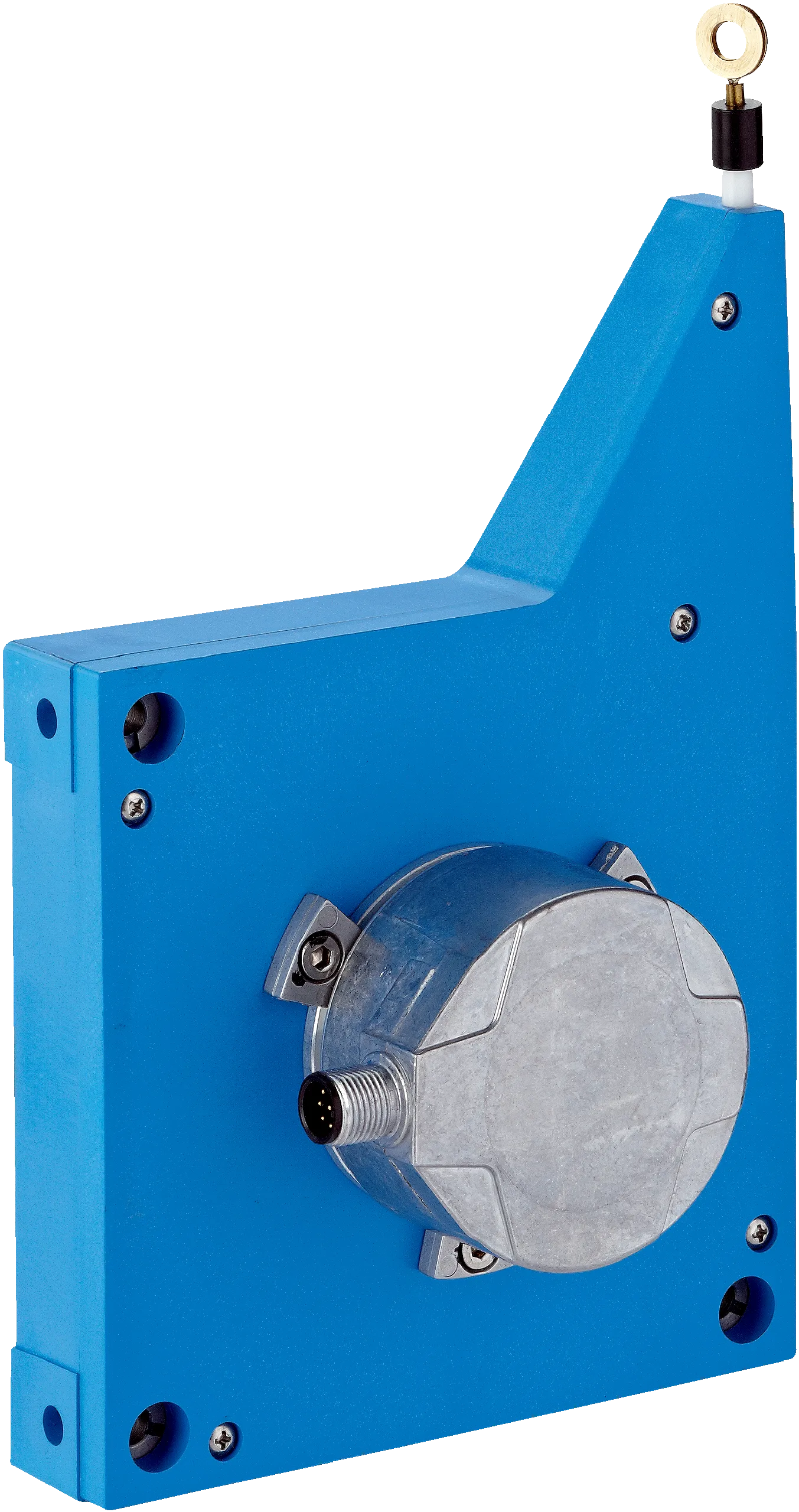

Wire draw encoders | EcoLine | PFG13-A1CM0544 | Measuring range: 0 m … 5 m | Communication interface: Incremental / TTL / RS-422 | Supply voltage: 4.5 V … 5.5 V | Connection type: Male connector, M12, 8-pin, radial | Mounted encoder: DFS60, DFS60A-S1AC16384, 1037566 | Mounted mechanic: MRA-G130-105D3, 5322779 | Programmable/configurable: no
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 300Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Measurement range | 0 m ... 5 m |
|---|---|
| Encoder | Incremental encoders |
| Resolution (wire draw + encoder) | 0.02 mm 1) 2) |
| Repeatability | â¤Â 0.2 mm 3) |
| Linearity | ⤠± 2 mm 3) |
| Hysteresis | â¤Â 0.4 mm 3) |
Interfaces
| Communication interface | Incremental / TTL / RS-422 |
|---|
Electronics
| Connection type | Male connector, M12, 8-pin, radial |
|---|---|
| Supply voltage | 4.5Â VÂ ... 5.5Â V |
| Operating current | 40Â mA (without load) |
Mechanics
| Weight | 1.1Â kg |
|---|---|
| Measuring wire material | Highly flexible stranded steel 1,4401Â stainless steel V4A |
| Measuring wire diameter | 0.55Â mm |
| Weight (measuring wire) | 1.2Â g/m |
| Housing material, wire draw mechanism | Plastic, Noryl |
| Spring return force | 4.5Â NÂ ... 7Â NÂ 1) |
| Length of wire pulled out per revolution | 385Â mm |
| Life of wire draw mechanism | Typ. 1,000,000 cycles 2) 3) |
| Actual wire draw length | 5.2Â m |
| Wire acceleration | 4 m/s² |
| Operating speed | 3Â m/s |
| Mounted encoder | DFS60, DFS60A-S1AC16384, 1037566 |
| Mounted mechanic | MRA-G130-105D3, 5322779 |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3 |
|---|---|
| Enclosure rating | IP50, mounted mechanicIP67, Encoder (IECÂ 60529)Â 1) |
| Operating temperature range | â30 °C ... +70 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270590 |
|---|---|
| ECLASS 5.1.4 | 27270590 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270590 |
| ECLASS 8.0 | 27270590 |
| ECLASS 8.1 | 27270590 |
| ECLASS 9.0 | 27270590 |
| ECLASS 10.0 | 27270613 |
| ECLASS 11.0 | 27270503 |
| ECLASS 12.0 | 27270503 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
