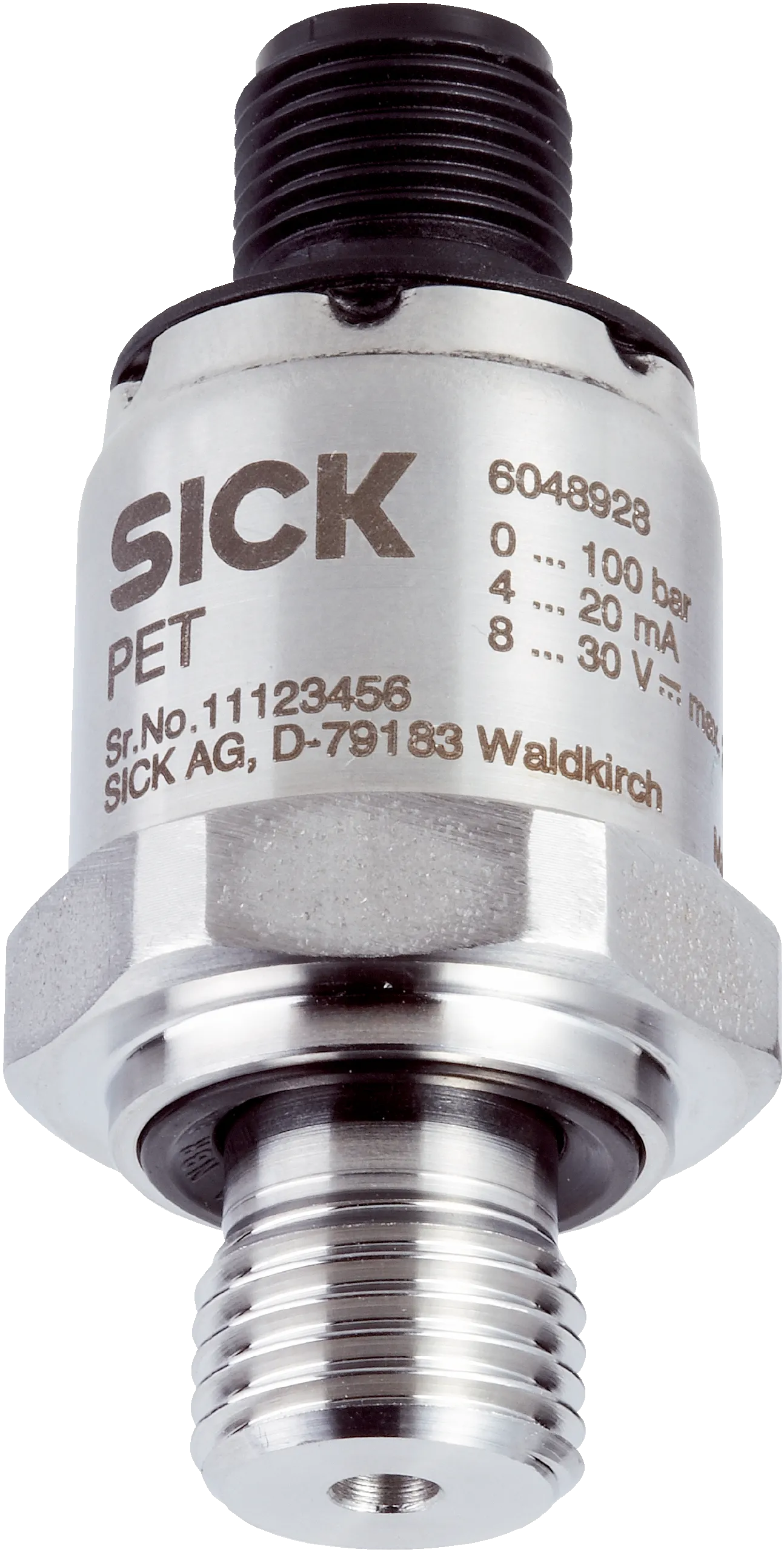

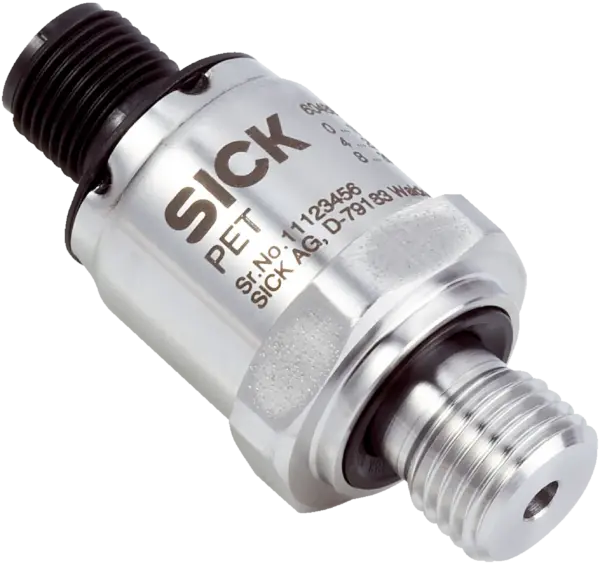

Sick PET-1RB400U2FSXLA
Pressure sensors | PET | PET-1RB400U2FSXLA | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar … 400 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process conn…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Pressure sensors | PET | PET-1RB400U2FSXLA | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar … 400 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: 9/16″ –18 UNF (SAE J514) | Pressure port: Standard | Process temperature: –30 °C … +100 °C | Seal: FKM | Communication interface: – | Output signal: 0.5 V … 4.5 V, 3-conductor | Connection type: For angled plug according to DIN EN 175301-803 A (without mating connector), IP65 | Supply voltage: 8 V DC … 30 V DC | Pieces per package: 50 pieces
Specification
Features
| Medium | Fluids |
|---|---|
| Pressure type | Gauge pressure |
| Pressure unit | bar |
| Measuring range | 0 bar ... 400 bar |
| Overpressure safety | 2-fold (3-fold upon request) |
| Process temperature | â30 °C ... +100 °C |
| Maximum ohmic load RA | >Â QA, max / 1Â mA [ohm] for current output signal |
| Output signal | 0.5Â VÂ ... 4.5Â V, 3-conductor |
| Initialization time | 15Â ms |
| Pieces per package | 50Â pieces |
Mechanics/electronics
| Communication interface | - |
|---|---|
| Process connection | 9/16" â18 UNF (SAE J514)Â 1) |
| Wetted parts | Process connection: 316L stainless steelMeasuring chamber: stainless steel 13-8 PH |
| Pressure port | Standard |
| Housing material | Stainless steel 316L, PBT GF30 |
| Connection type | For angled plug according to DINÂ ENÂ 175301-803Â A (without mating connector) |
| Supply voltage | 8Â VÂ DCÂ ... 30Â VÂ DCÂ 2) |
| Power consumption | 5Â mA |
| Ex-approvals | 2004/108/EC, ENÂ 61326-1 emission (group 1, class B) and interference immunity (industrial application) and pressure equipment directive 97/23/EC |
| Seal | FKMÂ 3) |
| Enclosure rating | IP65 (IECÂ 60529)Â 4) |
| MTTF | >Â 100Â years |
| Protection class | III |
| Isolation voltage | 750Â VÂ DC |
| Overvoltage protection | 36Â VÂ DC |
| Short-circuit protection | Output QA towards M |
| Reverse polarity protection | L+ towards M |
Performance
| Non-linearity | ⤠± 0.5 %, of span (best fit straight line, BFSL) |
|---|---|
| Accuracy | ⤠± 1.2 %, of span (at room temperature) |
| Adjustment accuracy of zero signal | ⤠± 0.5 % of the span |
| Response time | <Â 2Â ms |
| Long-term drift/one-year stability | ⤠± 0.3 % of span (per year) |
| Rated temperature range | 0 °C ... +80 °C |
| Service life | Minimum 10Â Mio. load cycles |
| Temperature error | ⤠± 1.5 % of the span |
| Reference conditions | According to IECÂ 61298-1 |
Ambient data
| Ambient temperature, operation | â30 °C ... +100 °C |
|---|---|
| Storage temperature | â30 °C ... +100 °C |
| Shock load | 40Â g (6Â ms) according to IECÂ 60068-2-27 (mechanical shock) |
| Vibration load | 20 g (20 Hz ... 2000 Hz, 120 min) according to IEC 60068-2-6 (vibration at resonance) |
Classifications
| ECLASS 5.0 | 27200614 |
|---|---|
| ECLASS 5.1.4 | 27200614 |
| ECLASS 6.0 | 27200614 |
| ECLASS 6.2 | 27200614 |
| ECLASS 7.0 | 27200614 |
| ECLASS 8.0 | 27200614 |
| ECLASS 8.1 | 27200614 |
| ECLASS 9.0 | 27200614 |
| ECLASS 10.0 | 27200614 |
| ECLASS 11.0 | 27200614 |
| ECLASS 12.0 | 27200614 |
| ETIM 5.0 | EC011478 |
| ETIM 6.0 | EC011478 |
| ETIM 7.0 | EC011478 |
| ETIM 8.0 | EC011478 |
| UNSPSC 16.0901 | 41112410 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
