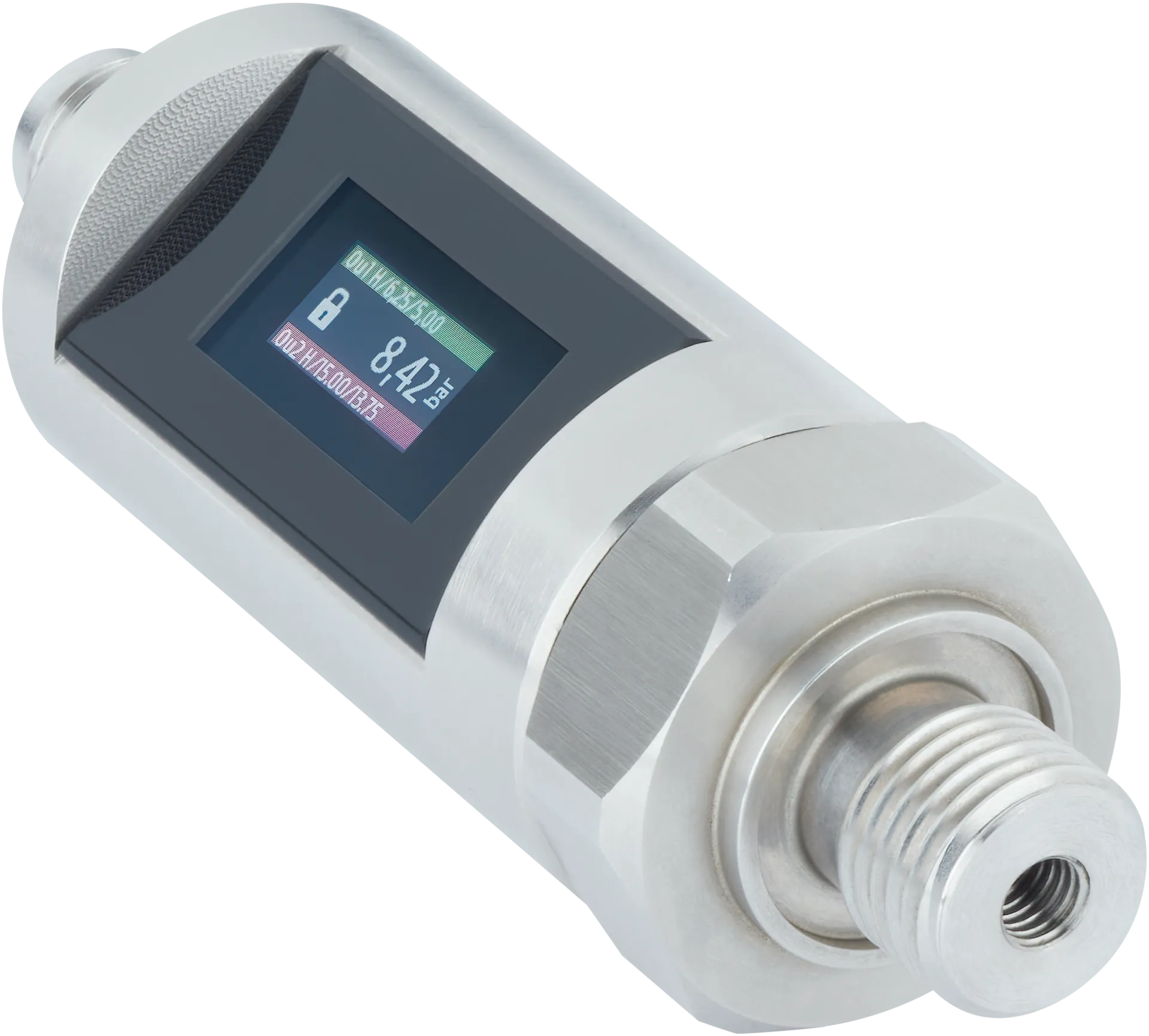

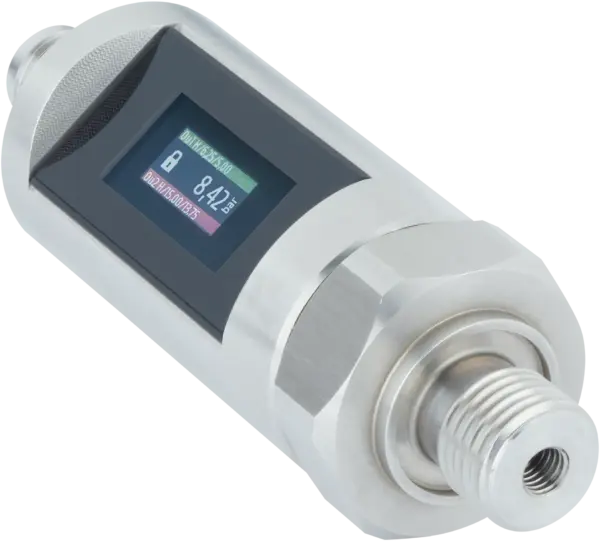

Sick PBST-RB025SN1SSEQMA0Z
Pressure sensors | PBST | PBST-RB025SN1SSEQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar … 25 bar | Accuracy: ≤ ± 0.5 % | Process connection: ¼” NPT | Pressure…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Pressure sensors | PBST | PBST-RB025SN1SSEQMA0Z | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar … 25 bar | Accuracy: ≤ ± 0.5 % | Process connection: ¼” NPT | Pressure port: M5 internal thread for pressure spike restrictor | Process temperature: –25 °C … +100 °C | Seal: EPDM | Communication interface: IO-Link | Output signal: Output 1 (pin 4): PNP/NPN/PP or IO-Link, Output 2 (pin 2): PNP/NPN/PP or analog 4…20 mA, 0…10 V, 1…10 V (each freely scalable up to max. 5:1) | Connection type: M12 round connector x 1, 4-pin, IP65, IP67, IP68 | Supply voltage: 9 V DC … 30 V DC
Specification
Features
| Medium | Liquid, gaseous |
|---|---|
| Pressure type | Gauge pressure |
| Pressure unit | bar (can be switched to psi, MPa, kPa, mmH2O, mmHG, %) |
| Measuring range | 0 bar ... 25 bar |
| Process temperature | â25 °C ... +100 °C |
| Maximum ohmic load RA | 4 mA ... 20 mA (RA ⤠0.5 kOhm), 0 V ... 10 V, 3-wire (RA > 10 kOhm) |
| Zero point adjustment | Max. + 3Â % of span |
| Output signal | Output 1Â (pin 4): PNP/NPN/PP or IO-Link, Output 2Â (pin 2): PNP/NPN/PP or analog 4...20Â mA, 0...10Â V, 1...10Â V (each freely scalable up to max. 5:1) |
| Rotatable housing | Housing with display opposite process connection: 350° |
| Display | 0.96" TFT color display with touch function (160Â x 80Â pixels) |
Mechanics/electronics
| Communication interface | IO-Link |
|---|---|
| Process connection | ¼'' NPT |
| Wetted parts | Process connection: 316L stainless steelMeasuring chamber: Al2O3 96% (ceramics)Seals: EPDM |
| Pressure port | M5 internal thread for pressure spike restrictor |
| Housing material | Housing: 1.4301/1.4305Â stainless steel, Display: glass, Display seal: PE |
| Connection type | M12 round connector x 1, 4-pin |
| Supply voltage | 9Â VÂ DCÂ ... 30Â VÂ DC |
| Power consumption | < 30Â mA |
| Total current consumption | 400Â mA (max. 200Â mA per output) |
| Electrical safety | Protection class: IIIOvervoltage protection: 32Â VÂ DCShort-circuit resistance: YesReverse polarity protection: Yes |
| CE-conformity | EMC Directive: 2014/30Â /Â EU (ENÂ 61326-1:2013; ENÂ 61326-2-3:2013) |
| Ex-approvals | Hazardous materials (RoHS): 2011/65Â /Â EU (ENÂ 50581:2012) |
| Weight sensor | Approx. 190 g |
| Seal | EPDM |
| Enclosure rating | IP65Â 1)IP67Â 1)IP68Â 1) |
| Protection class III | â |
| MTTF | 478Â years |
Performance
| Accuracy | ⤠± 0.5 % |
|---|---|
| Response time | <Â 3Â ms |
| Long-term drift/one-year stability | â¤Â 0.1 % FS / K |
| Temperature coefficient in rated temperature range | +/- 1.5% FS (< 100 bar)+/- 2.5% (â¥Â 100 bar) |
| Rated temperature range | â25 °C ... +80 °C |
| Service life | 100Â million load cycles |
Ambient data
| Ambient temperature, operation | â25 °C ... +80 °C |
|---|---|
| Storage temperature | â30 °C ... +85 °C |
| Relative humidity | ⤠90 % |
| Shock load | 50Â g, 11Â ms, XYZ, according to DINÂ ENÂ 60068-2-27 |
| Vibration load | 20 g, 10 Hz ... 2,000 Hz, XYZ, according to DIN EN 60068-2-6 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| IO-Link certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27200620 |
|---|---|
| ECLASS 5.1.4 | 27200620 |
| ECLASS 6.0 | 27200620 |
| ECLASS 6.2 | 27200620 |
| ECLASS 7.0 | 27200620 |
| ECLASS 8.0 | 27200620 |
| ECLASS 8.1 | 27200620 |
| ECLASS 9.0 | 27200620 |
| ECLASS 10.0 | 27200620 |
| ECLASS 11.0 | 27200620 |
| ECLASS 12.0 | 27200620 |
| ETIM 5.0 | EC000243 |
| ETIM 6.0 | EC000243 |
| ETIM 7.0 | EC000243 |
| ETIM 8.0 | EC000243 |
| UNSPSC 16.0901 | 41112409 |
