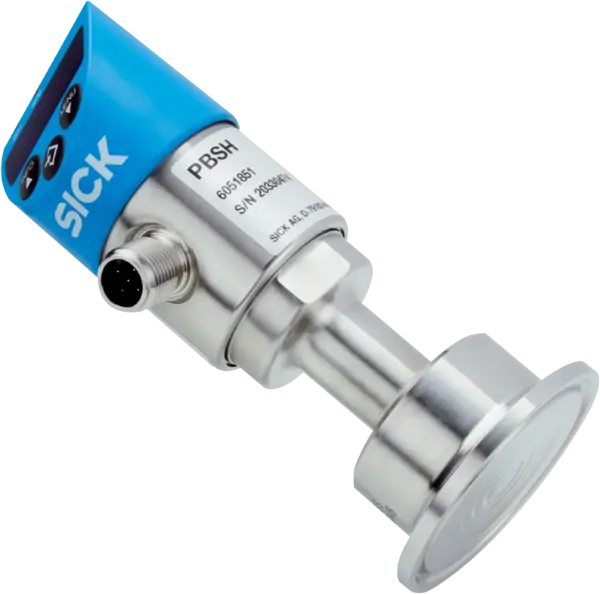

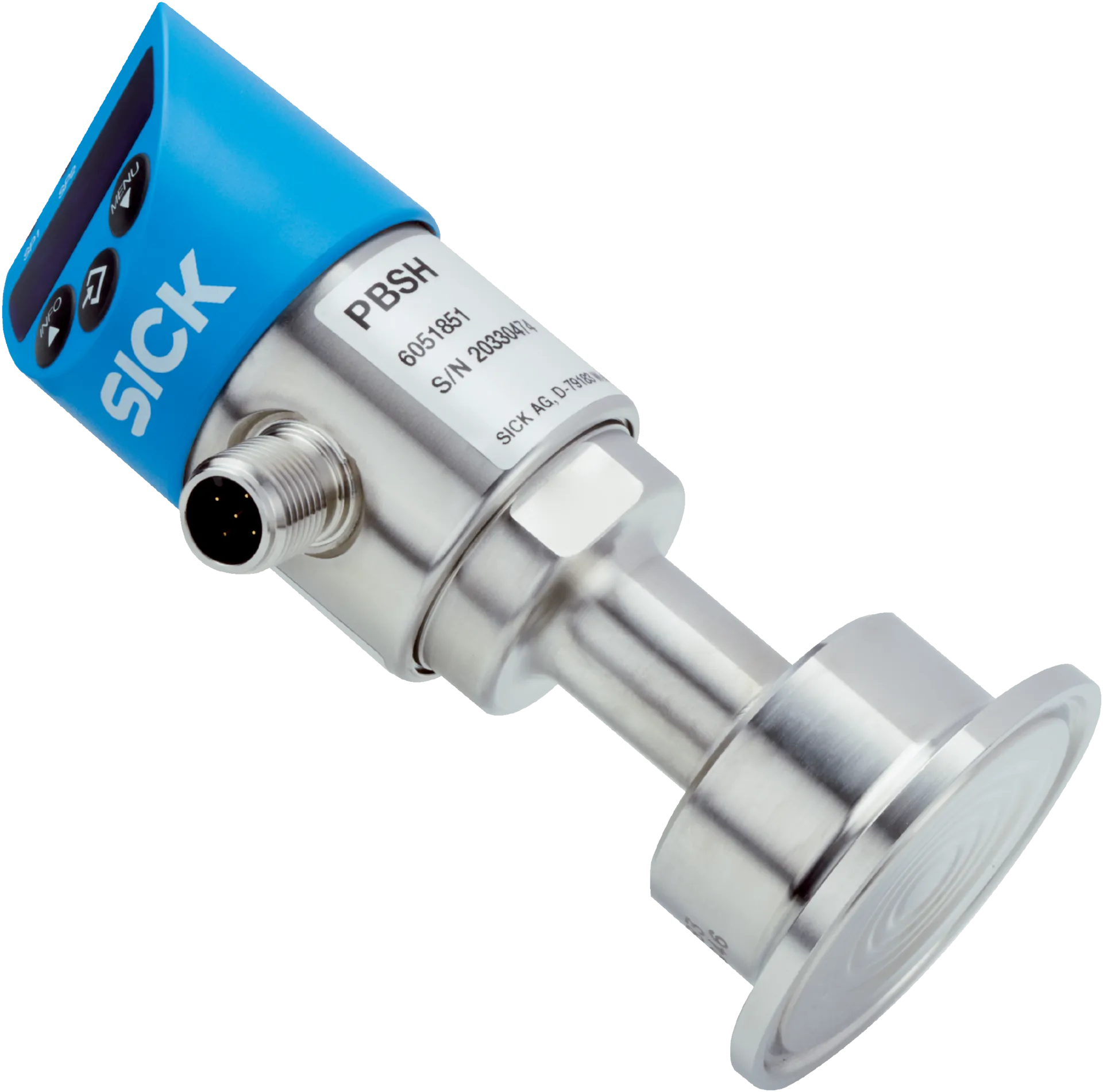

Pressure sensors | PBS Hygienic | PBSH-CB1X0ST1S0D5A0Z | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar … 0 bar | Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: Tri-Clamp 1 ½” (DIN 32676) | Process temperature: –20 °C … +100 °C | Seal: Without seal | Communication interface: – | Output signal: 2 x PNP + 4 mA … 20 mA | Connection type: Round connector M12 x 1, 5-pin, IP65, IP67 | Supply voltage: 15 V DC … 35 V DC
Specification
Features
| Medium | Liquid, gaseous |
|---|---|
| Pressure type | Compound pressure |
| Pressure unit | bar |
| Measuring range | â1 bar ... 0 bar |
| Overpressure safety | 2-fold |
| Process temperature | â20 °C ... +100 °C 1) |
| Maximum ohmic load RA | â¤Â 0.5 kΩ, 4 mA ... 20 mA (RA ⤠0.5 kOhm)0 V ... 10 V (RA > 10 kOhm) |
| Zero point adjustment | Max. + 3Â % of span |
| Output signal | 2Â x PNP + 4Â mAÂ ... 20Â mA |
| Rotatable housing | Display against housing with electrical connection: 330 °Housing against process connection: 320 ° |
| Display | 14-segment-LED, blue, 4-digits, height 9 mm, electronically turnable by 180°Accuracy: ⤠1 % of span ± 1 digitUpdate: 1,000, 500, 200, 100 ms (adjustable) |
Mechanics/electronics
| Communication interface | - |
|---|---|
| Process connection | Tri-Clamp 1 ½" (DIN 32676) |
| Wetted parts | Process connection: 316L stainless steel |
| Internal transmission fluid | Medical white oil, FDA compliant according to CFR 172.878Â and 21Â CFR 178.3620(a), compliant to USP, EP, and JP |
| Housing material | Lower body: stainless steel 304, Plastic head: PC + ABS, Buttons: TPE-E, Display window: PC |
| Connection type | Round connector M12Â x 1, 5-pin |
| Supply voltage | 15Â VÂ DCÂ ... 35Â VÂ DC |
| Power consumption | Max. 70Â mA |
| Total current consumption | Max. 570Â mA (incl. switching current) |
| Electrical safety | Protection class: IIIOvervoltage protection: 40Â VÂ DCShort-circuit protection: QA, Q1, Q2 towards MReverse polarity protection: L+ to M |
| Isolation voltage | 500Â VÂ DC |
| CE-conformity | EMC directive: 2004/108/EC, ENÂ 61326-2-3 |
| Seal | Without seal 1) |
| Enclosure rating | IP65Â 2)IP67Â 2) |
| Protection class III | â |
Performance
| Non-linearity | ⤠± 0.5 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2 |
|---|---|
| Accuracy | ⤠± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) |
| Setting accuracy of switching outputs | ⤠± 0.5 % of span |
| Response time | 3Â ms |
| Long-term drift/one-year stability | ⤠± 0.2 % of span to IEC 61298-2 |
| Temperature coefficient in rated temperature range | Typical TC of the zero point: in temperature range 0 °C ... 20 °C: 0.7% of the range / 10 K; in temperature range 20 °C ... 80 °C: 0.2% of span / 10 K. Typical TC of span: in temperature range 0 °C ... 80 °C: 0.1% of span / 10 K 1) |
| Rated temperature range | 0 °C ... +80 °C |
Ambient data
| Ambient temperature, operation | â20 °C ... +80 °C |
|---|---|
| Storage temperature | â20 °C ... +80 °C |
| Relative humidity | 45Â %Â ... 75Â % |
| Shock load | 50Â g according to IECÂ 60068-2-27 (mechanical shock) |
| Vibration load | 10Â g according to IECÂ 60068-2-6 (vibration under resonance) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
| Food contact material manufacturer declaration | â |
Classifications
| ECLASS 5.0 | 27200620 |
|---|---|
| ECLASS 5.1.4 | 27200620 |
| ECLASS 6.0 | 27200620 |
| ECLASS 6.2 | 27200620 |
| ECLASS 7.0 | 27200620 |
| ECLASS 8.0 | 27200620 |
| ECLASS 8.1 | 27200620 |
| ECLASS 9.0 | 27200620 |
| ECLASS 10.0 | 27200620 |
| ECLASS 11.0 | 27200620 |
| ECLASS 12.0 | 27200620 |
| ETIM 5.0 | EC000243 |
| ETIM 6.0 | EC000243 |
| ETIM 7.0 | EC000243 |
| ETIM 8.0 | EC000243 |
| UNSPSC 16.0901 | 41112409 |
