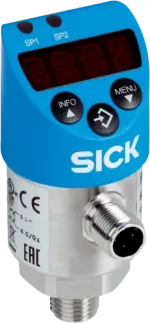

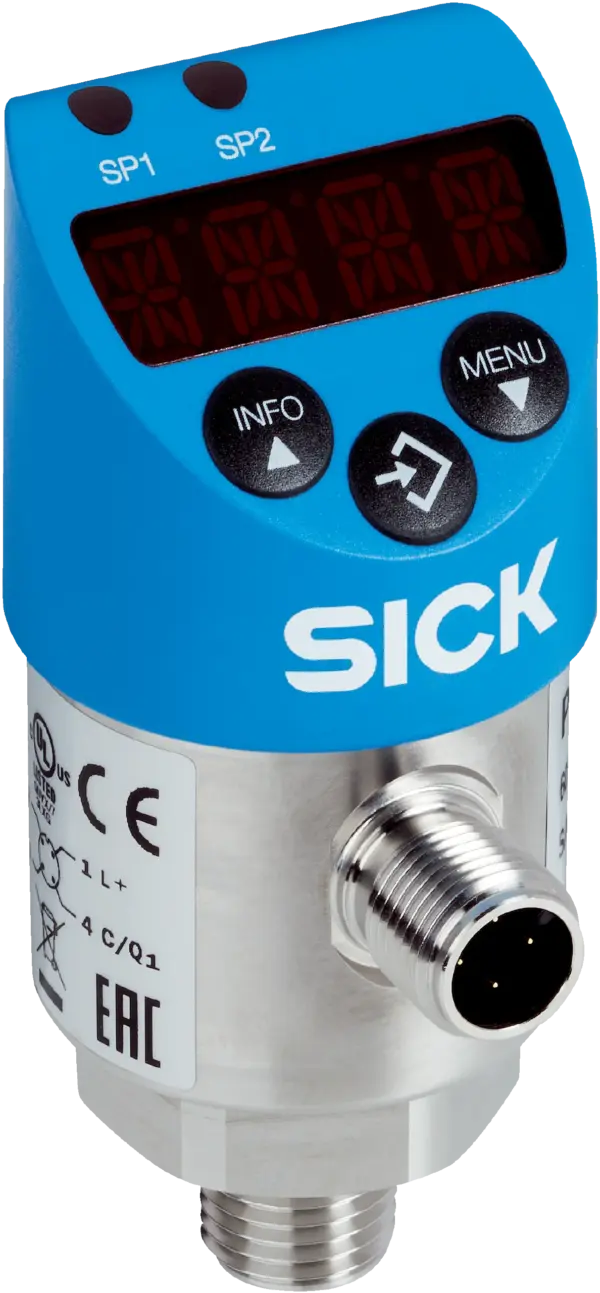

Sick PBS2-AB025SN1SS0LMA0Z
Pressure sensors | PBS plus | PBS2-AB025SN1SS0LMA0Z | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring range: 0 bar … 25 bar, 0 psi … 363 psi | Accuracy: ≤ ± 0.5 %, of the spa…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Pressure sensors | PBS plus | PBS2-AB025SN1SS0LMA0Z | Pressure type: Absolute pressure | Pressure unit: bar psi | Measuring range: 0 bar … 25 bar, 0 psi … 363 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: ¼” NPT | Pressure port: Standard | Process temperature: –20 °C … +85 °C | Seal: Without seal | Communication interface: IO-Link | Output signal: IO-Link/PNP/NPN + PNP/NPN | Connection type: M12 round connector x 1, 4-pin, IP67, IP67 | Supply voltage: 15 V DC … 35 V DC
Specification
Features
| Medium | Liquid, gaseous |
|---|---|
| Pressure type | Absolute pressure |
| Pressure unit | barpsi |
| Measuring range | 0 bar ... 25 bar0 psi ... 363 psi |
| Process temperature | â20 °C ... +85 °C |
| Maximum ohmic load RA | 4 mA ... 20 mA (RA ⤠0.5 kOhm), 0 V ... 10 V, 3-wire (RA > 10 kOhm) |
| Zero point adjustment | Max. + 3Â % of span |
| Output signal | IO-Link/PNP/NPN + PNP/NPN |
| Rotatable housing | Display against housing with electrical connection: 330 °Housing against process connection: 320 ° |
| Display | 14-Segment LED, red, 4-digit, character height 9 mm, can be rotated electronically by 180°Update: 1,000, 500, 200, 100 ms (adjustable) |
Mechanics/electronics
| Communication interface | IO-Link |
|---|---|
| Communication Interface detail | IO-Link V1.1 |
| Process connection | ¼'' NPT |
| Wetted parts | Process connection: 316L stainless steelMeasuring chamber: stainless steel 316L |
| Internal transmission fluid | Silicone oil (only with pressure ranges < 0 bar ... 10 bar and ⤠0 bar abs ... 25 bar abs) |
| Pressure port | Standard |
| Housing material | Lower body: stainless steel 304, Plastic head: PC + ABS, Buttons: TPE-E, Display window: PC |
| Connection type | M12 round connector x 1, 4-pin |
| Supply voltage | 15Â VÂ DCÂ ... 35Â VÂ DC |
| Power consumption | 45Â mA (for configurations without analog output signal)70Â mA (for configurations with analog output signal) |
| Total current consumption | Max. 600Â mA (including switching current) |
| Electrical safety | Protection class: IIIOvervoltage protection: 40Â VÂ DCShort-circuit protection: QA, Q1, Q2 towards MReverse polarity protection: L+ to M |
| Isolation voltage | 500Â VÂ DC |
| CE-conformity | EMC Directive: 2014/30Â /Â EU (ENÂ 61326-1:2013; ENÂ 61326-2-3:2013) |
| Ex-approvals | Pressure equipment directive: 2014/68Â /Â EU, Hazardous materials (RoHS): 2011/65Â /Â EU (ENÂ 50581:2012) |
| Weight sensor | Approx. 220 g |
| Seal | Without seal |
| Enclosure rating | IP67Â 1) |
| Protection class III | â |
| MTTF | 104Â years |
| Pressure peak dampening | Through integrated pressure port 0.6 mm or 0.3 mm for process connection G ¼ according to DIN 3852-E (0.3 mm at and above 10 bar) 2) |
Performance
| Non-linearity | ⤠± 0.25 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2 |
|---|---|
| Accuracy | ⤠± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) |
| Setting accuracy of switching outputs | ⤠± 0.5 % of span |
| Response time | â¤Â 5 ms |
| Long-term drift/one-year stability | ⤠± 0.1 % of span to IEC 61298-2â¤Â 0.2 % of the span according to IEC 61298-2 for measuring range â¤Â 0.6 bar or flush-mounted membrane (0 psi ... 10 psi) |
| Temperature coefficient in rated temperature range | Average TC of the zero point: â¤Â±Â 0.16% of the span / 10 KAverage TC of the span â¤Â±Â 0.16% of the span / 10 K |
| Rated temperature range | 0 °C ... +80 °C |
| Service life | Minimum 100Â Mio. load cycles |
| Temperature error | ⤠± 1.0% of the range, typ., ⤠± 2.5% of the range max. |
Ambient data
| Ambient temperature, operation | â20 °C ... +80 °C |
|---|---|
| Storage temperature | â20 °C ... +70 °C |
| Relative humidity | ⤠75 % |
| Shock load | 50Â g, 6Â ms according to IECÂ 60068-2-27 (mechanical shock) |
| Vibration load | 20 g, 10 Hz ... 2,000 Hz (IEC 60068-2-6, at resonance) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| IO-Link certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27200620 |
|---|---|
| ECLASS 5.1.4 | 27200620 |
| ECLASS 6.0 | 27200620 |
| ECLASS 6.2 | 27200620 |
| ECLASS 7.0 | 27200620 |
| ECLASS 8.0 | 27200620 |
| ECLASS 8.1 | 27200620 |
| ECLASS 9.0 | 27200620 |
| ECLASS 10.0 | 27200620 |
| ECLASS 11.0 | 27200620 |
| ECLASS 12.0 | 27200620 |
| ETIM 5.0 | EC000243 |
| ETIM 6.0 | EC000243 |
| ETIM 7.0 | EC000243 |
| ETIM 8.0 | EC000243 |
| UNSPSC 16.0901 | 41112409 |
