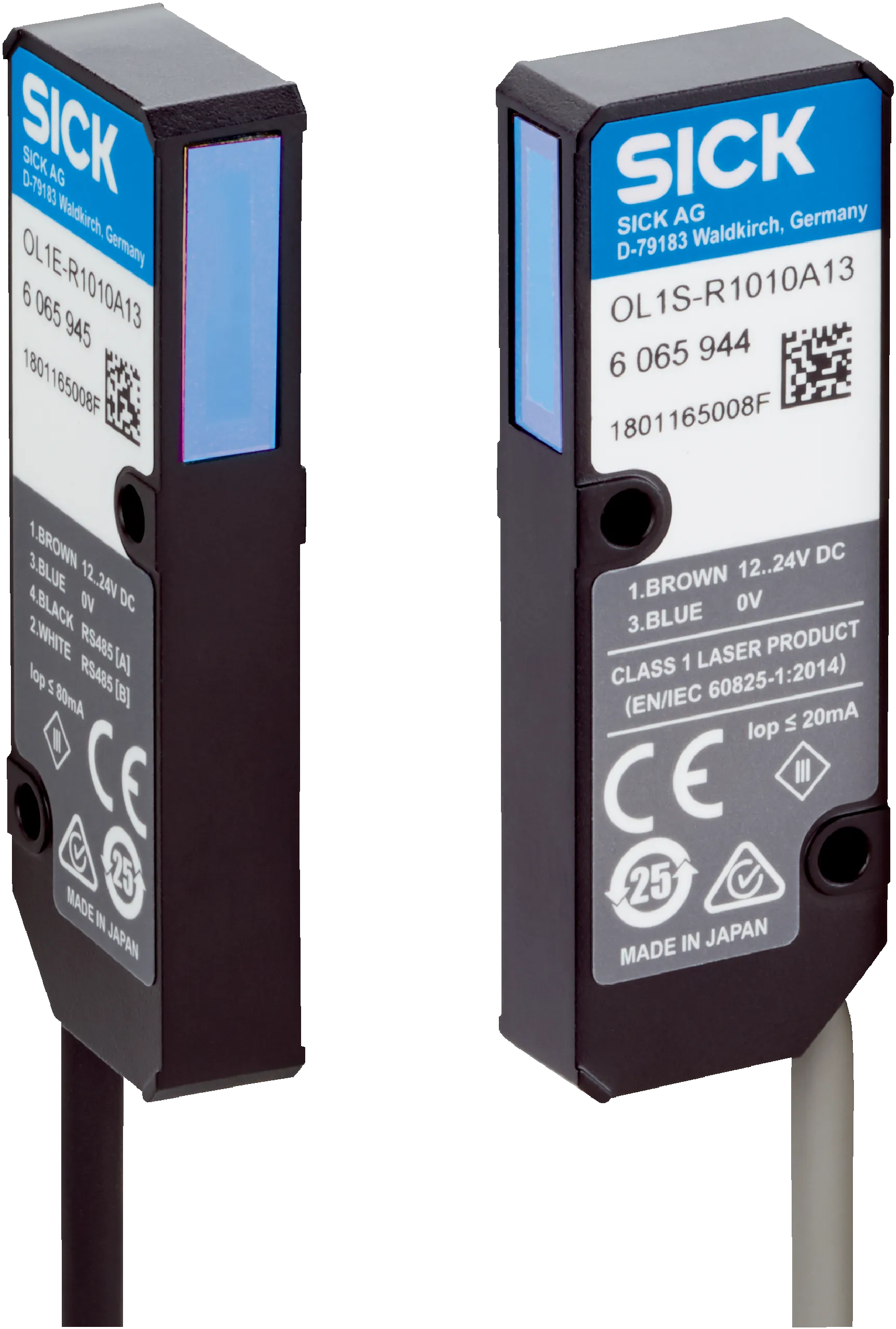

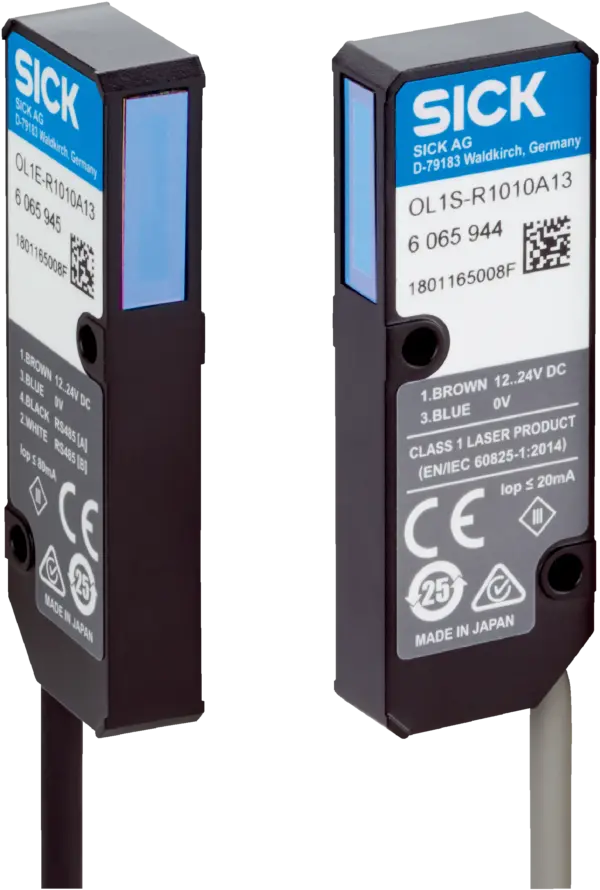

Laser distance sensors | OL1 | OL1S/OL1E-R1010A13 | Communication interface: Serial | Digital output: 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 10 mm | Linearity: ± 40 µm | Laser class: 1 | Typ. light spot size (distance): 3 mm x 14 mm | Housing material: Metal | Connection type: Cable with M8 male connector, 4-pin, 300 mm, Y cable for connection to AOD1 evaluation unit
Specification
Features
| Measuring range | 10Â mm |
|---|---|
| Installation distance | 0 mm ... 300 mm, Sender/receiver |
| Minimum detectable object | 0.2Â mm |
| Repeatability | 10 µm |
| Linearity | ± 40 µm |
| Response time | ≥ 0.5 ms |
| Measuring frequency | ≤ 2 kHz |
| Light source | Laser, red |
| Typ. light spot size (distance) | 3 mm x 14 mm |
| Normative reference | IECÂ 60825-1:2014, ENÂ 60825-1:2014 |
| Laser class | 1 |
| Additional function | Measurement modes: Edge detection or diameter/width measurementAdjustable average filterSensitivity adjustment for measuring transparent objects |
| MTTFD | 101Â years |
| DCavg | 0% |
Interfaces
| Serial | ✔ |
|---|---|
| Remark | For communication with AOD1 evaluation unit |
| Number | 3Â 1) |
| Type | PNP/NPN, selectable |
| Number | 1Â 1) |
| Type | Current output |
| Current | 4 mA ... 20 mA, ≤ 300 Ω |
Electronics
| Supply voltage UB | 12 V DC ... 24 V DC, ± 10%, including residual ripple |
|---|---|
| Power consumption | ≤ 0.96 W, sender 1)≤ 0.24 W, receiver 1) |
| Warm-up time | ≤ 10 min |
| Display | 1Â Status LED (sender)2Â status LEDs (receiver) |
| Enclosure rating | IP50 |
| Protection class | III |
Mechanics
| Dimensions (W x H x D) | 9.6 mm x 61 mm x 21 mm |
|---|---|
| Housing material | Metal (Aluminum die cast) |
| Window material | Glass |
| Weight | 30Â g (sender)30Â g (receiver) |
Ambient data
| Ambient temperature, operation | –10 °C ... +50 °C 1) |
|---|---|
| Ambient temperature, storage | –20 °C ... +60 °C |
| Relative air humidity (non-condensing) | 35Â %Â ... 85Â % |
| Temperature drift | ± 2 µm/K |
| Typ. Ambient light immunity | Artificial light: ≤ 3,000 lxSunlight: ≤ 10,000 lx |
| Vibration resistance | ENÂ 60068-2-6 |
| Shock resistance | ENÂ 60068-2-27 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27270801 |
|---|---|
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
