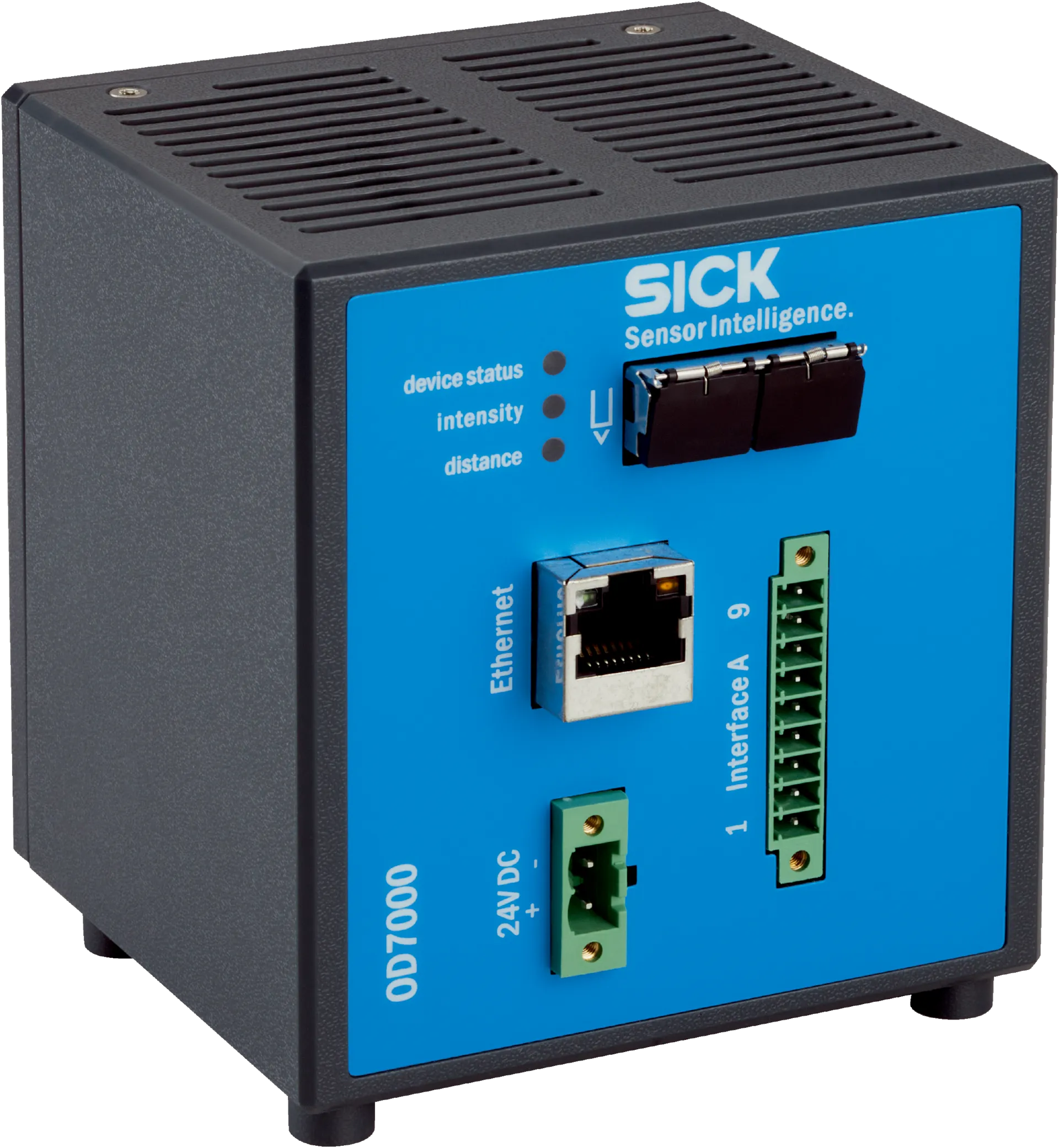

Sick OD7000-10061032
Laser distance sensors | OD7000 | OD7000-10061032 | Communication interface: Serial, Ethernet | Digital output: 0 | Measuring range: 6.2 mm … 6.8 mm | Linearity: ± 0.198 µm | Connection type: Female…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser distance sensors | OD7000 | OD7000-10061032 | Communication interface: Serial, Ethernet | Digital output: 0 | Measuring range: 6.2 mm … 6.8 mm | Linearity: ± 0.198 µm | Connection type: Female connector, RJ-45, Terminal strip, 9-pin
Specification
Features
| Measuring range | 6.2 mm ... 6.8 mm |
|---|---|
| Measuring range | 0.6Â mm |
| Resolution | Axial 0.025 µmLateral 2 µm |
| Linearity | ± 0.198 µm |
| Number of measuring channels | 1Â Â |
| Measuring frequency | â¤Â 10 kHz |
| Light source | LED |
| Special task | Coating thickness measurement |
| LED risk group | Risk group 1Â IECÂ 62471 |
Interfaces
| Serial | â , RS-232, RS-422 |
|---|---|
| Data transmission rate | RS-232: max. 1.8Â MBaud, RS-422: max. 10Â MBaud |
| Ethernet | â , TCP/IP |
| Data transmission rate | 100Â Mbit/s |
| Number | 0 |
Electronics
| Supply voltage UB | DC 24 V, ± 10 % 1) |
|---|---|
| Power consumption | 4Â W |
| Warm-up time | 30Â min |
| Display | 3Â status LEDs |
| Enclosure rating | IP20 (IECÂ 60529) |
| Protection class | III (IECÂ 61140) |
| Electrical safety | IECÂ 61010 |
Mechanics
| Dimensions (W x H x D) | 95 mm x 106 mm x 95 mm |
|---|---|
| Weight | 500Â g |
| Optical fiber length | 3Â m |
Ambient data
| Ambient temperature, operation | 0 °C ... +50 °C |
|---|---|
| Ambient temperature, storage | â20 °C ... +70 °C |
| Relative air humidity (non-condensing) | 30Â %Â ... 75Â % |
| Electromagnetic compatibility (EMC) | Radiated emission: ENÂ 61326-1 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270801 |
|---|---|
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
