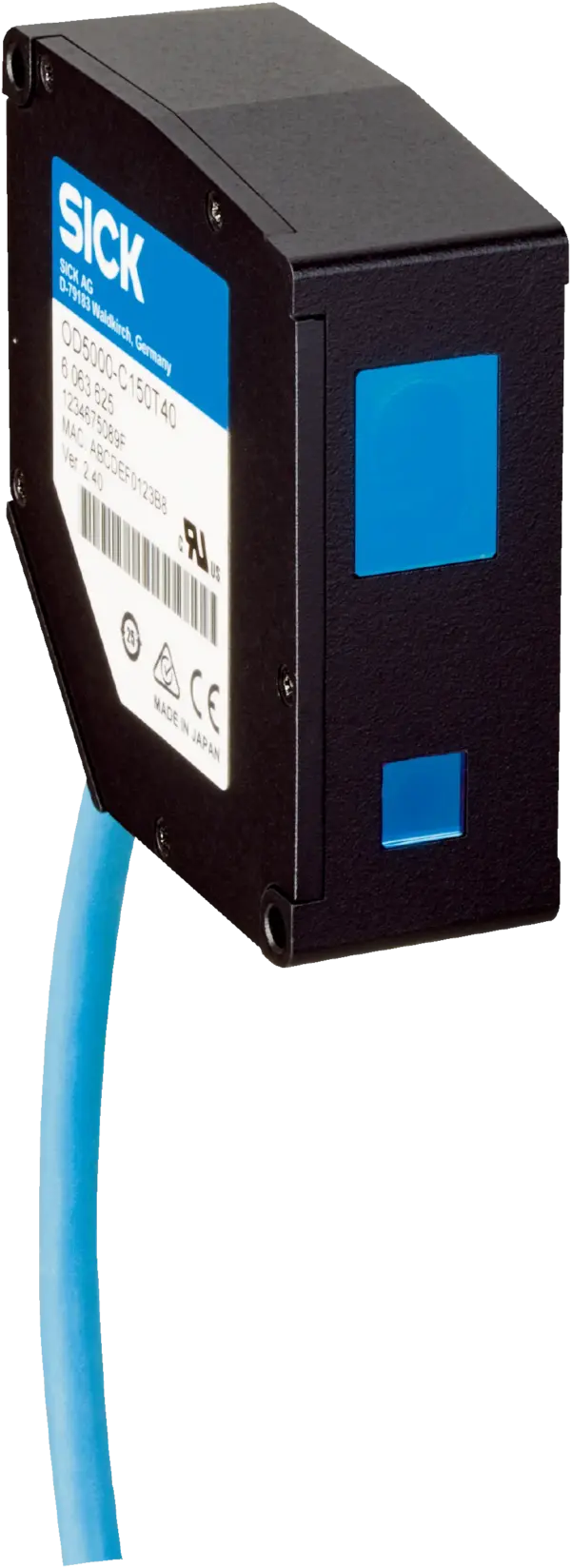

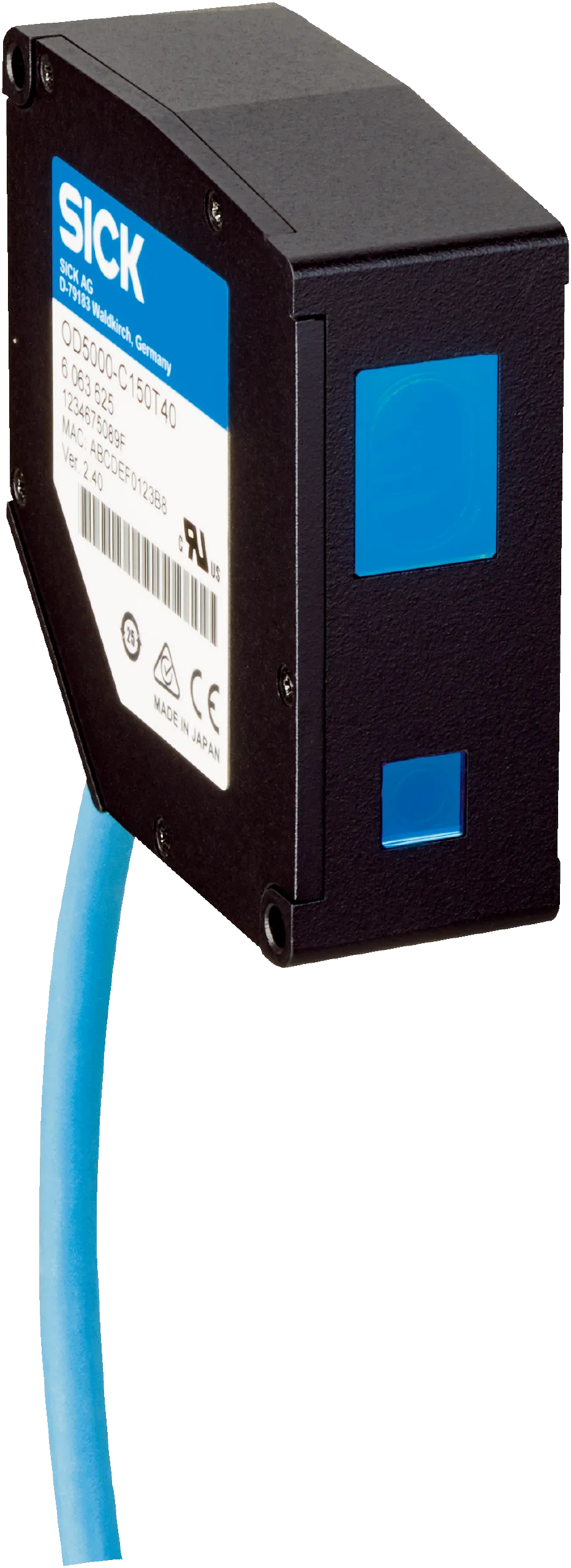

Sick OD5000-C150T40
Laser distance sensors | OD5000 | OD5000-C150T40 | Communication interface: Ethernet | Digital output: 1 … 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 110 mm ….
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser distance sensors | OD5000 | OD5000-C150T40 | Communication interface: Ethernet | Digital output: 1 … 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 110 mm … 190 mm | Linearity: ± 24 µm, ± 32 µm | Laser class: 1 | Typ. light spot size (distance): Ø 120 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
Specification
Features
| Measuring range | 110 mm ... 190 mm |
|---|---|
| Repeatability | 0.2 µm 1) 2) |
| Linearity | Diffuse ± 24 µm, Near side 1)Diffuse ± 32 µm, Far side 1)Specular not supported |
| Response time | ⥠0.0125 ms 3) 4) |
| Measuring frequency | â¤Â 80 kHz 5) |
| Output time | ⥠0.0125 ms |
| Light source | Laser, red |
| Typ. light spot size (distance) | à120 µm |
| Normative reference | IECÂ 60825-1:2014, ENÂ 60825-1:2014 |
| Laser class | 1Â 6) |
| Thickness measurement of transparent material | Not supported |
| MTTFD | 61Â years |
| DCavg | 0% |
Interfaces
| Ethernet | â , TCP/IP, UDP |
|---|---|
| Digital input | In1Can be used as laser off, external teach-in, or deactivated |
| Number | 1Â ... 3Â 1) |
| Type | PNP/NPN, selectable |
| Number | 1 |
| Type | Current output |
| Function | Optional over evaluation unit AOD1 |
| Current | 4 mA ... 20 mA, â¤Â 300 Ω |
Electronics
| Supply voltage UB | DC 12 V ... 24 V, ± 10%, including residual ripple |
|---|---|
| Power consumption | 180Â mA, at 24Â V |
| Warm-up time | <Â 10Â min |
| Display | Status LEDs |
| Enclosure rating | IP67 |
| Protection class | III (ENÂ 50178) |
Mechanics
| Dimensions (W x H x D) | 25.9 mm x 71.5 mm x 53.2 mm |
|---|---|
| Housing material | Metal (Aluminum die cast) |
| Window material | Plastic (PMMA) |
| Weight | 280Â g |
Ambient data
| Ambient temperature, operation | â10 °C ... +50 °C, Operating temperature at VS = 24 V |
|---|---|
| Ambient temperature, storage | â20 °C ... +60 °C |
| Relative air humidity (non-condensing) | 35Â %Â ... 85Â % |
| Temperature drift | ± 0.01 % FS/K at â10 °C ... +40 °C (FS = Full Scale = sensor measuring range)± 0.03 % FS/K at +40 °C ... +50 °C (FS = Full Scale = sensor measuring range) |
| Typ. Ambient light immunity | Artificial light: â¤Â 3,000 lx 1)Sunlight: â¤Â 10,000 lx |
| Vibration resistance | ENÂ 60068-2-6, ENÂ 60068-2-64 |
| Shock resistance | ENÂ 60068-2-27 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270801 |
|---|---|
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
