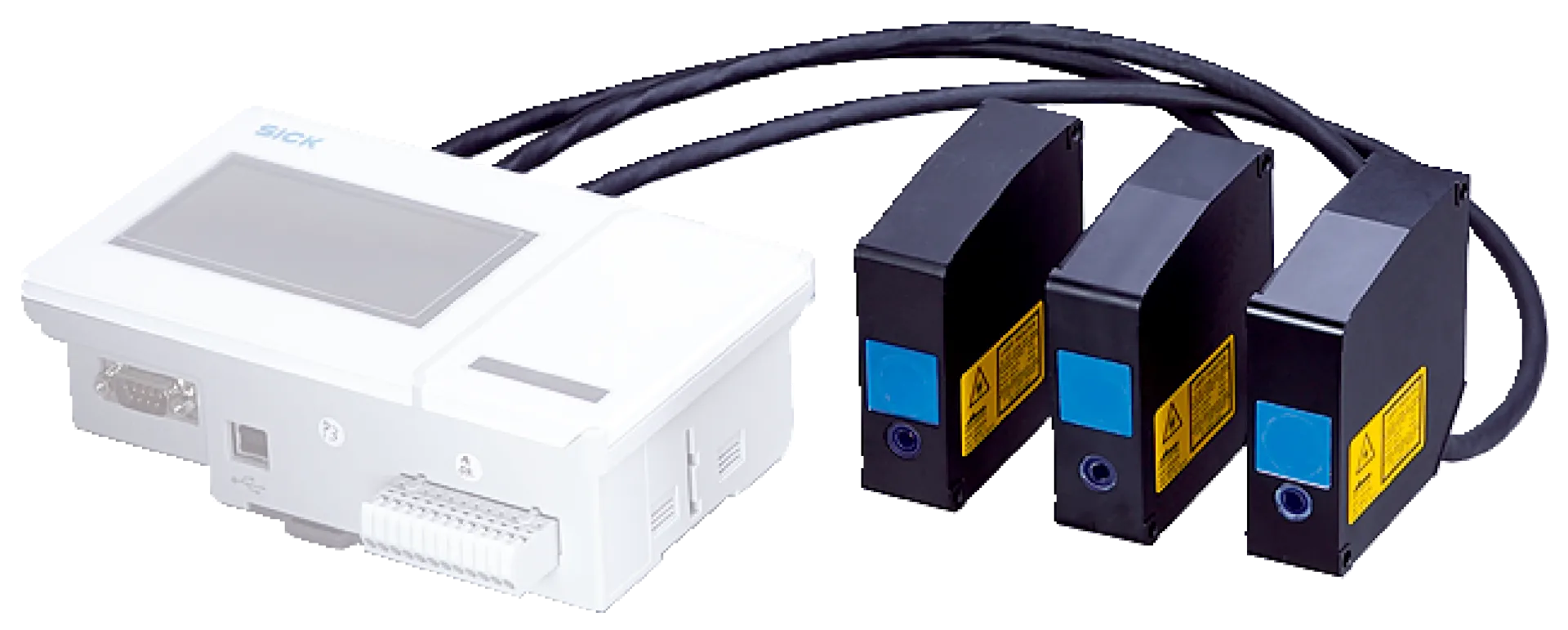

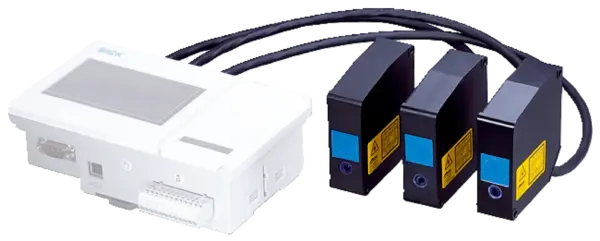

Sick OD5-25W01
Laser distance sensors | OD Precision | OD5-25W01 | Communication interface: Serial | Digital output: 5 x PNP, NPN | Type of analog output: Current output / voltage output | Measuring range: 24 mm ……
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser distance sensors | OD Precision | OD5-25W01 | Communication interface: Serial | Digital output: 5 x PNP, NPN | Type of analog output: Current output / voltage output | Measuring range: 24 mm … 26 mm | Linearity: ± 1.6 µm | Laser class: 1 | Typ. light spot size (distance): 100 µm x 700 µm (25 mm) | Housing material: Metal | Connection type: Cable with male connector, 0.5 m
Specification
Features
| System part | Sensor head |
|---|---|
| Measuring range | 24 mm ... 26 mm 1) |
| Repeatability | 0.02 µm 2) |
| Linearity | ± 1.6 µm 2) |
| Response time | ⥠0.1 ms 3) 4) |
| Measuring frequency | â¤Â 10 kHz 1) 4) |
| Output time | ⥠0.1 ms |
| Light source | Laser, red |
| Typ. light spot size (distance) | 100 µm x 700 µm (25 mm) |
| Normative reference | IECÂ 60825-1:2014, ENÂ 60825-1:2014 |
| Laser class | 1Â 5) |
| Special task | Thickness measurement of transparent material |
| Additional function | Mean-value setting 1 ⦠4,096xSelectable measuring frequency (automatic / 0.1 ms ... 3.2 ms)Automatic sensitivity adjustmentManual sensitivity adjustmentMutual interferenceGlass thickness measurement |
| Thickness measurement of transparent material | 0.3 mm ... 2 mm |
| Note on use | OD Precision sensor head can be used in combination with AOD5-P/N1 or stand-alone via RS-422 |
| MTTFD | 101Â years |
| DCavg | 0% |
Interfaces
| Serial | â , RS-422 |
|---|---|
| Remark | RS-232 optional via external evaluation unit AOD5 |
| Number | 5Â 1) |
| Type | PNP / NPN |
| Maximum output current IA | â¤Â 100 mA |
| Number | 3Â 1) |
| Type | Current output / voltage output |
| Current | 4 mA ... 20 mA, â¤Â 300 Ω |
| Voltage | 0Â VÂ ... 10Â VÂ 3) |
| Laser-off input | 1Â x laser-off |
Electronics
| Supply voltage UB | DC 12Â VÂ ... 24Â VÂ 1) |
|---|---|
| Warm-up time | â¤Â 5 min |
| Display | LEDs, 4'' color display on optional evaluation unit |
| Enclosure rating | IP67 |
| Protection class | III |
Mechanics
| Dimensions (W x H x D) | 29 mm x 78 mm x 75 mm |
|---|---|
| Housing material | Metal (Aluminum) |
| Window material | Glass |
| Weight | 250 g 1) |
Ambient data
| Ambient temperature, operation | â10 °C ... +50 °C |
|---|---|
| Ambient temperature, storage | â20 °C ... +60 °C |
| Relative air humidity (non-condensing) | 35Â %Â ... 85Â % |
| Temperature drift | ± 0.01 % FS/K (FS = Full Scale = Measuring range of sensor) |
| Typ. Ambient light immunity | Artificial light: â¤Â 3,000 lxSunlight: â¤Â 10,000 lx |
| Vibration resistance | 10 Hz ... 55 Hz (amplitude 1.5 mm, x-, y-, z-axis 2 hours each) |
| Shock resistance | 50Â G (x, y, z axis 3Â times each) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270801 |
|---|---|
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
