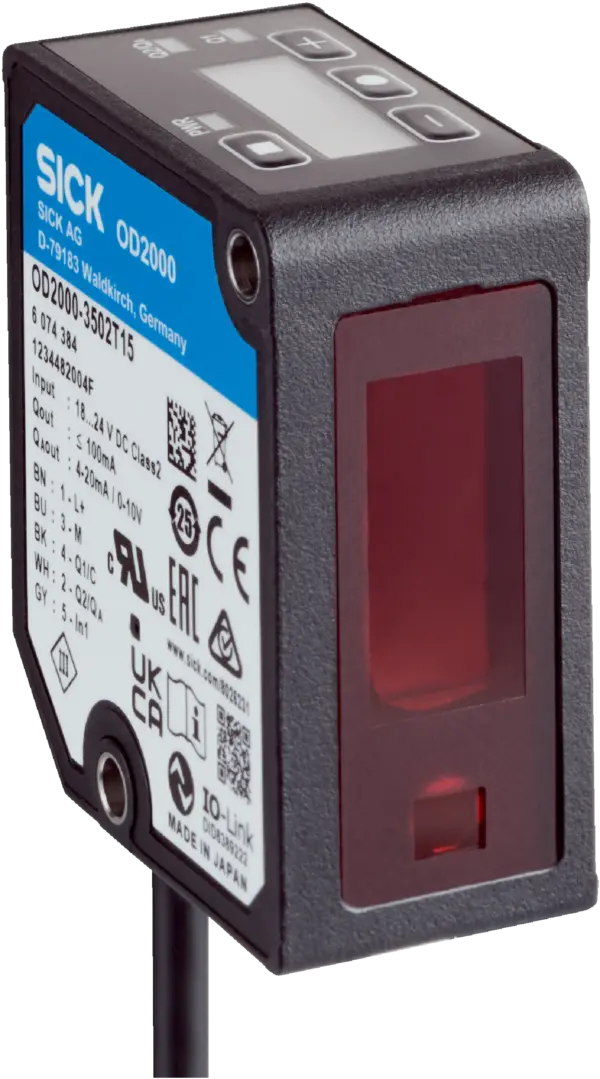

Sick OD2000-2452T15
Laser distance sensors | OD2000 | OD2000-2452T15 | Communication interface: IO-Link | Digital output: 2 x PNP/NPN, selectable | Type of analog output: Current output / voltage output | Measuring range…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser distance sensors | OD2000 | OD2000-2452T15 | Communication interface: IO-Link | Digital output: 2 x PNP/NPN, selectable | Type of analog output: Current output / voltage output | Measuring range: 70 mm … 420 mm | Linearity: ± 350 µm | Laser class: 2 | Typ. light spot size (distance): Ø 500 µm (245 mm) | Housing material: Plastic | Connection type: Cable with male connector, M12, 5-pin, A-coded, 30 cm
Specification
Features
| Measuring range | 70 mm ... 420 mm 1) |
|---|---|
| Repeatability | 10 µm 2) 3) 4) |
| Linearity | ± 350 µm 2) 4) 5) |
| Response time | ≥ 0.533 ms 6) |
| Measuring frequency | ≤ 7.5 kHz |
| Output time | ≥ 0.1333 ms |
| Light source | Laser, red |
| Typ. light spot size (distance) | Ø 500 µm (245 mm) |
| Normative reference | IECÂ 60825-1:2014, ENÂ 60825-1:2014 |
| Laser class | 2Â 7) |
| Additional function | Adjustable average value or media filterSwitching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB)Teach-in of digital outputInvertable digital outputTeach-in of analog outputInvertable analog outputSwitchable analog output (mA / V)Multifunctional input: sender off/hold functions/deactivatedSwitch-off displayLock user interfaceDisplay can be rotated by 180°Alarm functionEdge height jumpTime functions (ON/OFF delay, 1 shot)region of interest |
| MTTFD | 107Â years |
| DCavg | 0% |
Interfaces
| IO-Link | ✔ , IO-Link V1.1 |
|---|---|
| Function | Process data, parameterization, diagnosis, data storage |
| Data transmission rate | 230,4Â kbit/s (COM3), Process data length 6Â bytes, min. cycle time 0.7Â ms |
| Digital input | In1Can be used as sender off, trigger for hold functions, or deactivated |
| Number | 2Â 1) |
| Type | PNP/NPN, selectable |
| Number | 1 |
| Type | Current output / voltage output |
| Function | Selectable |
| Current | 4 mA ... 20 mA, ≤ 300 Ω |
| Voltage | 0 V ... 10 V, > 10,000 Ω |
| Resolution | 16Â bit |
Electronics
| Supply voltage UB | DC 18 V ... 24 V, ± 10%, including residual ripple 1) |
|---|---|
| Power consumption | 1.5Â W, At 24Â VÂ DCÂ 2) |
| Warm-up time | <Â 30Â min |
| Display | OLED display, status LEDs |
| Enclosure rating | IP67 |
| Protection class | III (ENÂ 50178) |
| Electrical safety | IECÂ 61010-1 AMD 1:2016-12 |
Mechanics
| Dimensions (W x H x D) | 27 mm x 60 mm x 50 mm |
|---|---|
| Control elements | 4Â buttons |
| Housing material | Plastic (PBT) |
| Window material | Plastic (PMMA) |
| Weight | 90Â g |
Ambient data
| Ambient temperature, operation | –10 °C ... +50 °C, Operating temperature at VS = 24 V |
|---|---|
| Ambient temperature, storage | –20 °C ... +60 °C |
| Relative air humidity (non-condensing) | 35Â %Â ... 85Â % |
| Temperature drift | 210 µm/K |
| Typ. Ambient light immunity | Artificial light: ≤ 3,000 lx 1)Sunlight: ≤ 10,000 lx |
| Vibration resistance | ENÂ 60068-2-6, ENÂ 60068-2-64 |
| Shock resistance | ENÂ 60068-2-27 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27270801 |
|---|---|
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
