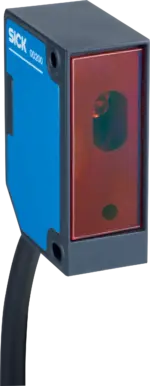

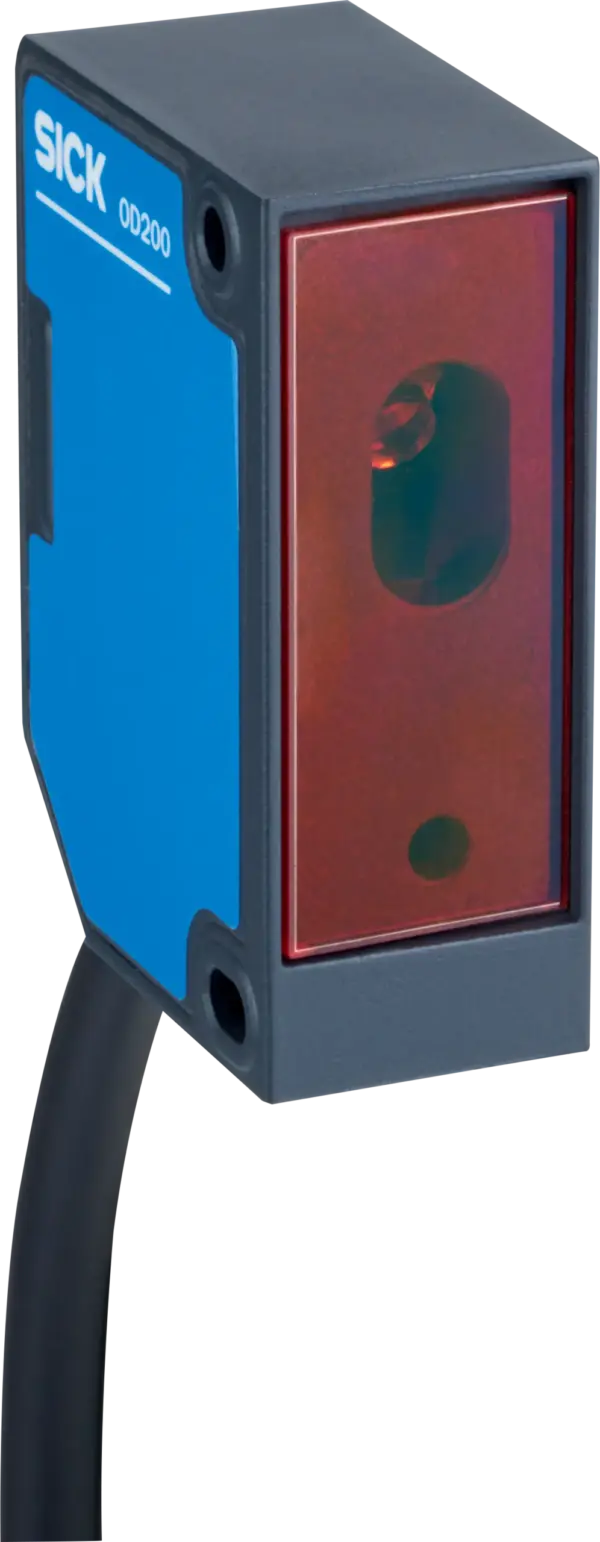

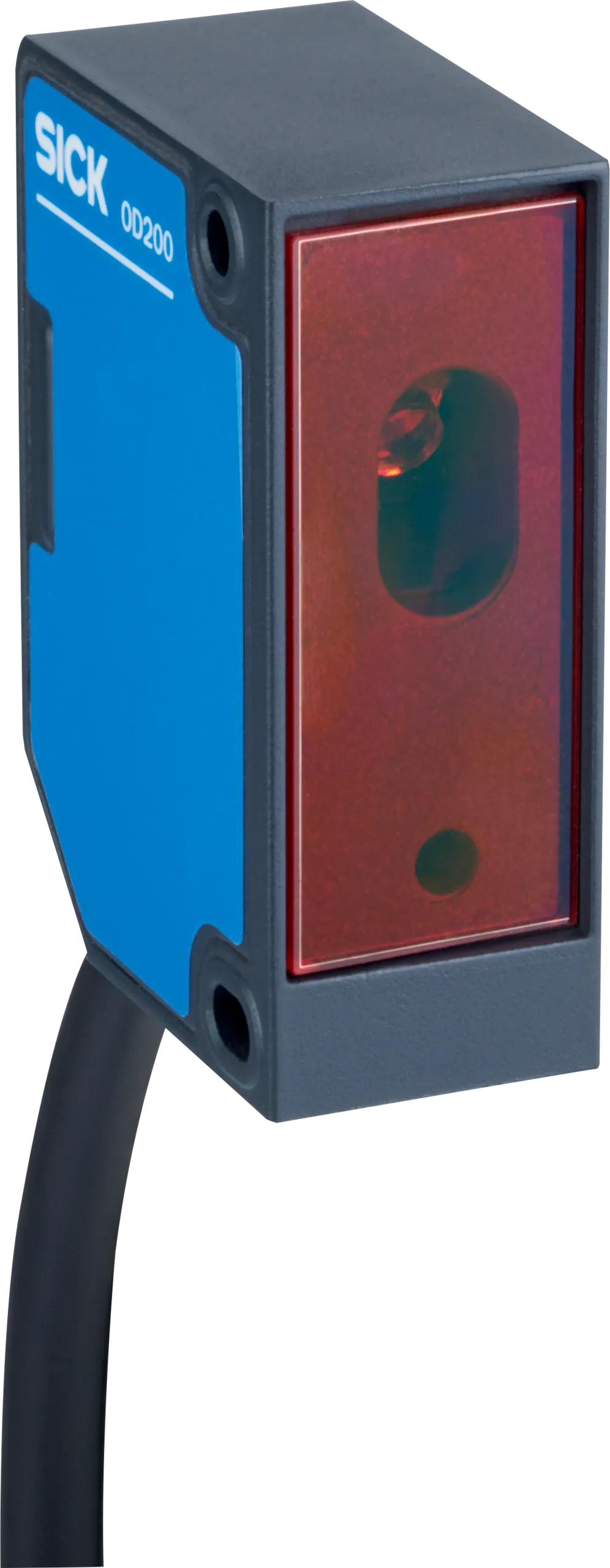

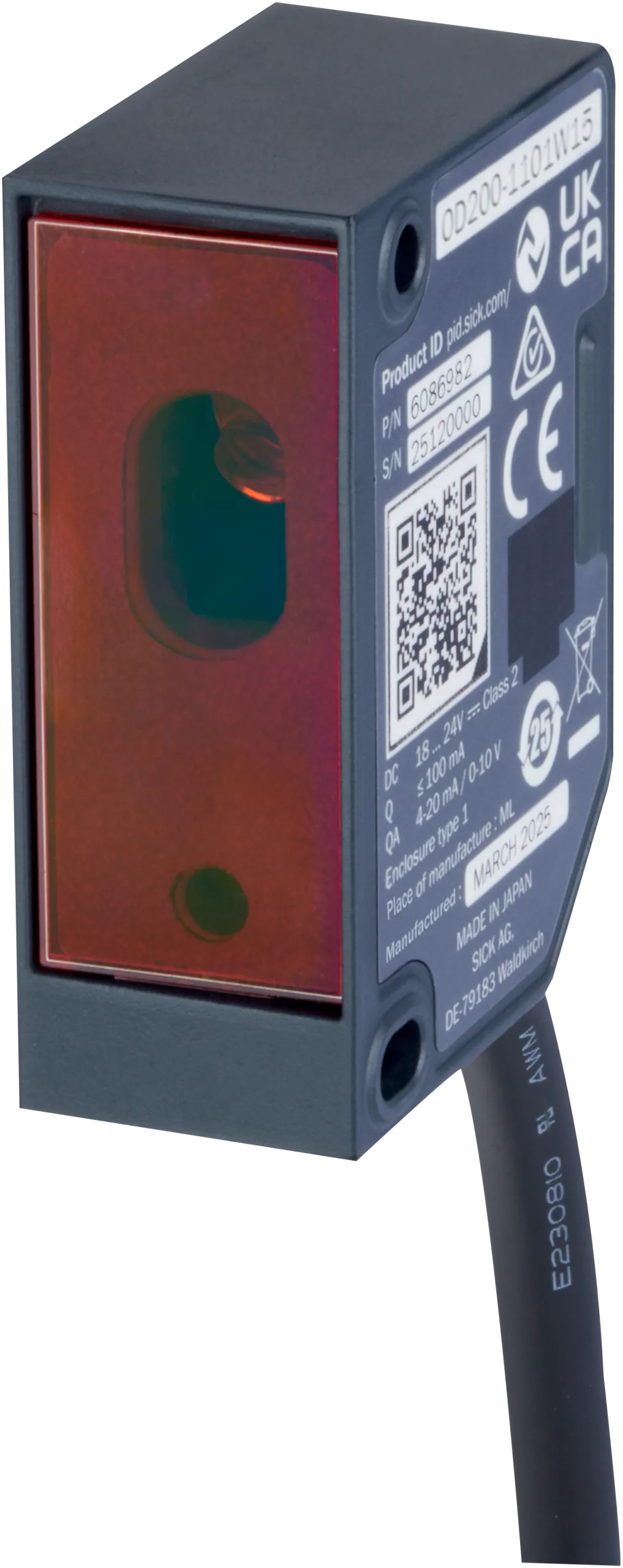

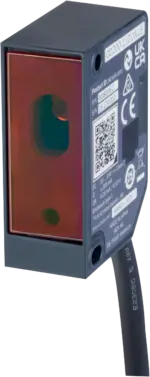

Sick OD200-1101W15
Laser distance sensors | OD200 | OD200-1101W15 | Communication interface: IO-Link | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output / voltage output | Measuring range:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser distance sensors | OD200 | OD200-1101W15 | Communication interface: IO-Link | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output / voltage output | Measuring range: 60 mm … 160 mm | Linearity: ± 100 µm | Laser class: 1 | Typ. light spot size (distance): 500 µm x 1,600 µm (110 mm) | Housing material: Metal | Connection type: Cable with plug M12, 5-pin, 345 mm
Specification
Features
| Measuring range | 60 mm ... 160 mm 1) |
|---|---|
| Repeatability | 20 µm 2) 3) 4) |
| Linearity | ± 100 µm 4) 5) 6) |
| Response time | ≥ 1 ms 7) |
| Measuring frequency | ≤ 3 kHz |
| Output time | ≥ 0.5 ms |
| Light source | Laser, red |
| Typ. light spot size (distance) | 500 µm x 1,600 µm (110 mm) |
| Normative reference | IECÂ 60825-1:2014, ENÂ 60825-1:2014 |
| Laser class | 1Â 8) |
| Additional function | Adjustable average value or media filter, Switching mode: one-point mode/window mode/two-point mode, Teach-in of digital output, Peak value selection |
| MTTFD | 101Â years |
| DCavg | 0% |
Interfaces
| IO-Link | ✔ , IO-Link V1.1 |
|---|---|
| Function | Process data, parameterization, diagnosis, data storage |
| Data transmission rate | 230,4Â kbit/s (COM3), Process data length 6Â bytes, min. cycle time 0.8Â ms |
| Digital input | In |
| Number | 1 |
| Number | 1Â 1)Â 2) |
| Type | PNP/NPN, selectable |
| Maximum output current IA | ≤ 100 mA |
| Number | 1 |
| Type | Current output / voltage output |
| Function | Selectable |
| Current | 4 mA ... 20 mA, ≤ 300 Ω |
| Voltage | 0 V ... 10 V, > 20,000 Ω |
| Resolution | 16Â bit |
Electronics
| Supply voltage UB | DC 18 V ... 24 V, ± 10%, including residual ripple 1) |
|---|---|
| Power consumption | 1.5Â W, At 24Â VÂ DCÂ 2) |
| Warm-up time | <Â 15Â min |
| Display | OLED display, status LEDs |
| Enclosure rating | IP67 |
| Protection class | III (ENÂ 50178) |
| Electrical safety | IECÂ 60947-5-2 / CSA C22.2Â / No.60947-5-2 |
| Length of male connector | 45Â mm |
| Length of cable | 300Â mm |
| Cable material | PVC |
| Cable diameter | 5.5Â mm |
| Conductor cross section | 0.128 mm² |
Mechanics
| Dimensions (W x H x D) | 18.4 mm x 46.4 mm x 33 mm |
|---|---|
| Control elements | 4Â buttons |
| Housing material | Metal (Aluminum) |
| Window material | Plastic (PMMA) |
| Weight | 55Â g |
Ambient data
| Ambient temperature, operation | –10 °C ... +50 °C, Operating temperature at VS = 24 V |
|---|---|
| Ambient temperature, storage | –20 °C ... +60 °C |
| Relative air humidity (non-condensing) | 35Â %Â ... 85Â % |
| Temperature drift | 30 µm/K 1) |
| Typ. Ambient light immunity | Artificial light: 10,000 lx 2)Sunlight: 10,000 lx |
| Vibration resistance | EN 60068-2-6(IEC 60068-2-6:2007) Sinusoidal resonance measurement: 10 Hz ... 55 Hz, amplitude 1.5 mm, 2 h/axis |
| Shock resistance | EN 60068-2-27(IEC 60068-2-27:2008) 50 g, 11 ms, 6 axes, ± 3 single shocks |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| IO-Link certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27270801 |
|---|---|
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
