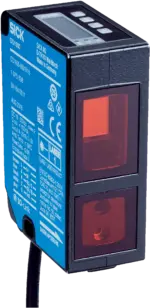

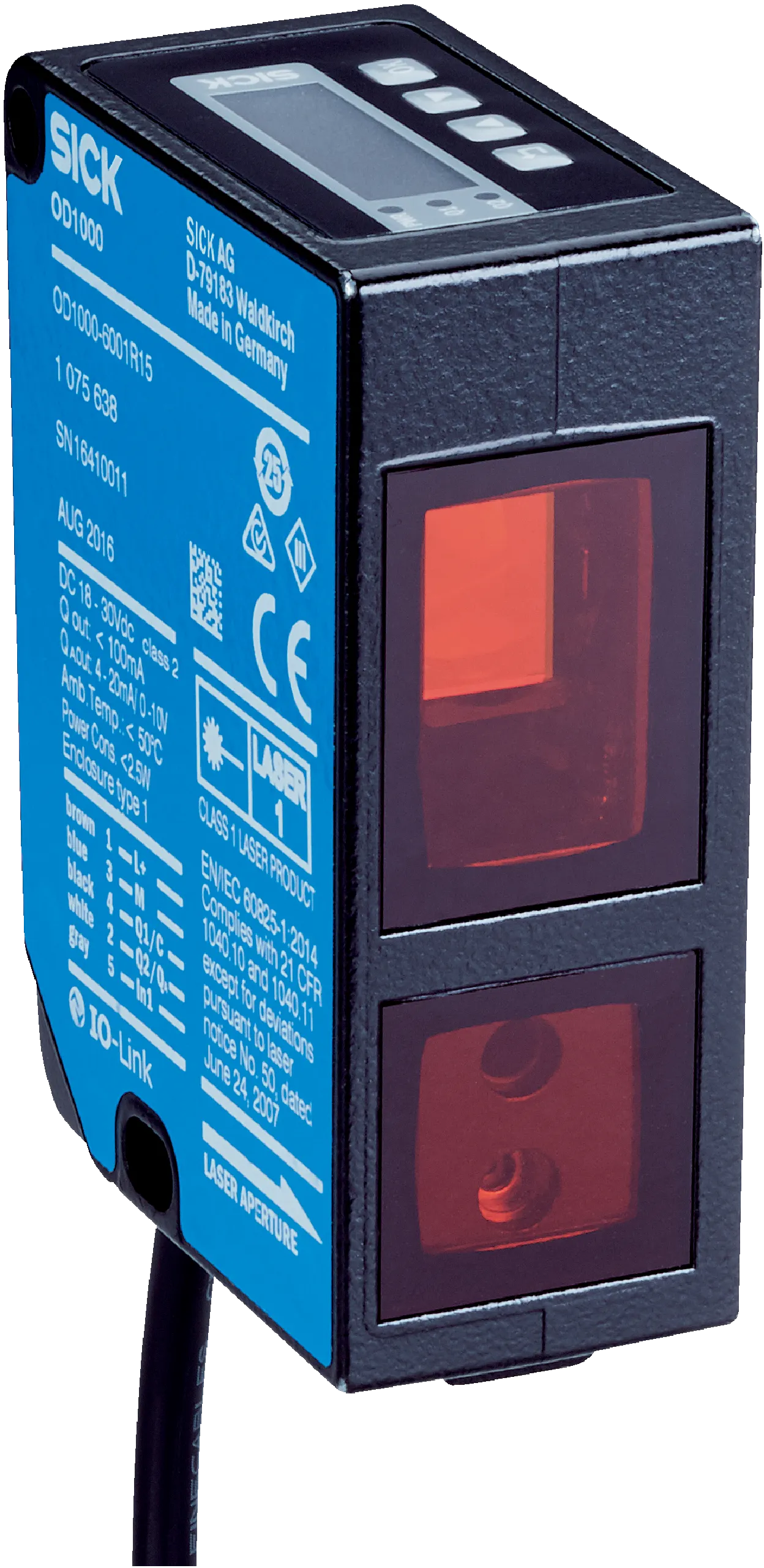

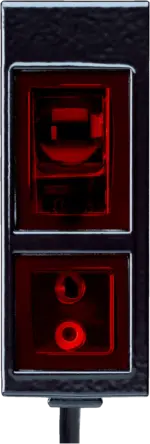

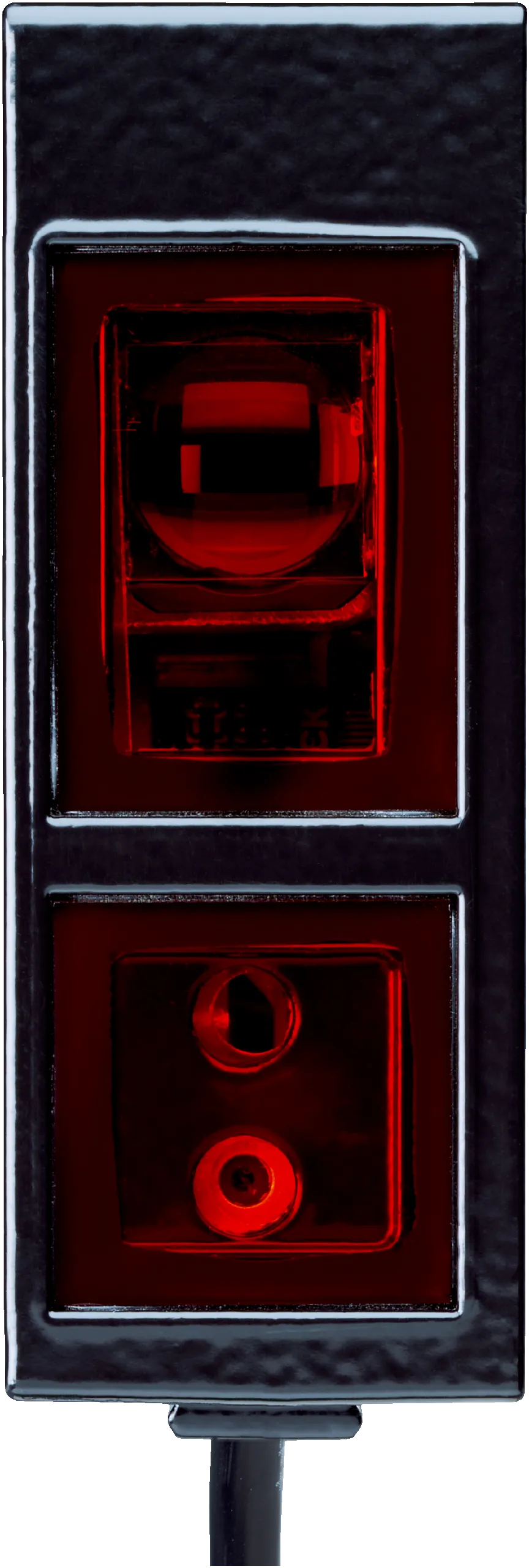

Laser distance sensors | OD1000 | OD1000-6001R15 | Communication interface: IO-Link | Digital output: 2 x push-pull: PNP/NPN | Type of analog output: Current output / voltage output | Measuring range: 200 mm … 1,000 mm | Linearity: ± 1,500 µm | Laser class: 1 | Typ. light spot size (distance): 1.5 mm x 1.5 mm (200 mm … 1,000 mm) | Housing material: Metal | Connection type: Cable with male connector, M12, 5-pin, A-coded, 30 cm
Specification
Features
| Measuring range | 200 mm ... 1,000 mm 1) |
|---|---|
| Repeatability | 0.4 mm 2) 3) |
| Linearity | ± 1,500 µm 2) 4) |
| Response time | ≥ 1.5 ms 5) |
| Measuring frequency | ≤ 3 kHz |
| Output time | ≥ 0.33 ms |
| Light source | Laser, red |
| Typ. light spot size (distance) | 1.5 mm x 1.5 mm (200 mm ... 1,000 mm) |
| Normative reference | IECÂ 60825-1:2014, ENÂ 60825-1:2014 |
| Laser class | 1Â 6) |
| Additional function | Adjustable average value or media filterSwitching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB)Teach-in of digital outputInvertable digital outputTeach-in of analog outputInvertable analog outputSwitchable analog output (mA / V)Multifunctional input: laser off / external teach-in / deactivatedSwitch-off displayLock user interfaceDisplay can be rotated by 180°Alarm functionEdge height jumpTime functions (ON/OFF delay, 1 shot) |
| MTTFD | 100Â years |
| DCavg | 0% |
Interfaces
| IO-Link | ✔ , IO-Link V1.1, IO-Link V1.0 |
|---|---|
| Function | Process data, parameterization, diagnosis, data storage |
| Data transmission rate | 230,4Â kbit/s (COM3) / 38,4Â kbit/s (COM2) |
| Digital input | In1Can be used as laser off, external teach-in, or deactivated |
| Number | 2Â 1) |
| Type | Push-pull: PNP/NPN |
| Number | 1 |
| Type | Current output / voltage output |
| Current | 4 mA ... 20 mA, ≤ 600 Ω |
| Voltage | 0 V ... 10 V, > 20,000 Ω |
| Resolution | 16Â bit |
Electronics
| Supply voltage UB | DC 18Â VÂ ... 30Â VÂ 1) |
|---|---|
| Power consumption | ≤ 2.5 W 2) |
| Ripple | ≤ 5 Vpp 3) |
| Warm-up time | <Â 10Â min |

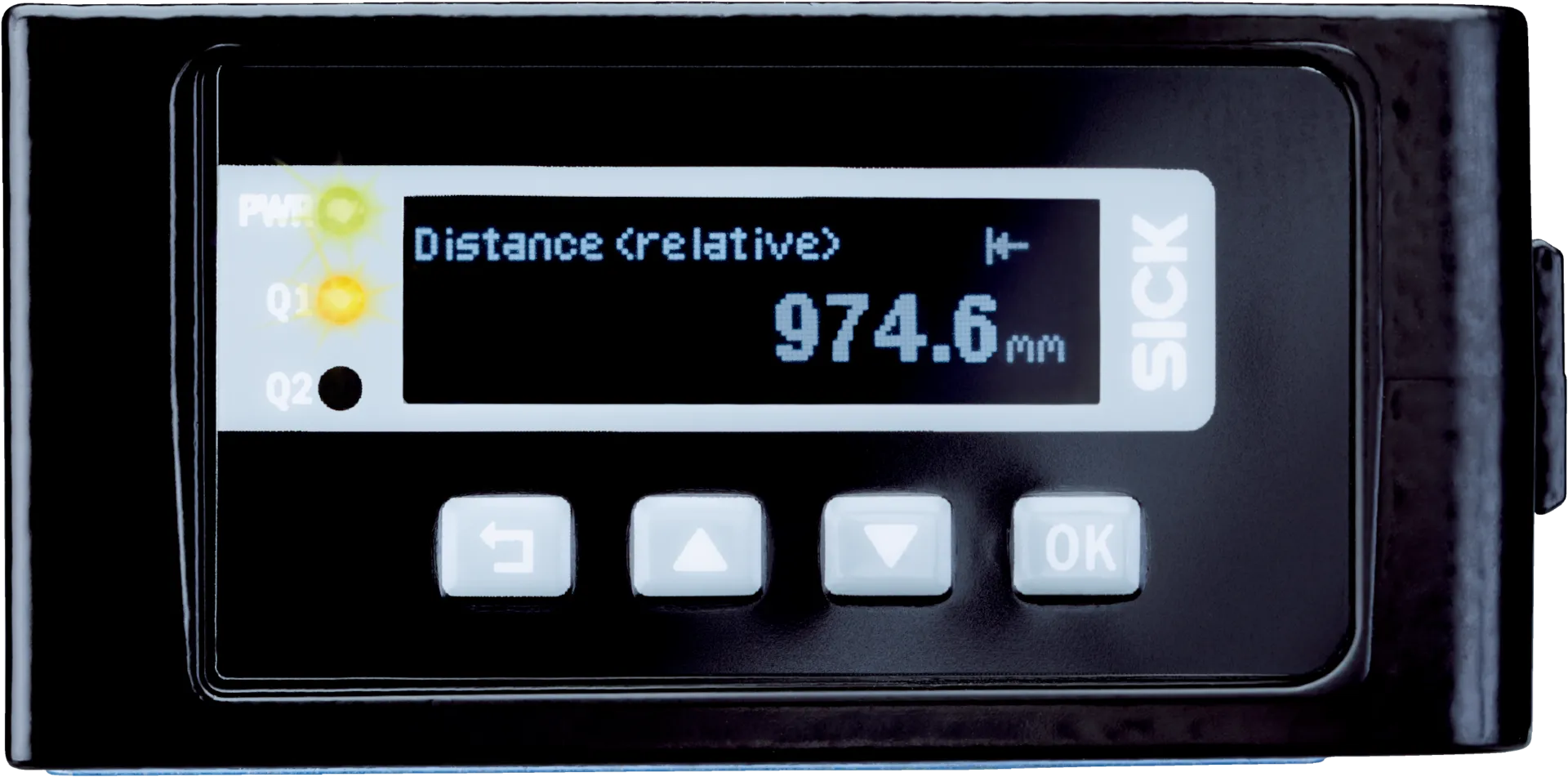

| Display | OLED display, status LEDs |
| Enclosure rating | IP65IP67 |
| Protection class | III (ENÂ 50178) |
Mechanics
| Dimensions (W x H x D) | 25.9 mm x 71.5 mm x 53.2 mm |
|---|---|
| Control elements | 4Â buttons |
| Housing material | Metal (zinc diecast) |
| Window material | Plastic (PMMA) |
| Weight | 280Â g |
Ambient data
| Ambient temperature, operation | –10 °C ... +50 °C, Operating temperature at VS = 24 V |
|---|---|
| Ambient temperature, storage | –20 °C ... +60 °C |
| Temperature drift | 0.15Â mm/K |
| Typ. Ambient light immunity | Artificial light: ≤ 3,000 lx 1)Sunlight: ≤ 10,000 lx |
| Vibration resistance | ENÂ 60068-2-6, ENÂ 60068-2-64 |
| Shock resistance | ENÂ 60068-2-27 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| IO-Link certificate | ✔ |
| cTUVus certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27270801 |
|---|---|
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
