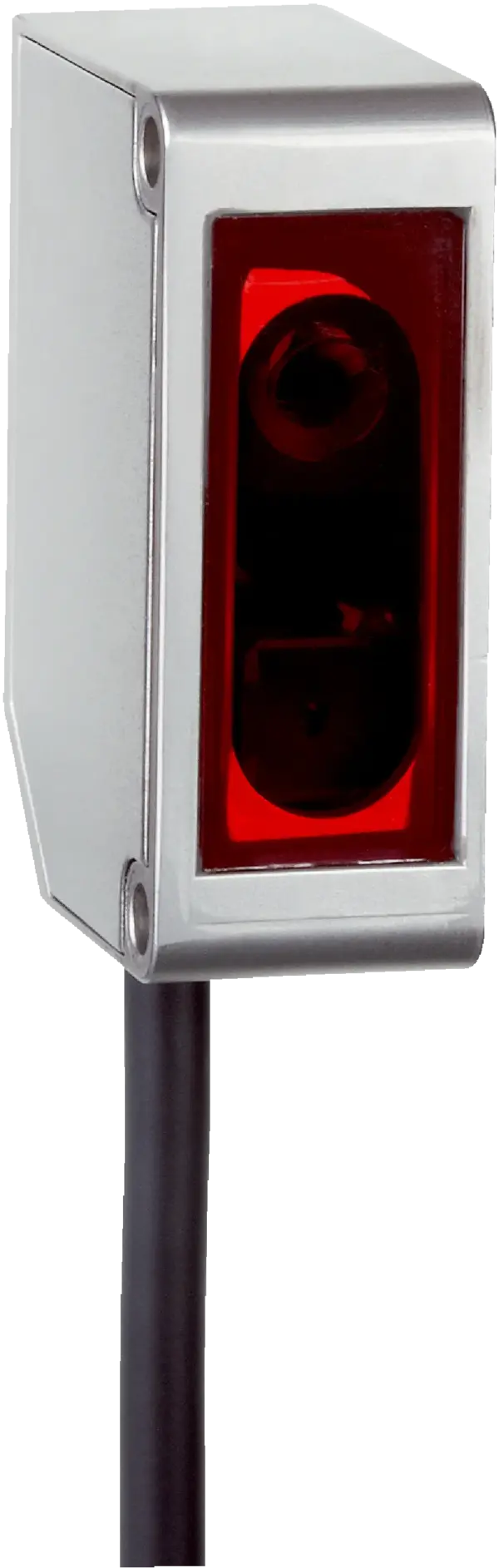

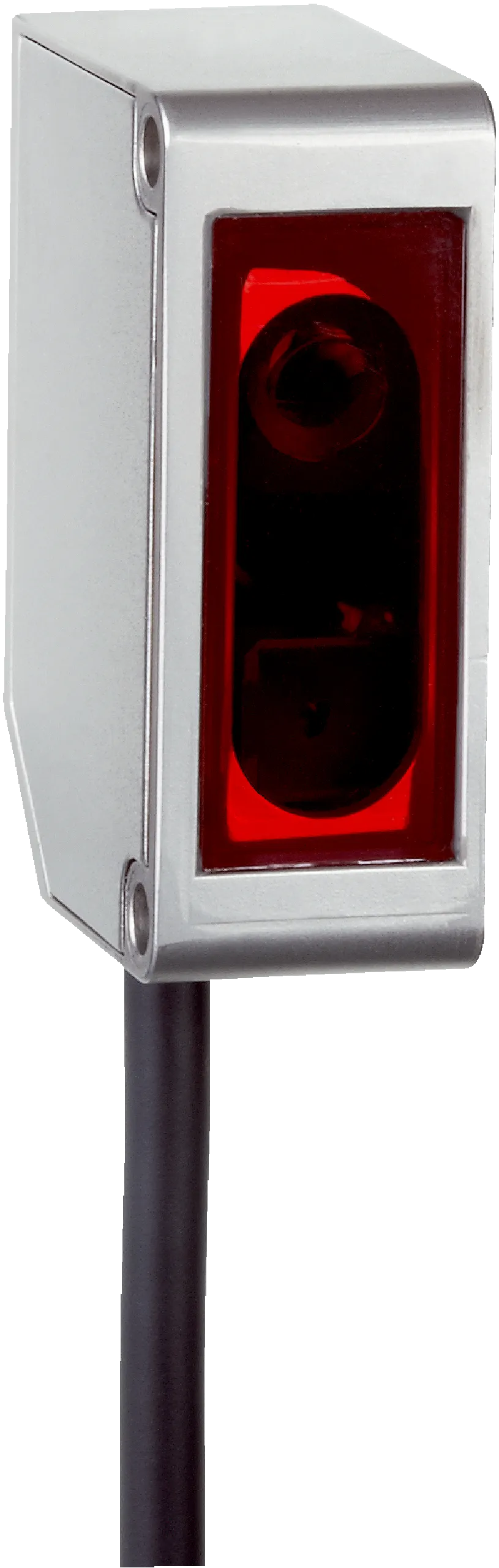

Laser distance sensors | OD Mini | OD1-B015H05U25 | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Voltage output | Measuring range: 10 mm … 20 mm | Linearity: ± 10 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 500 µm (15 mm) | Housing material: Stainless steel | Connection type: Cable with male connector, M12, 5-pin, 30 cm
Specification
Features
| Measuring range | 10 mm ... 20 mm |
|---|---|
| Repeatability | 1 µm 1) 2) |
| Linearity | ± 10 µm 3) |
| Response time | ⥠2 ms 4) |
| Measuring frequency | â¤Â 2 kHz |
| Output time | ⥠0.5 ms |
| Light source | Laser, red |
| Typ. light spot size (distance) | 700 µm x 500 µm (15 mm) |
| Normative reference | IECÂ 60825-1:2014, ENÂ 60825-1:2014 |
| Laser class | 1Â 5) |
| Additional function | Averaging 1 ⦠512xAutomatic or manual sensitivity adjustmentAnalog outputs can be taught inDigital outputs can be taught inInvertable digital outputSwitching mode: window (Wnd)Switching mode: distance to object (DtO)Switiching mode: object between sensor and background (ObSB)Multifunctional input: laser-off / external teach-in / trigger |
| Note | Not free of paint wetting impairment substances. |
| MTTFD | 101Â years |
| DCavg | 0% |
Interfaces
| Number | 1 |
|---|---|
| Type | PNP/NPN, selectable |
| Number | 1 |
| Type | Voltage output |
| Voltage | 0 V ... 10 V, > 10,000 Ω |
| Resolution | 13.4Â bit |
| Multifunctional input (MF) | 1 x 1) |
Electronics
| Supply voltage UB | DC 12Â V (â5 %)Â ... DC 24Â V (+10 %) |
|---|---|
| Power consumption | â¤Â 1.92 W 1) |
| Warm-up time | â¤Â 5 min |
| Display | 4-digit 7-segment display (plus 4Â LEDs for status display) |
| Enclosure rating | IP67 |
| Protection class | III |
Mechanics
| Dimensions (W x H x D) | 17.8 mm x 44.4 mm x 31 mm |
|---|---|
| Control elements | 4Â buttons |
| Housing material | Stainless steel |
| Window material | Plastic (PPSU) |
| Weight | 70Â g |
Ambient data
| Ambient temperature, operation | â10 °C ... +50 °C |
|---|---|
| Ambient temperature, storage | â20 °C ... +60 °C |
| Min. rel. humidity (not condensing) | 35Â % |
| Max. rel. humidity (not condensing) | 95Â % |
| Temperature drift | ± 0.08 % FS/K (FS = Full Scale = Measuring range of sensor) |
| Typ. Ambient light immunity | Artificial light: â¤Â 3,000 lxSunlight: â¤Â 10,000 lx |
| Vibration resistance | 10 Hz ... 55 Hz (amplitude 1.5 mm, x-, y-, z-axis 2 hours each) |
| Shock resistance | 50Â G (x, y, z axis 3Â times each) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270801 |
|---|---|
| ECLASS 5.1.4 | 27270801 |
| ECLASS 6.0 | 27270801 |
| ECLASS 6.2 | 27270801 |
| ECLASS 7.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 8.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 10.0 | 27270801 |
| ECLASS 11.0 | 27270801 |
| ECLASS 12.0 | 27270916 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
