Description

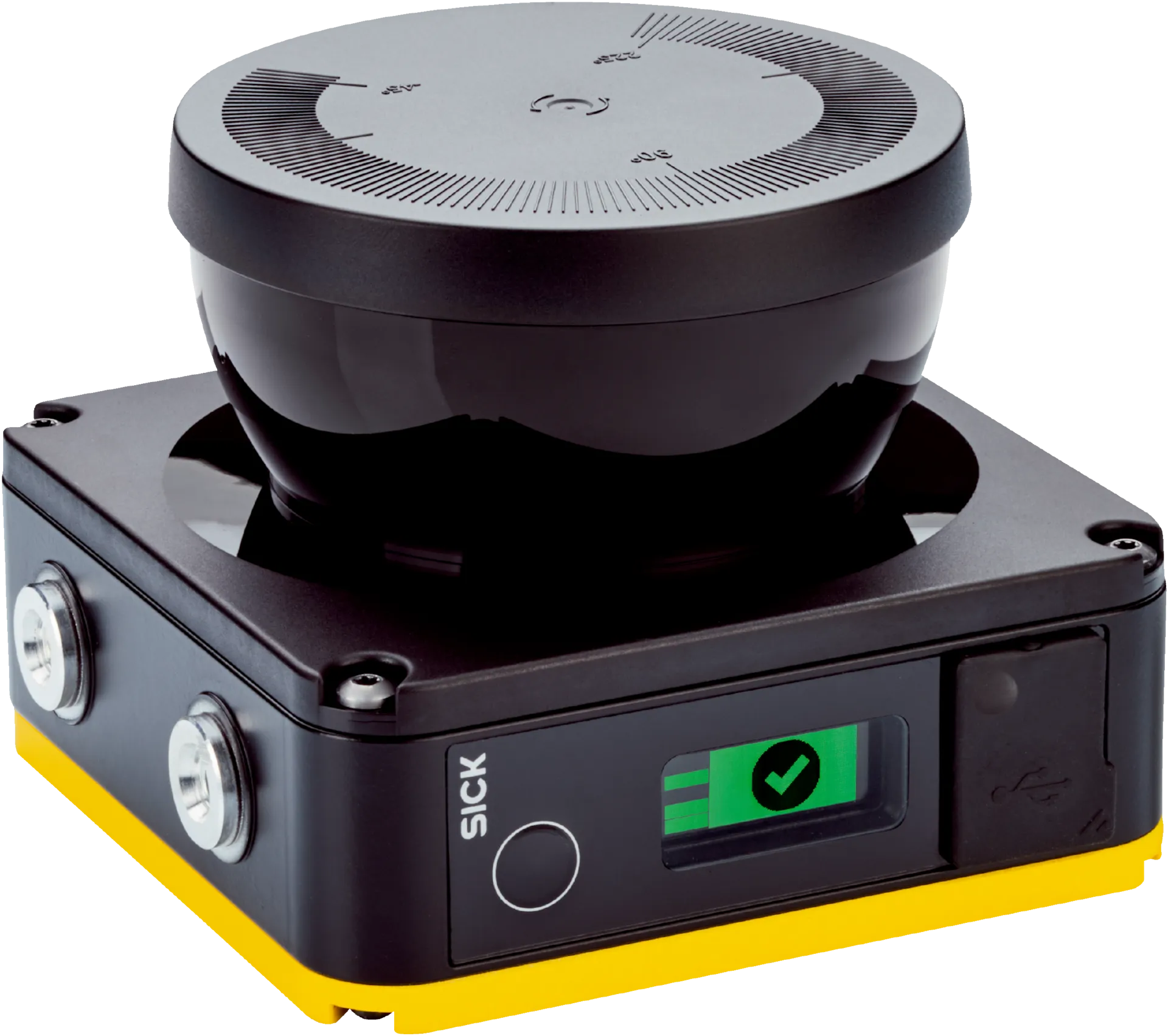

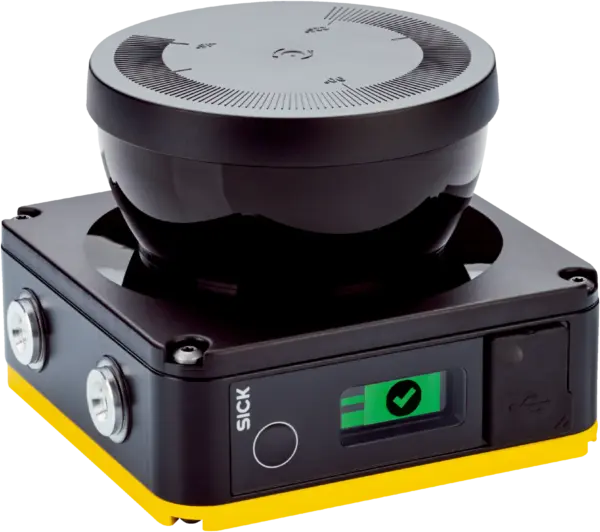

Safety laser scanners | nanoScan3 | NANS3-CAAZ30IZ1 | Product version: nanoScan3 Pro – EtherNet/IP | Model: Sensor without system plug | Integration in the control system: CIP Safety™ over EtherNet/IP™ | Protective field range: 3 m | Scanning angle: 275° | Number of fields: 128
Specification
Features
| Product version | nanoScan3 Pro - EtherNet/IP |
|---|---|
| Model | Sensor without system plug |
| Application | Indoor |
| Protective field range | 3Â m |
| Warning field range | 10Â m |
| Distance measuring range | 40Â m |
| Number of simultaneously monitored fields | ⤠8 1) |
| Number of fields | 128 |
| Number of monitoring cases | 128 |
| Scanning angle | 275° |
| Resolution (can be configured) | 20Â mm30Â mm40Â mm50Â mm60Â mm70Â mm150Â mm200Â mm |
| Angular resolution | 0.17° |
| Response time | 85Â ms |
| Protective field supplement | 65Â mm |
Safety-related parameters
| Type | Type 3Â (IECÂ 61496) |
|---|---|
| Safety integrity level | SIL 2Â (IECÂ 61508) |
| Category | Category 3Â (ENÂ ISOÂ 13849) |
| Performance level | PL d (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 8.0 x 10-8 |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Safe state in the event of a fault | The safety outputs via the network are logic 0. |
Functions
| Restart interlock | â |
|---|---|
| External device monitoring (EDM) | â |
| Multiple sampling | â |
| Monitoring case switching | â |
| Simultaneous monitoring | â |
| Static protective field switching | â |
| Dynamic protective field switching | â |
| Safe contour detection | â |
| Contour as a reference | â |
| Integrated configuration memory | â |
| Measured data output | Via Ethernet |
Interfaces
| Connection type | Depending on system plug |
|---|---|
| OSSD pairs | 0 |
| Safety outputs via network | 8 |
| Configuration method | PC with Safety Designer (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface | USB 2.0, micro USB |
| Services | EtherNet/IP⢠CIP Safety⢠|
| Fieldbus, industrial network | EtherNet/IP⢠|
| RPI (requested packet interval) | 5 ms ... 1,000 ms, multiple of 5 ms |
| Supported protocol versions | Common Industrial Protocol: The CIPÂ Networks Library Volume 1, Edition 3.29 |
| Display elements | Graphic color display, LEDs |
Electronics
| Protection class | III (ENÂ 61140) |
|---|---|
| Supply voltage Vs | 24Â VÂ DC (16.8Â VÂ DCÂ ... 30Â VÂ DC) |
| Power consumption typical | 5.5Â W |
Mechanics
| Dimensions (W x H x D) | 106.6 mm x 80 mm x 117.5 mm (including system plug) |
|---|---|
| Weight | 0.67Â kg |
| Housing material | Aluminum |
| Housing color | RAL 1021Â (yellow), RAL 9005Â (black) |
| Optics cover material | Polycarbonate |
Ambient data
| Enclosure rating | IP65 (IECÂ 60529) |
|---|---|
| Ambient light immunity | ⤠40 klx (IEC 61496-3) 1) |
| Ambient operating temperature | â10 °C ... +50 °C |
| Storage temperature | â25 °C ... +70 °C |
| Vibration resistance | IECÂ 60068-2-6, IECÂ 60068-2-64, IECÂ 60721-3-5, IECÂ TR 60721-4-5, IECÂ 61496-3 |
| Class | 5M1 (IECÂ 60721-3-5) |
| Shock resistance | IECÂ 60068-2-27, IECÂ 60721-3-5, IECÂ TR 60721-4-5, IECÂ 61496-3 |
| Class | 5M1 (IECÂ 60721-3-5) |
| Continuous shock | 50 m/s², 11 ms |
| EMC | IECÂ 61496-1, IECÂ 61000-6-2, IECÂ 61000-6-3 |
Other information
| Type of light | Pulsed laser diode |
|---|---|
| Wave length | 905Â nm |
| Detectable remission factor | 1.8% to several 1000% |
| Laser class | 1Â (21Â CFR 1040.10Â and 1040.11, IECÂ 60825-1) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| UK-Type-Examination approval | â |
| cULus certificate | â |
| EC-Type-Examination approval | â |
| China GB certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27272705 |
|---|---|
| ECLASS 5.1.4 | 27272705 |
| ECLASS 6.0 | 27272705 |
| ECLASS 6.2 | 27272705 |
| ECLASS 7.0 | 27272705 |
| ECLASS 8.0 | 27272705 |
| ECLASS 8.1 | 27272705 |
| ECLASS 9.0 | 27272705 |
| ECLASS 10.0 | 27272705 |
| ECLASS 11.0 | 27272705 |
| ECLASS 12.0 | 27272705 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 39121528 |
