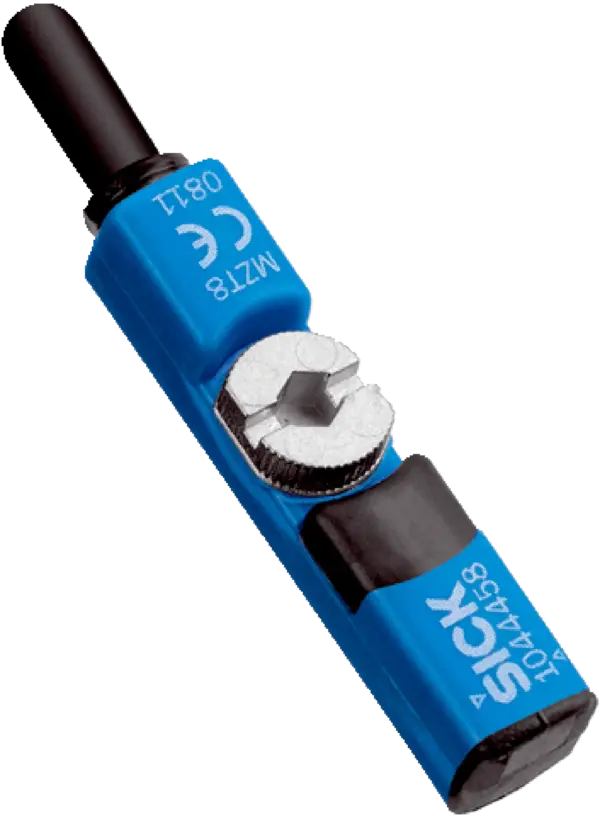

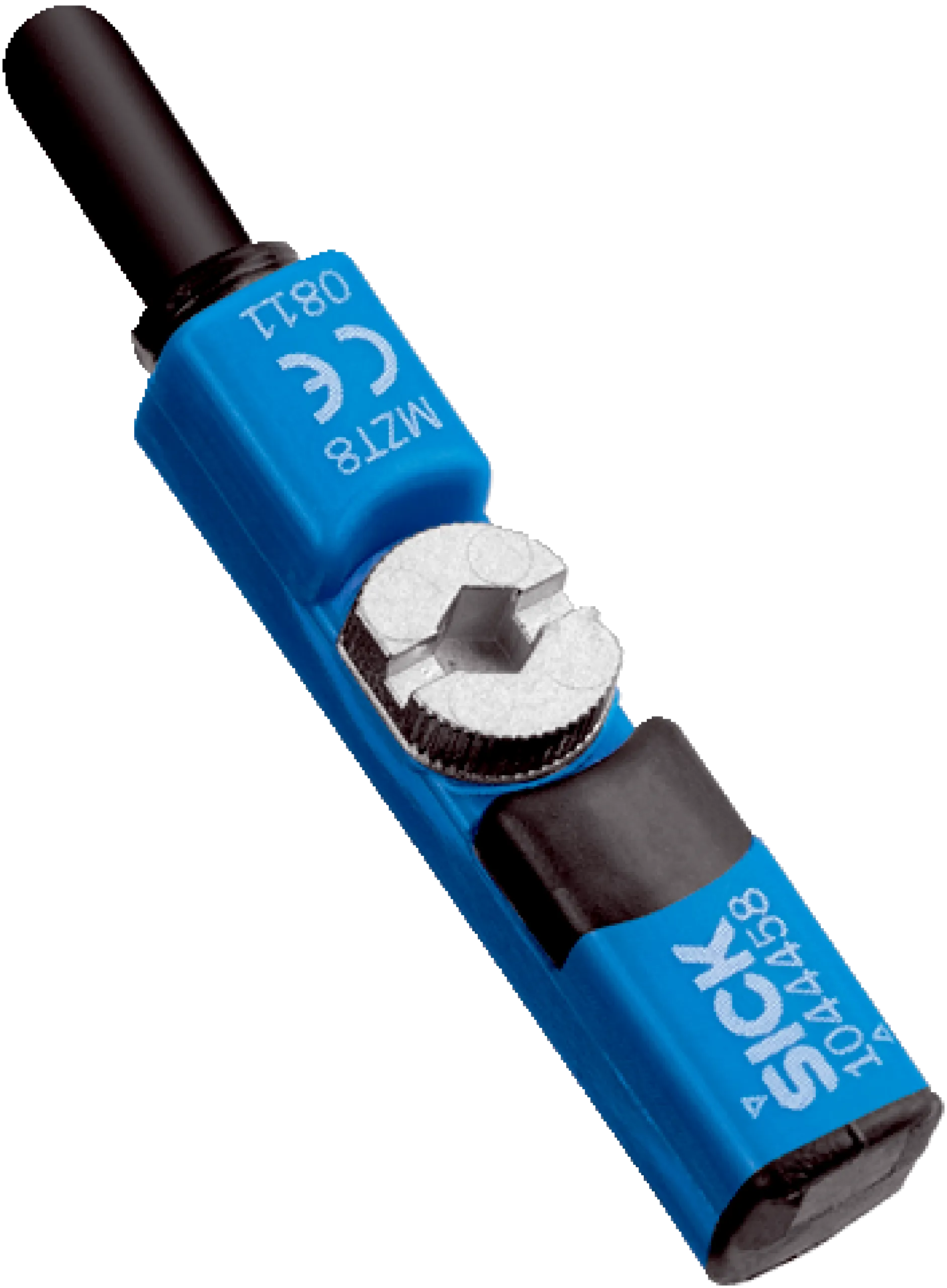

Sick MZT8-03VNS-KW0
Cylinder sensors | MZT8 | MZT8-03VNS-KW0 | Connection type: Cable, 3-wire, ferrules, 2 m | Output function: NO | Electrical wiring: DC 3-wire | Communication interface: –
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Cylinder sensors | MZT8 | MZT8-03VNS-KW0 | Connection type: Cable, 3-wire, ferrules, 2 m | Output function: NO | Electrical wiring: DC 3-wire | Communication interface: –
Specification
Features
| Cylinder type | T-slot |
|---|---|
| Cylinder types with adapter | Profile cylinderTie rod cylinderRound body cylinderDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2 |
| Housing length | 24Â mm |
| Switching output | NPN |
| Switching frequency | 1,000Â Hz |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68Â 1)IP69KÂ 2) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Power consumption | 10Â mA, without load |
| Voltage drop | â¤Â 2.2 V |
| Continuous current Ia | â¤Â 200 mA |
| Protection class | III |
| Time delay before availability | 25Â ms |
| Response sensitivity, typ. | 2.6Â mT |
| Overrun distance, typ. | 3 mm 1) |
| Hysteresis, typ. | 0.7Â mT |
| Reproducibility | â¤Â 0.1 mT 2) |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Status indicator LED | Yes |
| Teach-in | No |
| Power-up pulse protection | Yes |
| Ambient operating temperature | â30 °C ... +80 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to ENÂ 60947-5-2 |
| Connection type | Cable, 3-wire, ferrules, 2Â m |
| Conductor cross section | 0.14 mm² |
| Cable diameter | ÃÂ 2.9Â mm |
| Cable outlet | Axial |
| Housing | Plastic, PA12 |
| Cable | PVC |
| UL File No. | NRKH.E181493 |
Safety-related parameters
| MTTFD | 2,289Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Certificates
| EU declaration of conformity | â |
|---|---|
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270104 |
|---|---|
| ECLASS 5.1.4 | 27270104 |
| ECLASS 6.0 | 27270104 |
| ECLASS 6.2 | 27270104 |
| ECLASS 7.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 8.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 10.0 | 27270104 |
| ECLASS 11.0 | 27270104 |
| ECLASS 12.0 | 27274301 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
