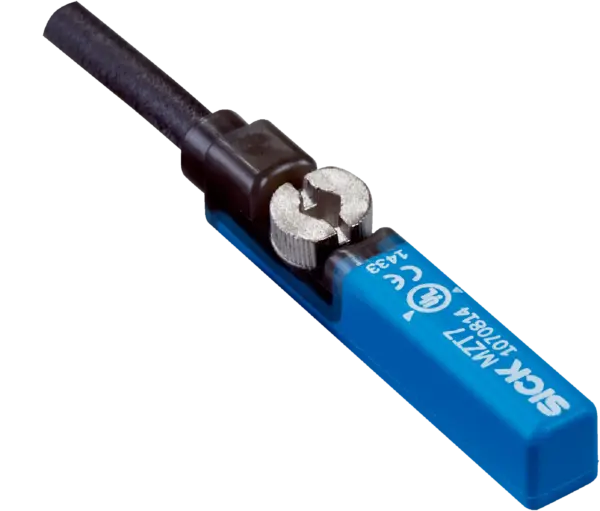

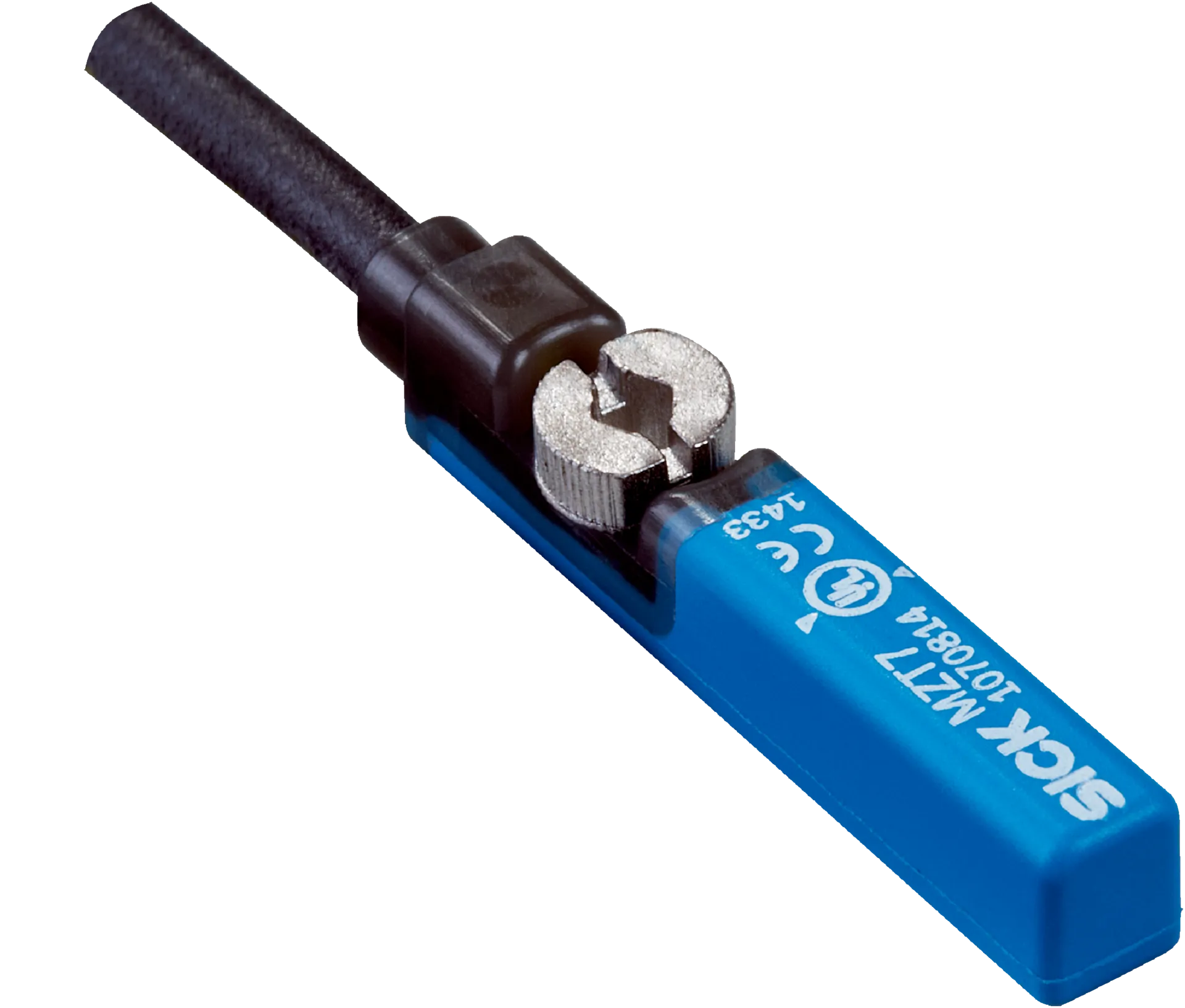

Sick MZT7-03VPS-KP0
Cylinder sensors | MZT7 | MZT7-03VPS-KP0 | Connection type: Cable with connector M8, 3-pin | Output function: NO | Overrun distance, typ.: 10 mm | Enclosure rating: IP65, IP67 | Supply voltage: 10 V D…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Cylinder sensors | MZT7 | MZT7-03VPS-KP0 | Connection type: Cable with connector M8, 3-pin | Output function: NO | Overrun distance, typ.: 10 mm | Enclosure rating: IP65, IP67 | Supply voltage: 10 V DC … 30 V DC | Electrical wiring: DC 3-wire
Specification
Features
| Cylinder type | T-slot |
|---|---|
| Cylinder types with adapter | Profile cylinderTie rod cylinderRound body cylinderDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2 |
| Housing length | 29.5Â mm |
| Switching output | PNP |
| Switching frequency | 1,000Â Hz |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP65Â 1)IP67 |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Power consumption | 8Â mA, without load |
| Voltage drop | â¤Â 2 V |
| Continuous current Ia | â¤Â 100 mA |
| Protection class | III |
| Response sensitivity, typ. | 3Â mT |
| Overrun distance, typ. | 10 mm 1) |
| Hysteresis, typ. | <Â 0.8Â mT |
| Reproducibility | â¤Â 0.1 mT 2) |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Status indicator LED | Yes |
| Teach-in | No |
| Ambient operating temperature | â30 °C ... +80 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to ENÂ 60947-5-2 |
| Connection type | Cable with connector M8, 3-pin, drag chain use, 0.3Â m |
| Conductor cross section | 0.14 mm² |
| Cable diameter | ÃÂ 2.9Â mm |
| Bending radius | With fixed installation >Â 3Â x cable diameter |
| Torsion force | ± 270° / 10 cm |
| Torsion cycles | >Â 2,000,000 |
| Drag chain cycles | >Â 2,000,000 |
| Drag chain parameters | Traversing speed max. 3.3Â m/s at 5Â m horizontal traversing length |
| Cable outlet | Axial |
| Housing | Plastic |
| Cable | PUR |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
Safety-related parameters
| MTTFD | 1,300Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Classifications
| ECLASS 5.0 | 27270104 |
|---|---|
| ECLASS 5.1.4 | 27270104 |
| ECLASS 6.0 | 27270104 |
| ECLASS 6.2 | 27270104 |
| ECLASS 7.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 8.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 10.0 | 27270104 |
| ECLASS 11.0 | 27270104 |
| ECLASS 12.0 | 27274301 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
