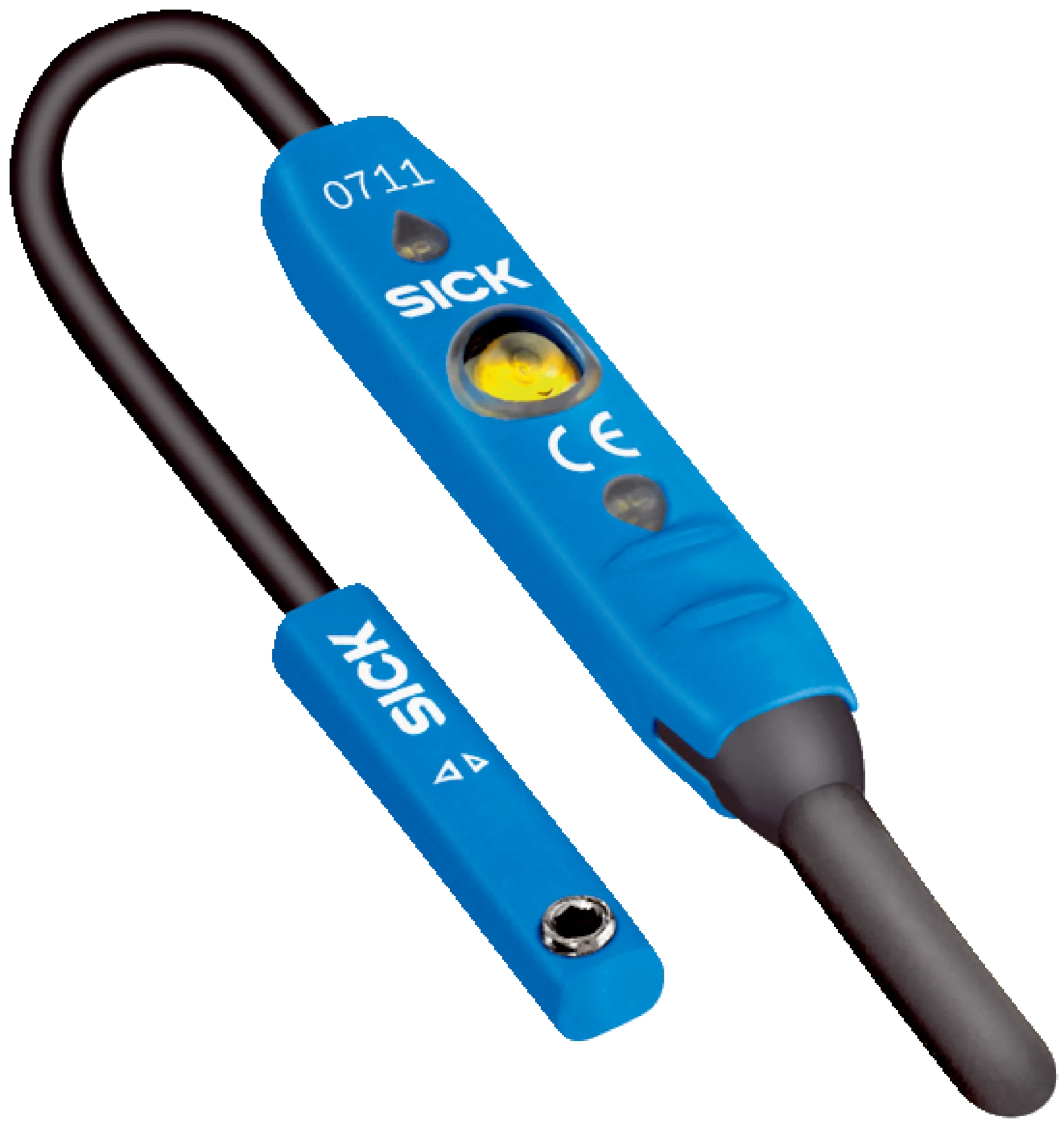

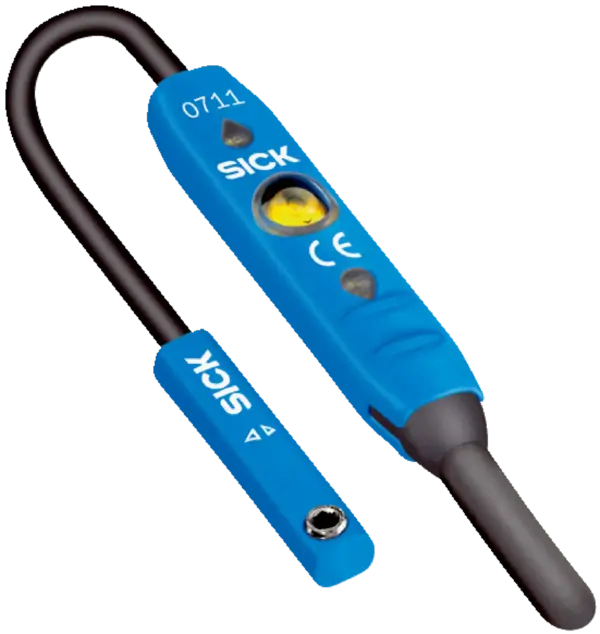

Sick MZ2Q-CFLPSKQ0
Cylinder sensors | MZ2Q-C | MZ2Q-CFLPSKQ0 | Preferred manufacturer slot: Festo | Connection type: Cable with connector M12, 4-pin, with knurled nut, 0.3 m | Output function: 2 x N/O contact, IO-Link |…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Cylinder sensors | MZ2Q-C | MZ2Q-CFLPSKQ0 | Preferred manufacturer slot: Festo | Connection type: Cable with connector M12, 4-pin, with knurled nut, 0.3 m | Output function: 2 x N/O contact, IO-Link | Electrical wiring: DC 4-wire | Smart Sensor: Enhanced Sensing, efficient communication | Communication interface: IO-Link
Specification
Features
| Cylinder type | C-slot |
|---|---|
| Preferred manufacturer slot | Festo |
| Detection zone | 0 mm ... 50 mm |
| Housing length | 19.5Â mm |
| Switching output | 2Â x PNP |
| Output function | 2Â x N/O contact, IO-Link |
| Electrical wiring | DC 4-wire |
| Enclosure rating | IP67Â 1) |
| Teach-in control panel | Teaching in switching points 1Â and 2 |
| IO-Link | Disabling teach-in pushbuttonTeaching in switching points 1Â and 2Tolerance band for switching points in 5Â stages |
| IO-Link functions | Standard functions |
Mechanics/electronics
| Detection zone | 0 mm ... 50 mm |
|---|---|
| Supply voltage | 12Â VÂ DCÂ ... 30Â VÂ DC |
| Power consumption | Typ. 25 mA, without load |
| Voltage drop | â¤Â 2.2 V |
| Continuous current Ia | â¤Â 100 mA |
| Protection class | III |
| Hysteresis, typ. | 1Â mT |
| Reproducibility | â¤Â 0.1 mT 1) |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Status indicator LED | Yes |
| Teach-in | Yes |
| Power-up pulse protection | Yes |
| Ambient operating temperature | â20 °C ... +75 °C |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to ENÂ 60947-5-2 |
| Connection type | Cable with connector M12, 4-pin, with knurled nut, 0.3Â m |
| Conductor cross section | 0.08 mm² |
| Cable diameter | ÃÂ 2.6Â mm |
| Bending radius | With fixed installation >Â 5Â x cable diameter |
| Cable outlet | Axial |
| Connection type | Cable, 4-wire, 0.1Â m |
| Conductor size | 0.08 mm² |
| Cable diameter | ÃÂ 2.3Â mm |
| Bending radius | With fixed installation >Â 5Â x cable diameter |
| Cable outlet | Axial |
| Housing | Plastic |
| Cable | PUR |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
Safety-related parameters
| MTTFD | 799Â years |
|---|---|
| DCavg | 0% |
| TM (mission time) | 20Â years |
Communication interface
| Communication interface | IO-Link V1.0 |
|---|---|
| Communication Interface detail | COM2 (38,4Â kBaud) |
| Cycle time | 2.3Â ms |
| Process data length | 2Â Bit |
| Process data structure | Bit 0Â = switching signal QL1Bit 1Â = switching signal QL2Bit 2Â ... 7Â = empty |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270104 |
|---|---|
| ECLASS 5.1.4 | 27270104 |
| ECLASS 6.0 | 27270104 |
| ECLASS 6.2 | 27270104 |
| ECLASS 7.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 8.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 10.0 | 27270104 |
| ECLASS 11.0 | 27270104 |
| ECLASS 12.0 | 27274301 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
