Sick MWS120-3EN2PM18X12
Measuring wheel encoders | MWS120 | MWS120-3EN2PM18X12 | Measuring wheel circumference: 500 mm | Measuring wheel surface: Knurled polyurethane surface | Communication interface: 4.5 V DC … 32 V DC,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

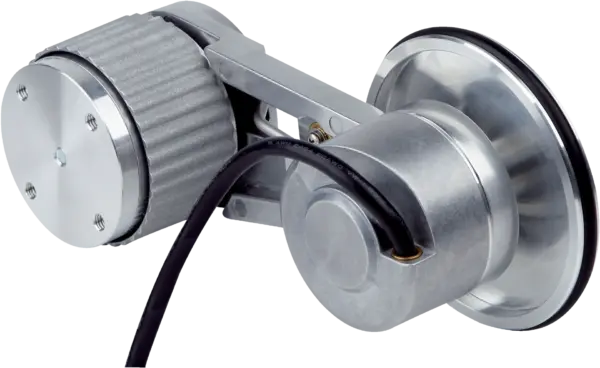

Measuring wheel encoders | MWS120 | MWS120-3EN2PM18X12 | Measuring wheel circumference: 500 mm | Measuring wheel surface: Knurled polyurethane surface | Communication interface: 4.5 V DC … 32 V DC, SSI | Supply voltage: 4.5 V DC … 32 V DC | Mounted encoder: AFM60 SSI, AFM60A-S4PM262144, 1037512 | Connection type: Cable, universal, 5 m
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 250Â years (ENÂ ISOÂ 13849-1)Â 1)Â 2) |
|---|
Performance
| Max. resolution (number of steps per revolution x number of revolutions) | 18 bit x 12 bit (262,144 x 4,096) |
|---|---|
| Measuring increment (resolution in mm/pulse) | 0.0008Â 1)Â 2) |
| Repeatability | < 0.1 mm 3) |
Interfaces
| Communication interface | SSI |
|---|---|
| Programmable/configurable | â |
Electronics
| Connection type | Cable, universal, 5Â m |
|---|---|
| Power consumption | â¤Â 0.7 W (without load) |
| Supply voltage | 4.5Â VÂ DCÂ ... 32Â VÂ DC |
| Reverse polarity protection | â |
Mechanics
| Measuring wheel circumference | 500 mm 1) |
|---|---|
| Measuring wheel surface | Knurled polyurethane surface |
| Mounting | Measuring wheel mounted at the rear |
| Spring element | Stainless steel |
| Measuring wheel, spring arm | Aluminum |
| Start up torque | < 0.5 Ncm (at 20 °C) |
| Operating torque | < 0.3 Ncm (at 20 °C) |
| Bearing lifetime | 3.0Â x 10^9 revolutions |
| Minimum spring tension force | 4Â NÂ 2)Â 3) |
| Max. permissible working area for the spring (continuous operation) | ± 10 mm |
| Service life of spring element | >Â 1.5Â million cycles |
| Mounting position relative to the measuring object | Preferably from above, from below possible 4) |
| Mounted encoder | AFM60 SSI, AFM60A-S4PM262144, 1037512 |
| Mounted mechanic | BEF-MWS120-ARM, 2118239 |
| Attached measuring wheel | BEF-MR10500APG, 2055224 |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3Â 1) |
|---|---|
| Operating temperature range | â30 °C ... +80 °C 2) |
| Storage temperature range | â40 °C ... +100 °C 2) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270501 |
|---|---|
| ECLASS 5.1.4 | 27270501 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 8.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 10.0 | 27270790 |
| ECLASS 11.0 | 27270707 |
| ECLASS 12.0 | 27270504 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
