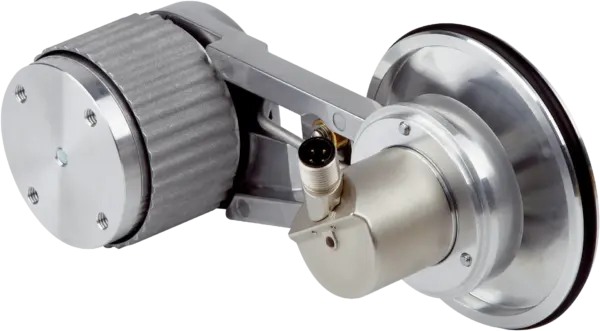

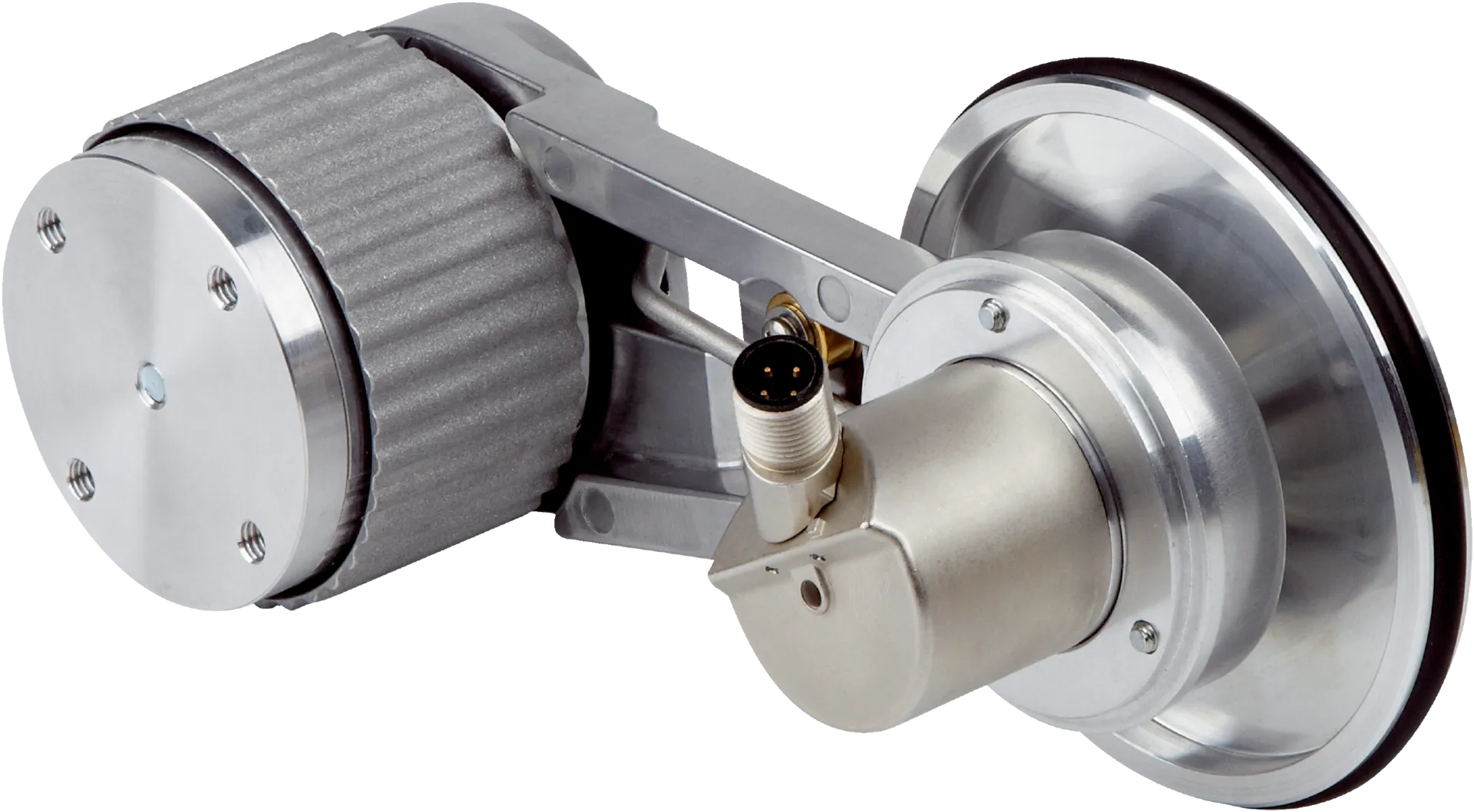

Measuring wheel encoders | MWS120 | MWS120-12M3AC03600 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.5 V … 32 V, SSI | Supply voltage:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Measuring wheel encoders | MWS120 | MWS120-12M3AC03600 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 4.5 V … 32 V, SSI | Supply voltage: 4.5 V … 32 V | Mounted encoder: AHS36 SSI, AHS36B-SCAC003600, 1102314 | Connection type: Male connector, M12, 8-pin, universal
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 230Â years (ENÂ ISOÂ 13849-1)Â 1)Â 2) |
|---|
Performance
| Number of steps per revolution (max. resolution) | 3,600 |
|---|---|
| Measuring increment (resolution in mm/pulse) | 0.056Â 1)Â 2) |
| Repeatability | < 0.1 mm 3) |
Interfaces
| Communication interface | SSI |
|---|
Electronics
| Connection type | Male connector, M12, 8-pin, universal |
|---|---|
| Power consumption | â¤Â 1.5 W (without load) |
| Supply voltage | 4.5Â VÂ ... 32Â V |
| Reverse polarity protection | â |
Mechanics
| Measuring wheel circumference | 200 mm 1) |
|---|---|
| Measuring wheel surface | O-ring NBR70 |
| Mounting | Measuring wheel mounted at the front |
| Spring element | Stainless steel |
| Measuring wheel, spring arm | Aluminum |
| Start up torque | 0.5Â Ncm |
| Operating torque | <Â 0.5Â Ncm |
| Bearing lifetime | 3.6Â x 10^8 revolutions |
| Minimum spring tension force | 4Â NÂ 2)Â 3) |
| Max. permissible working area for the spring (continuous operation) | ± 10 mm |
| Service life of spring element | >Â 1.5Â million cycles |
| Mounting position relative to the measuring object | Preferably from above, from below possible 4) |
| Mounted encoder | AHS36 SSI, AHS36B-SCAC003600, 1102314 |
| Flange plates | BEF-FA-020-036, 2072298 |
| Mounted mechanic | BEF-MWS120-ARM, 2118239 |
| Attached measuring wheel | BEF-MR010020R, 2055224 |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3 |
|---|---|
| Operating temperature range | â30 °C ... +80 °C 1) |
| Storage temperature range | â40 °C ... +100 °C 1) |
Classifications
| ECLASS 5.0 | 27270501 |
|---|---|
| ECLASS 5.1.4 | 27270501 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 8.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 10.0 | 27270790 |
| ECLASS 11.0 | 27270707 |
| ECLASS 12.0 | 27270504 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
