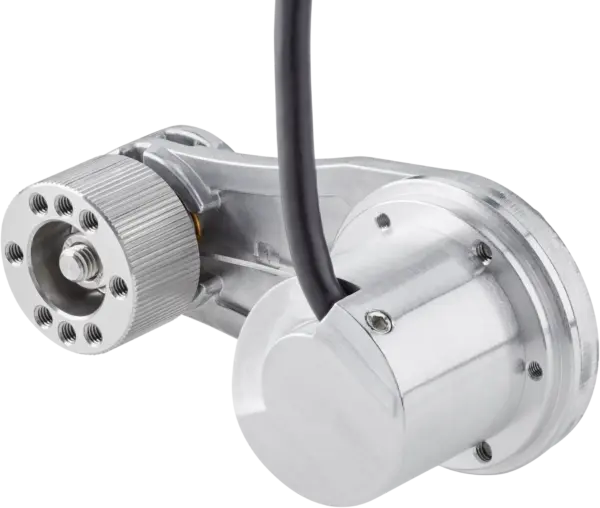

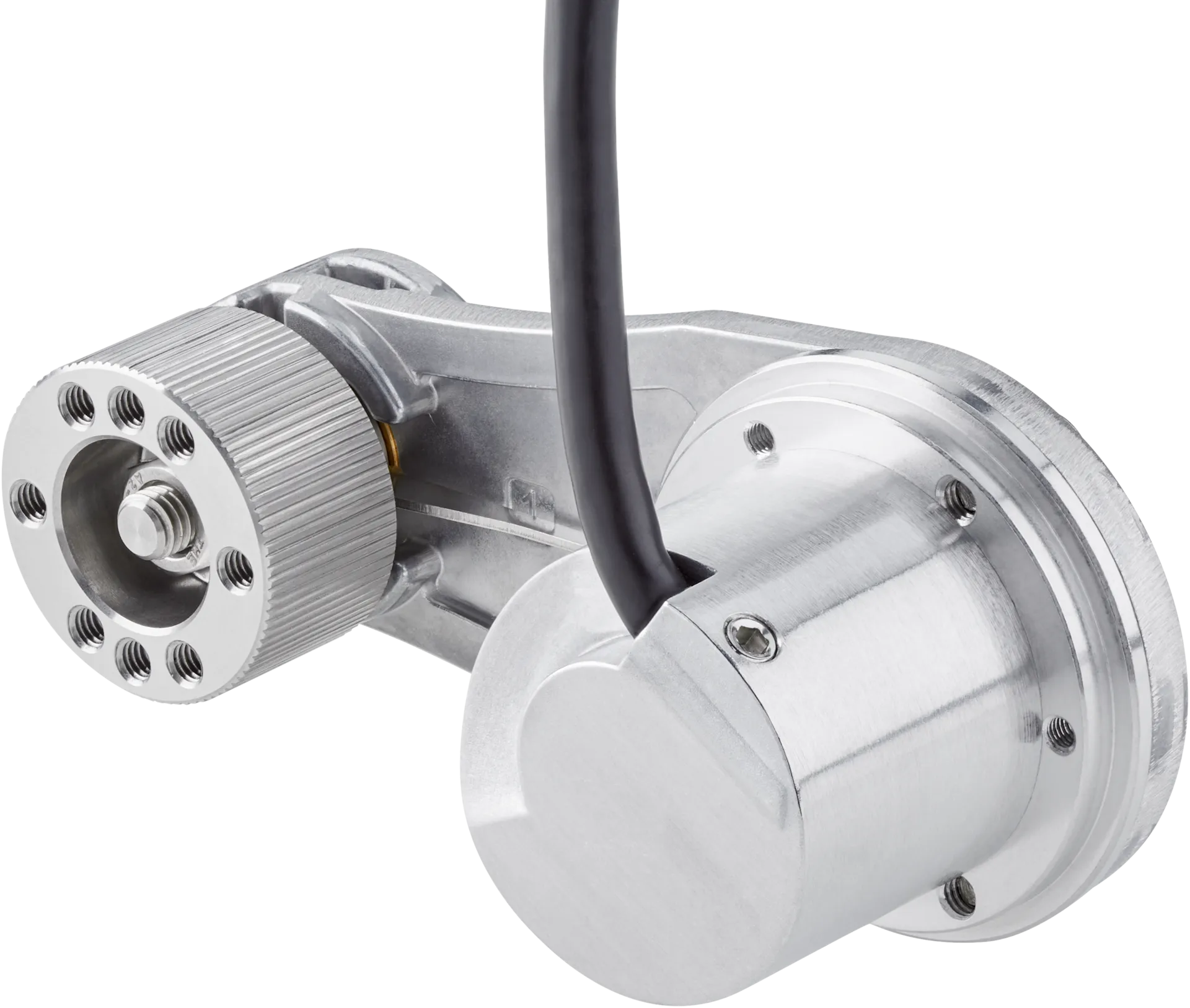

Sick MWS075-12C111K102000
Measuring wheel encoders | MWS075 | MWS075-12C111K102000 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 7 V … 30 V, Incremental, HTL, Push…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Measuring wheel encoders | MWS075 | MWS075-12C111K102000 | Measuring wheel circumference: 200 mm | Measuring wheel surface: O-ring NBR70 | Communication interface: 7 V … 30 V, Incremental, HTL, Push pull | Supply voltage: 7 V … 30 V | Mounted encoder: DBS36/50, DBS50E-S5EK02000, 1062698 | Connection type: Cable, 8-wire, universal, 1.5 m | Resolution in pulses/mm: 10
Specification
Performance
| Pulses per revolution | 2,000 |
|---|---|
| Resolution in pulses/mm | 10 |
| Measuring increment (resolution in mm/pulse) | 0.1Â 1)Â 2) |
| Repeatability | < 0.1 mm 3) |
Interfaces
| Communication interface | Incremental |
|---|---|
| Communication Interface detail | HTLÂ / Push pull |
Electronics
| Connection type | Cable, 8-wire, universal, 1.5Â m |
|---|---|
| Supply voltage | 7Â VÂ ... 30Â V |
| Reverse polarity protection | â |
| Short-circuit protection of the outputs | â 1) |
Mechanics
| Measuring wheel circumference | 200Â mm |
|---|---|
| Measuring wheel surface | O-ring NBR70Â 1) |
| Mounting | Measuring wheel mounted at the front |
| Cable | PVC |
| Measuring wheel, spring arm | Aluminum |
| Start up torque | +Â 0.9Â Ncm |
| Operating torque | 0.6Â Ncm |
| Operating speed | 6,000 minâ»Â¹Â 2) |
| Maximum operating speed | 8,000 minâ»Â¹Â 3) |
| Bearing lifetime | 2Â x 10^9Â revolutions |
| Maximum travel/deflection of spring arm | 14Â mm at 14Â N spring travel |
| Recommended pretension | 15Â N At 10Â mm deflection |
| Max. permissible working area for the spring (continuous operation) | ± 3 mm |
| Recommended spring deflection | 2 mm ... 13 mm |
| Service life of spring element | > 1.4 million cycles 4) |
| Mounting position relative to the measuring object | Preferably from above, from below possible 5) |
| Moment of inertia of the rotor | 0.65 gcm² |
| Mounted encoder | DBS36/50, DBS50E-S5EK02000, 1062698 |
| Mounted mechanic | BEF-MWS075-ARM, 2145180 |
| Attached measuring wheel | BEF-MR008020R, 2055223 |
Ambient data
| EMC | According to ENÂ 61000-6-2Â and ENÂ 61000-6-3Â (class A) |
|---|---|
| Enclosure rating | IP65 |
| Operating temperature range | â20 °C ... +85 °C |
| Storage temperature range | â40 °C ... +100 °C, without package |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270501 |
|---|---|
| ECLASS 5.1.4 | 27270501 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 8.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 10.0 | 27270790 |
| ECLASS 11.0 | 27270707 |
| ECLASS 12.0 | 27270504 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
