Sick Mutingsystem M40Z, Komplett-Paket, Säulenhöhe 1740 mm
Safety light-beam sensors | M4000 Advanced A/P | Mutingsystem M40Z, Komplett-Paket, Säulenhöhe 1740 mm | System part: Set | Scanning range: 4.5 m | Number of beams: 2 | Beam separation: 500 mm | Conne…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety light-beam sensors | M4000 Advanced A/P | Mutingsystem M40Z, Komplett-Paket, Säulenhöhe 1740 mm | System part: Set | Scanning range: 4.5 m | Number of beams: 2 | Beam separation: 500 mm | Connection type: Hirschmann male connector M26, 12-pin | Extension connection: Female connector M12, 5-pin | End cap with integrated LED: yes
Specification
Features
| Column height | 1,740Â mm |
|---|---|
| Functional principle | Active/passive |
| System part | Set |
| Type of diversion | Fibre-optic deflection |
| Scanning range | 0.5 m ... 4.5 m |
| Number of beams | 2 |
| Beam separation | 500Â mm |
| Response time | 10Â ms |
| Synchronization | Optical synchronization |
| End cap with integrated LED | â |

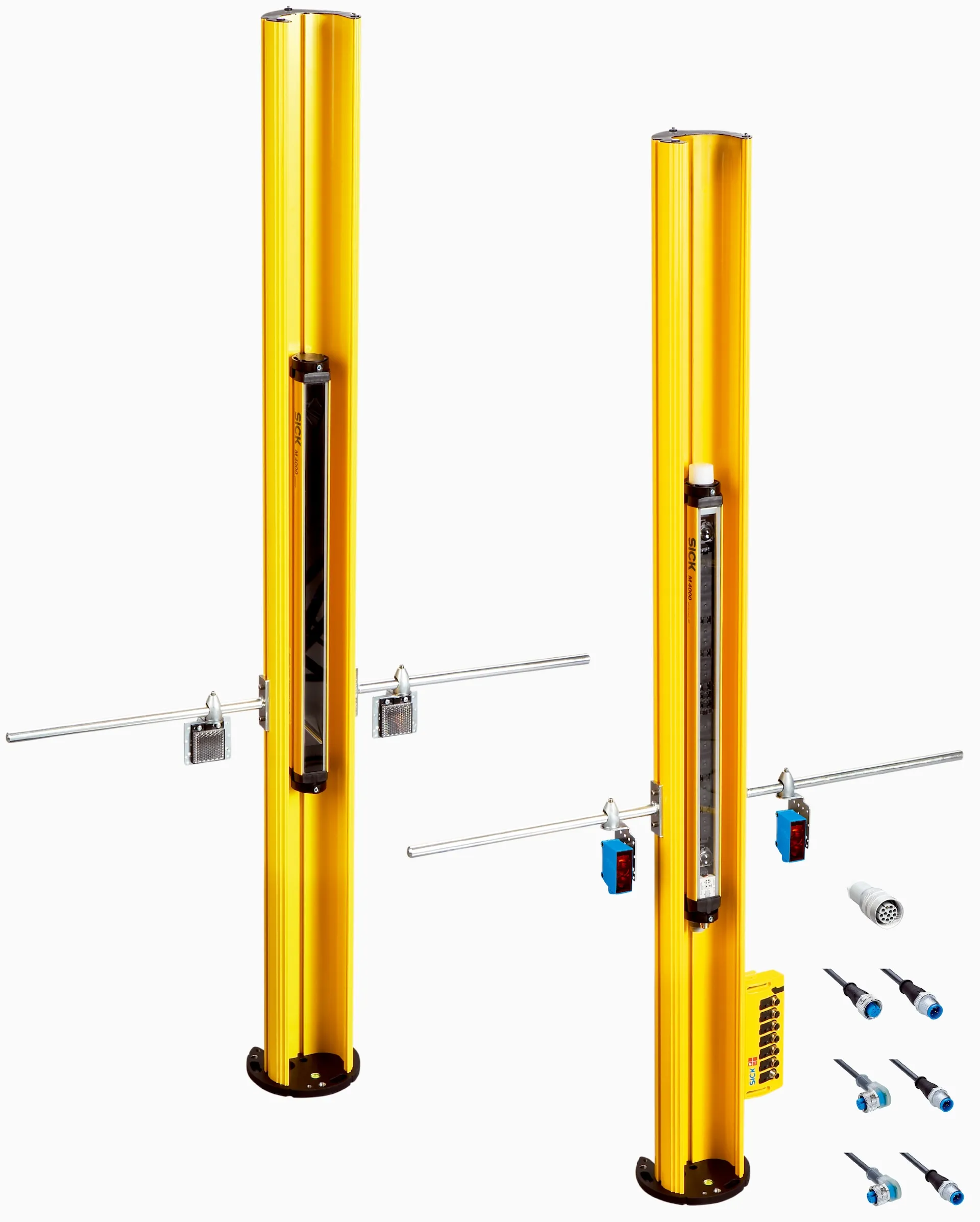

| Items supplied | 1Â Ã active unit M40Z-S109 (corresponds to #1200125 preconfigured), premounted in device column PU3H17 (#2045643, column height 1,740Â mm, 1st beam 400Â mm above floor)1Â Ã passive unit PSD01-2501 with fiber-optic deflection (#1027907), premounted in device column PU3H17 (#2045643, column height 1,740Â mm, 1st beam 400Â mm above floor)1Â Ã safety switching amplifier UE403 (#1026287)2Â Ã muting sensor GL10-F4551 (#1071153), premounted on universal bracket (#2044953) on a 400Â mm muting arm (#2045879), incl. connection cable M12, 4-pin (#2105152) for connecting to UE4032Â Ã reflector P250 (#5304812), premounted on universal bracket (#2044953) on a 400Â mm muting arm (#2045879)1Â Ã for active unit on the system connection: Ready to assemble Hirschmann female cable connector M26, 12-pin (#6020757)1Â Ã for active unit on the extension connection: Connection cable M12, 5-pin (#2096007) for connecting to UE403 |
Safety-related parameters
| Type | Type 4Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 3Â (IECÂ 61508) |
| Category | Category 4Â (ENÂ ISOÂ 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 6.6 x 10-9 (EN ISO 13849) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Functions
| Beam coding | â |
|---|---|
| Restart interlock | â |
| External device monitoring (EDM) | â |
| Configurable application diagnostic output | â |
| Safe SICK device communication via EFI | â |
| Differentiation between man and material (muting) | â |
| Type of human-material differentiation | Cross muting (2Â sensors) |
Interfaces
| System connection | Hirschmann male connector M26, 12-pin |
|---|---|
| Permitted cable length | 50 m 1) |
| Permitted cross-section | â¥Â 0.75 mm² |
| Configuration connection | Female connector M8, 4-pin |
| Configuration method | PC with CDS (Configuration and Diagnostic Software) |
| Display elements | LEDs7-segment display |
| End cap with integrated LED | â |
| Application diagnostic output (ADO) | â |
Electronics
| Protection class | III (IECÂ 61140) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC)Â 1) |
| Residual ripple | ⤠10 % 2) |
| Power consumption | ⤠0.6 A 3) |
| Output signal switching devices (OSSDs) | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 4) |
| ON state, switching voltage HIGH | 24Â VÂ DC (VS â 2.25Â VÂ DCÂ ... VS) |
| OFF state, switching voltage LOW | â¤Â 2 V DC |
| Current-carrying capacity per OSSD | â¤Â 500 mA |
Mechanics
| Dimensions | See dimensional drawing |
|---|---|
| Housing | Aluminum alloy ALMGSI 0.5, powder coated |
| Front screen | Polycarbonate, scratch-resistant coating |
Ambient data
| Enclosure rating | IP65 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | â30 °C ... +55 °C |
| Storage temperature | â30 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 g, 10 Hz ... 55 Hz (EN 60068-2-6) |
| Shock resistance | 10Â g, 16Â ms (ENÂ 60068-2-27) |
Other information
| Wave length | 850Â nm |
|---|
Classifications
| ECLASS 5.0 | 27272703 |
|---|---|
| ECLASS 5.1.4 | 27272703 |
| ECLASS 6.0 | 27272703 |
| ECLASS 6.2 | 27272703 |
| ECLASS 7.0 | 27272703 |
| ECLASS 8.0 | 27272703 |
| ECLASS 8.1 | 27272703 |
| ECLASS 9.0 | 27272703 |
| ECLASS 10.0 | 27272703 |
| ECLASS 11.0 | 27272703 |
| ECLASS 12.0 | 27272703 |
| ETIM 5.0 | EC001832 |
| ETIM 6.0 | EC001832 |
| ETIM 7.0 | EC001832 |
| ETIM 8.0 | EC001832 |
| UNSPSC 16.0901 | 46171620 |
