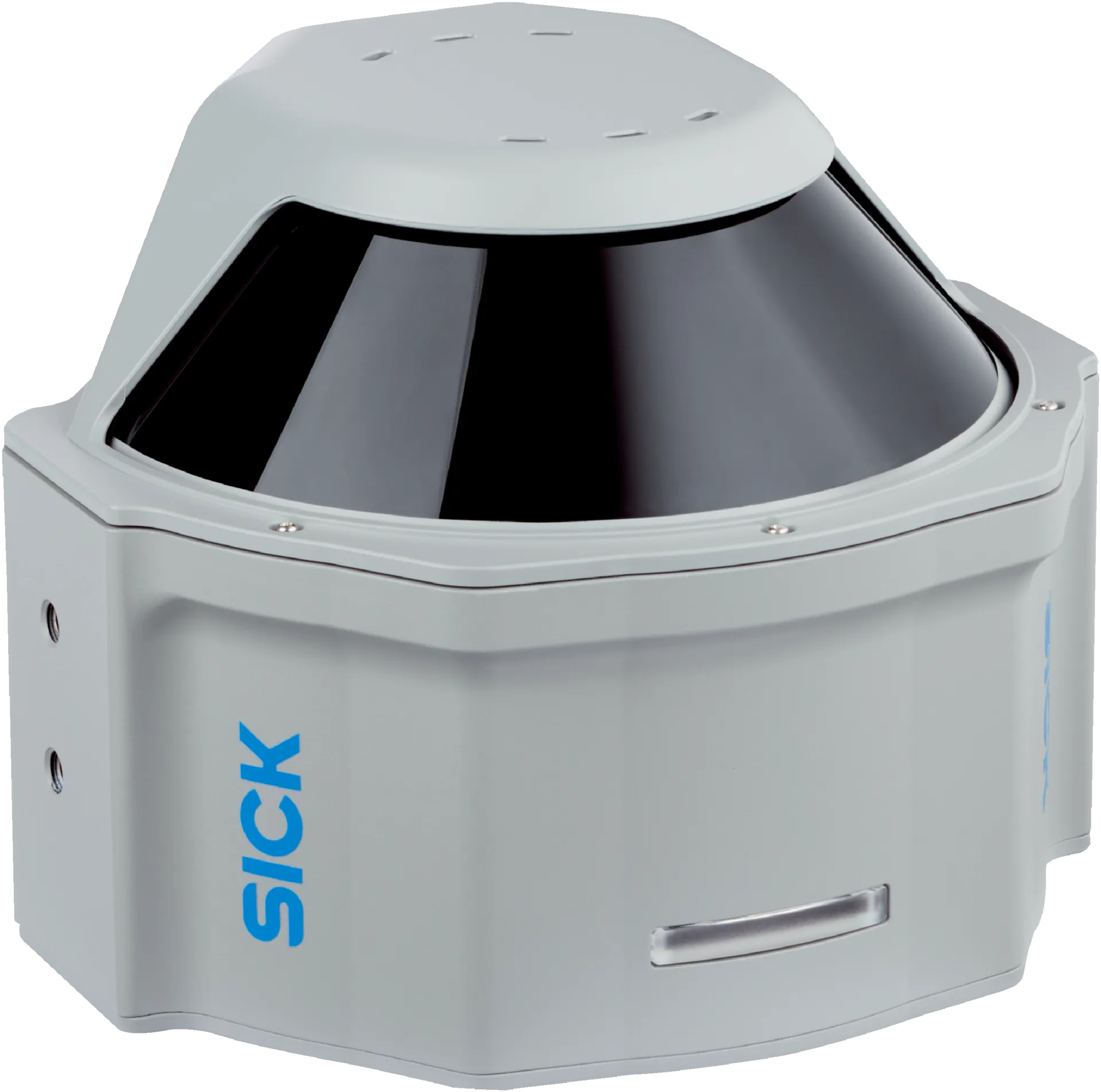

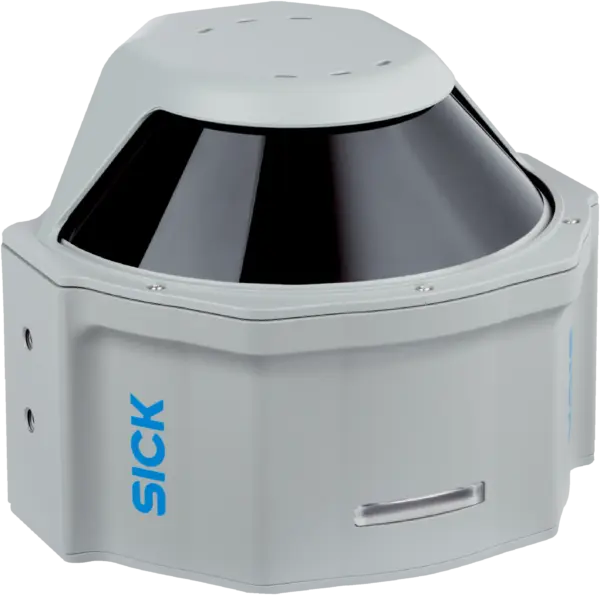

Sick MRS6224R-131001
LiDAR sensors | MRS6000 | MRS6224R-131001 | Application: Outdoor, Indoor | Working range: 0.5 m … 200 m | Aperture angle: Horizontal (120°)Vertical (15°) | Amount of evaluated echoes: 4 | Scanning f…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
LiDAR sensors | MRS6000 | MRS6224R-131001 | Application: Outdoor, Indoor | Working range: 0.5 m … 200 m | Aperture angle: Horizontal (120°)Vertical (15°) | Amount of evaluated echoes: 4 | Scanning frequency: 10 Hz | Enclosure rating: IP65, IP67 | Weight: 2.4 kg
Specification
Features
| Application | Outdoor, Indoor |
|---|---|
| Light source | Infrared light (870Â nm) |
| Laser class | 1Â (IECÂ 60825-1:2014, ENÂ 60825-1:2014+A11:2021) |
| Horizontal | 120° |
| Vertical | 15° |
| Scanning frequency | 10Â Hz |
| Horizontal | 0.13° |
| Vertical | 0.625° |
| Working range | 0.5 m ... 200 m |
| At 10% remission factor | 30 m, x 1.4 (typ.) in mode: Extended measuring range |
| At 90% remission factor | 75 m, x 1.4 (typ.) in mode: Extended measuring range |
| Amount of evaluated echoes | 4 |
Mechanics/electronics

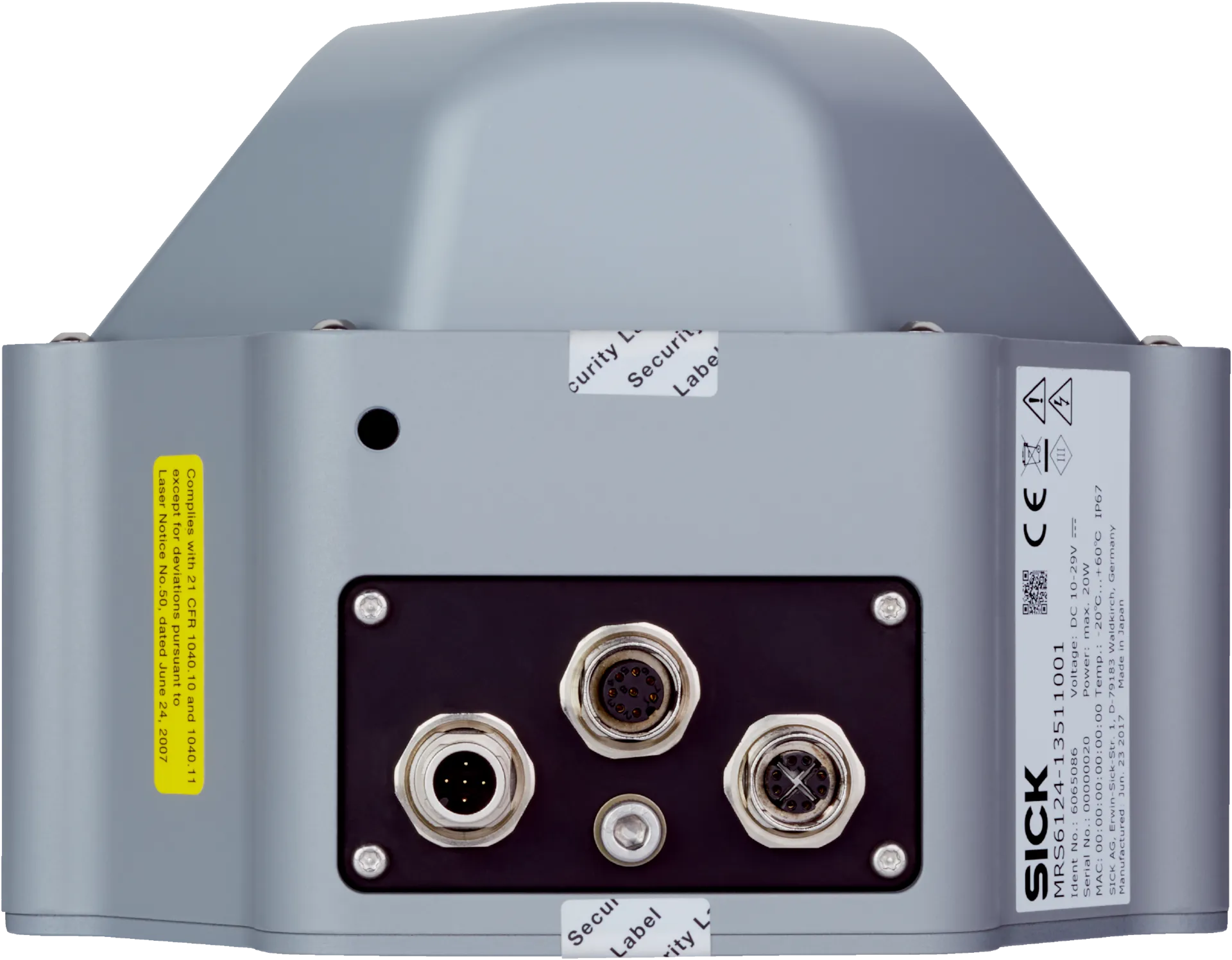

| Connection type | 3Â x M12 round connectors (supply voltage, Ethernet, I/O) |
|---|---|
| Supply voltage | 10Â VÂ ... 29Â V |
| Power consumption | 20Â W |
| Housing material | Aluminum / plastic (PMMA) |
| Housing color | Gray (RAL 7042) |
| Enclosure rating | IP65IP67 |
| Protection class | III |
| Weight | 2.4Â kg |
| Dimensions (L x W x H) | 125.5 mm x 176 mm x 131 mm |
| MTBF | 9.5Â years |
Safety-related parameters
| MTTFD | 19Â years |
|---|
Performance
| Systematic error | ± 125 mm 1) |
|---|---|
| Statistical error | 30 mm 1) |
Interfaces
| Ethernet | â , TCP/IP |
|---|---|
| Function | Raw data interface/parameterization |
| Data transmission rate | 100 Mbit/s ... 1 Gbit/s |
Ambient data
| Ambient operating temperature | â20 °C ... +60 °C |
|---|
General notes
| Note on use | The sensor does not constitute a safety component as defined by relevant legislation on machine safety. |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270990 |
|---|---|
| ECLASS 5.1.4 | 27270990 |
| ECLASS 6.0 | 27270913 |
| ECLASS 6.2 | 27270913 |
| ECLASS 7.0 | 27270913 |
| ECLASS 8.0 | 27270913 |
| ECLASS 8.1 | 27270913 |
| ECLASS 9.0 | 27270913 |
| ECLASS 10.0 | 27270913 |
| ECLASS 11.0 | 27270913 |
| ECLASS 12.0 | 27270913 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 41111615 |
