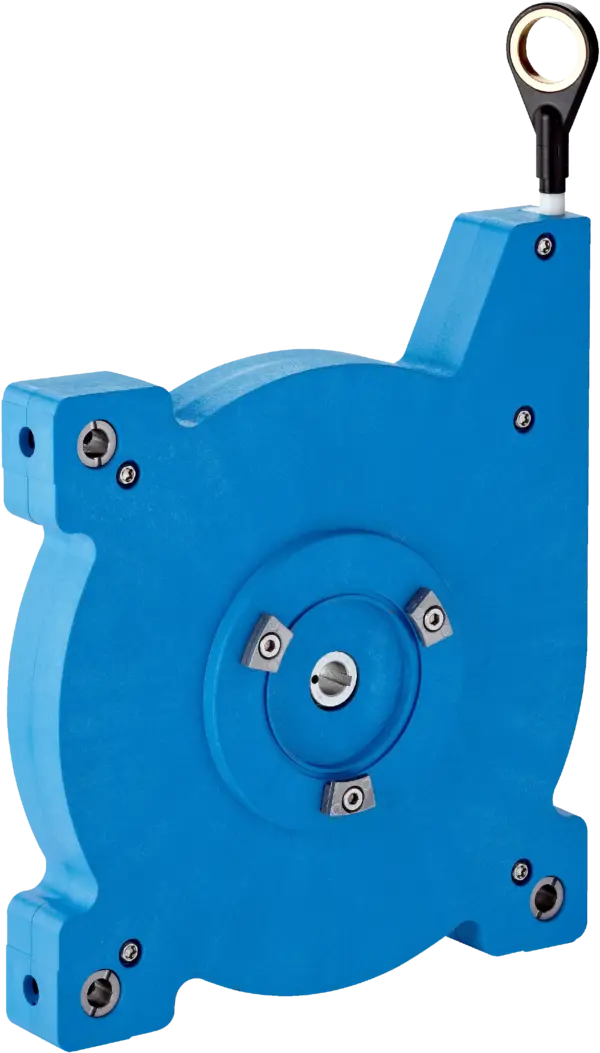

Sick MRA-G190-110D3
Wire draw mechanism | Wire draw mechanism for wire draw encoders | MRA-G190-110D3 | Product segment: Wire draw mechanism | Product family: Wire draw mechanism for wire draw encoders | Description: Eco…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

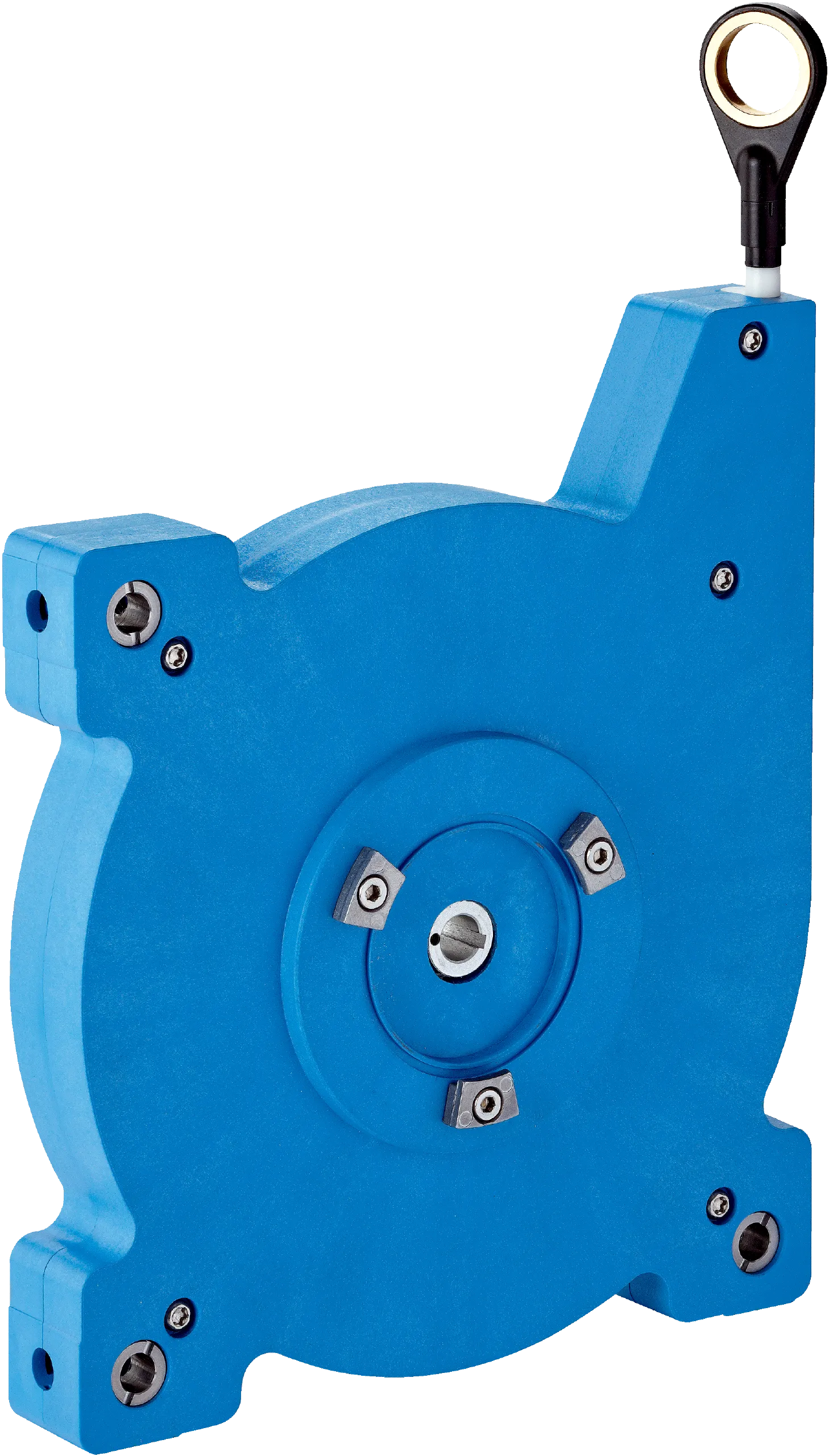

Wire draw mechanism | Wire draw mechanism for wire draw encoders | MRA-G190-110D3 | Product segment: Wire draw mechanism | Product family: Wire draw mechanism for wire draw encoders | Description: EcoLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m … 10 m | Items supplied: Without encoder
Specification
Features
| Description | EcoLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m ... 10 m |
|---|---|
| Items supplied | Without encoder |
| Measurement range | 0Â m 10Â m |
| Reproducibility | ≤ 0.2 mm |
| Linearity | ≤ ± 2 mm |
| Hysteresis | ≤ 0.4 mm |
| Weight | 1.9Â kg Wire draw mechanism |
| Weight (measuring wire) | 7.1Â g/m |
| Measuring wire material | Highly flexible stranded steel 1,4401Â stainless steel V4A |
| Housing material | Plastic, Noryl |
| Housing material, wire draw mechanism | Plastic, Noryl |
| Length of wire pulled out per revolution | 555Â mm |
| Actual wire draw length | 10.2Â m |
| Spring return force | 9Â N 12Â NÂ 1) |
| Measuring wire diameter | 0.55Â mm |
| Wire acceleration | 8 m/s² |
| Operating speed | 3Â m/s |
| Resolution | To calculate the resolution of the system please use following formula:length of wire draw per revolution / steps per revolution = resolution of the combination of wire draw + encoder |
| Ambient operating temperature | –30 °C +70 °C |
| Enclosure rating mechanic | IP50 |
| Life of wire draw mechanism | Typ. 1,000,000 cycles 2) 3) |
Certificates
| China RoHS | ✔ |
|---|
Classifications
| ECLASS 5.0 | 27270591 |
|---|---|
| ECLASS 5.1.4 | 27270591 |
| ECLASS 6.0 | 27279103 |
| ECLASS 6.2 | 27279103 |
| ECLASS 7.0 | 27279103 |
| ECLASS 8.0 | 27279103 |
| ECLASS 8.1 | 27279103 |
| ECLASS 9.0 | 27270591 |
| ECLASS 10.0 | 27270591 |
| ECLASS 11.0 | 27270591 |
| ECLASS 12.0 | 27270591 |
| ETIM 5.0 | EC002026 |
| ETIM 6.0 | EC002026 |
| ETIM 7.0 | EC002026 |
| ETIM 8.0 | EC002026 |
| UNSPSC 16.0901 | 39122221 |
