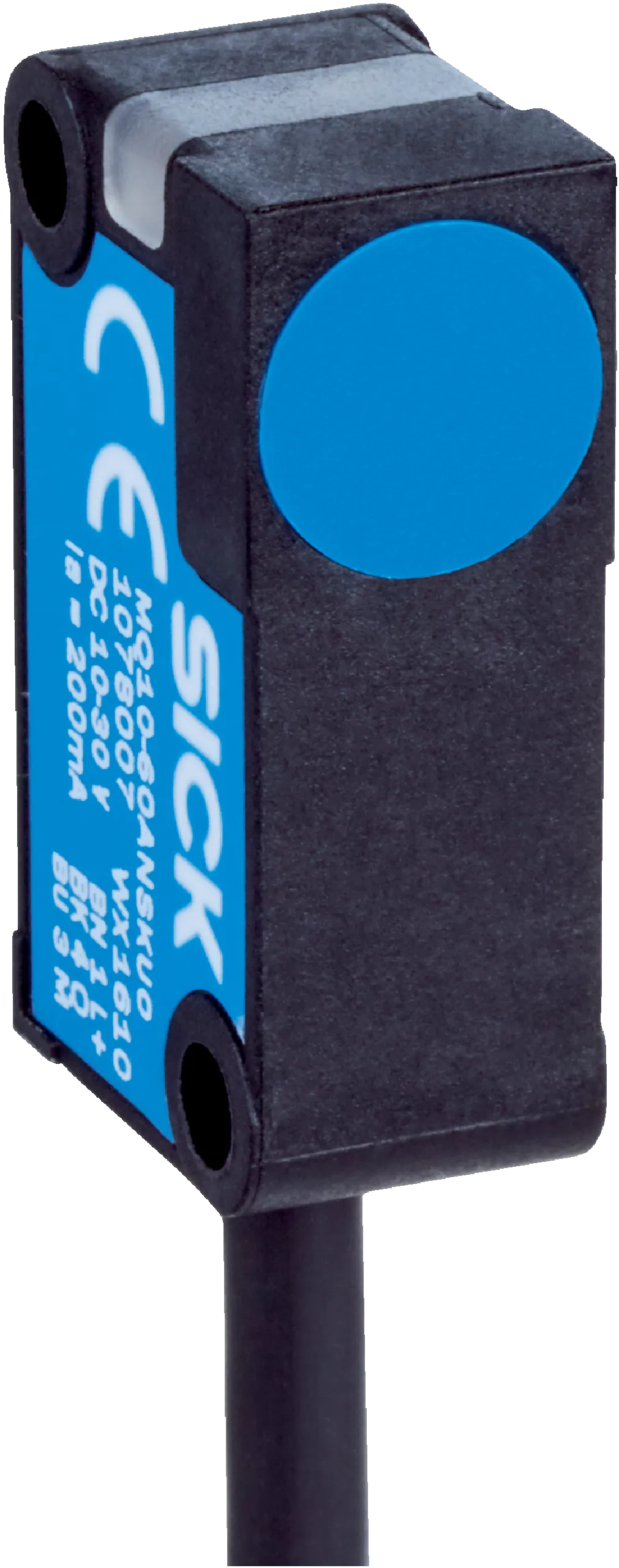

Sick MQ10-60ANSKU0
Magnetic sensors | MQB | MQ10-60ANSKU0 | Sensing range Sn: 60 mm | Cuboid shape (W x H x D): 10 mm x 28 mm x 16 mm | Switching output: NPN | Connection type: Cable, 3-wire, 2 m | Housing material: Pla…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Magnetic sensors | MQB | MQ10-60ANSKU0 | Sensing range Sn: 60 mm | Cuboid shape (W x H x D): 10 mm x 28 mm x 16 mm | Switching output: NPN | Connection type: Cable, 3-wire, 2 m | Housing material: Plastic | Output function: NO
Specification
Features
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 10 mm x 28 mm x 16 mm |
| Sensing range Sn | 0 mm ... 60 mm 1) |
| Safe sensing range Sa | 48.6Â mm |
| Magnetic sensitivity | 1Â mT |
| Switching frequency | 1,000Â Hz |
| Connection type | Cable, 3-wire, 2 m 2) |
| Switching output | NPN |
| Switching output detail | NPN |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67Â 3) |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | â¤Â 10 % 1) |
| Voltage drop | â¤Â 1.5 V 2) |
| Current consumption | 5Â mAÂ 3) |
| Time delay before availability | â¤Â 26 ms |
| Hysteresis | 1Â %Â ... 10Â % |
| Reproducibility | â¤Â 1 % 4) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-2 |
| Continuous current Ia | â¤Â 200 mA |
| Cable material | PUR |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Power-up pulse protection | â |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | â25 °C ... +75 °C |
| Housing material | Plastic, VISTAL® |
| Sensing face material | Plastic, VISTAL® |
Safety-related parameters
| MTTFD | 1,924Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270104 |
|---|---|
| ECLASS 5.1.4 | 27270104 |
| ECLASS 6.0 | 27270104 |
| ECLASS 6.2 | 27270104 |
| ECLASS 7.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 8.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 10.0 | 27270104 |
| ECLASS 11.0 | 27270104 |
| ECLASS 12.0 | 27274301 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
