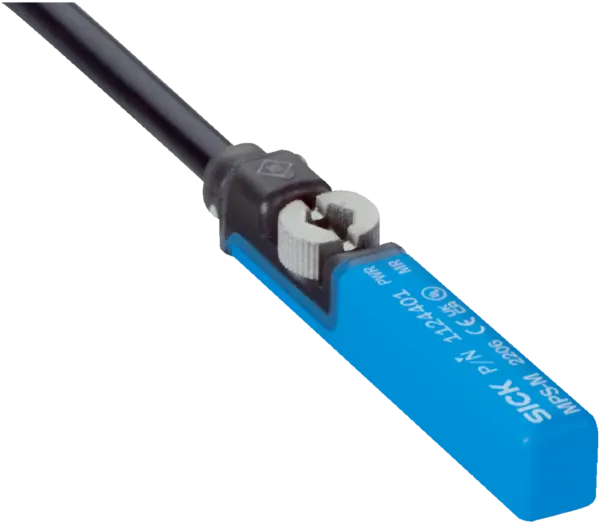

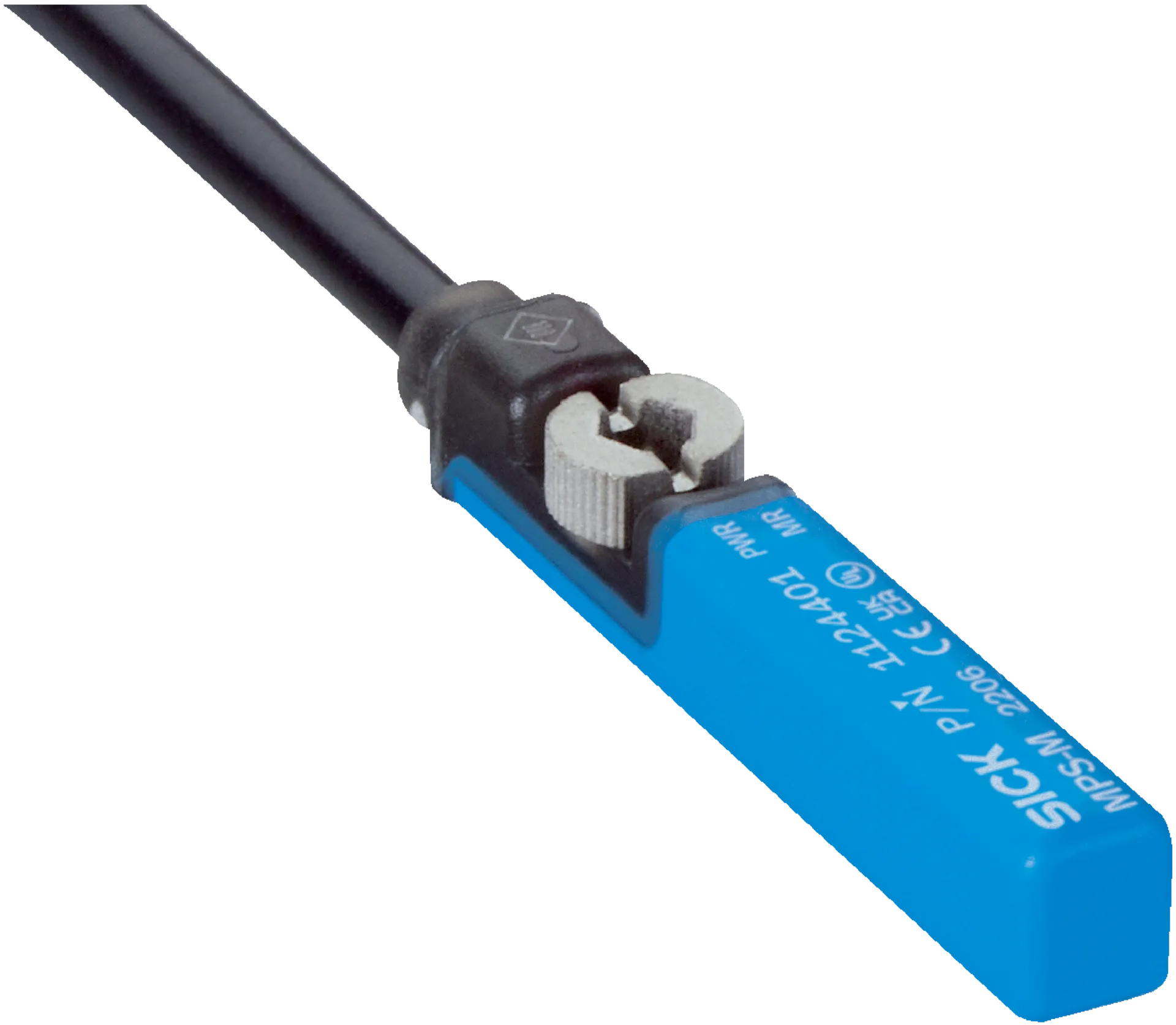

Cylinder sensors | MPS-M | MPS-M50TUH0EA45CZZ | Connection type: Cable, 4-wire, stripped, 5 m | Output function: Analog, IO-Link | Measuring range: 50 mm | Diagnostic functionality: Actuator diagnosis | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis | Communication interface: IO-Link
Specification
Features
| Cylinder type | T-slot |
|---|---|
| Detection zone | 0 mm ... 50 mm 1) |
| Cylinder types with adapter | Profile cylinderTie rod cylinderRound body cylinderDovetail groove cylinderSMC rail CDQ2SMC rail ECDQ2 |
| Measuring range | 50Â mm |
| Housing length | 32.5Â mm |
| Output function | Analog, IO-Link |
| Electrical wiring | DC 4-wire |
| Analog output (voltage) | 0Â VÂ ... 10Â V |
| Enclosure rating | IP67 |
| Diagnostic functionality | Actuator diagnosis |
Mechanics/electronics
| Supply voltage | 13Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Min. load resistance | ≥ 10 kΩ |
| Protection class | III |
| Time delay before availability | 0.15Â s |
| Power consumption | ≤ 550 mW |
| Required magnetic field sensitivity, typ. | 2Â mTÂ ... 20Â mTÂ 2) |
| Resolution, typ. | 0,01 mm 3) |
| Linearity error, typ. | 0.3 mm 4) |
| Repeat accuracy, typ. | 0.05 mm 5) |
| Sampling rate, typ. | 1Â ms |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Measuring range LED | Yes |
| Status indicator LED | Yes |
| Teach-in | Yes |
| Ambient operating temperature | –20 °C ... +70 °C 6) |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC | According to ENÂ 60947-5-2 |
| Connection type | Cable, 4-wire, stripped, 5Â m |
| Conductor cross section | 0.08 mm² |
| Cable diameter | Ø 2.6 mm |
| Bending radius | For flexible use >Â 10Â x cable diameter |
| Cable outlet | Axial |
| Housing | Plastic, PA, strengthened |
| Cable | PUR |
Safety-related parameters
| MTTFD | 744Â years |
|---|---|
| DCavg | 0% |
| TM (mission time) | 20Â years |
Communication interface
| Communication interface | IO-Link V1.1 |
|---|---|
| Communication Interface detail | COM3 |
| Cycle time | 1Â ms |
| Process data length | 32Â Bit |
| Process data structure | Bit 0 ... 7 = switching signal Qint1 - Qint7 / AlertsBit 8 ... 15 = scalingBit 16 ... 31 = position (in x10 µm) |
Diagnosis
| Status data | Cycle count, travel time, cylinder travel, dwell time, piston velocity |
|---|---|
| Magnetic field strength | 2Â mTÂ ... 18Â mT |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270104 |
|---|---|
| ECLASS 5.1.4 | 27270104 |
| ECLASS 6.0 | 27270104 |
| ECLASS 6.2 | 27270104 |
| ECLASS 7.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 8.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 10.0 | 27270104 |
| ECLASS 11.0 | 27270104 |
| ECLASS 12.0 | 27274301 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
