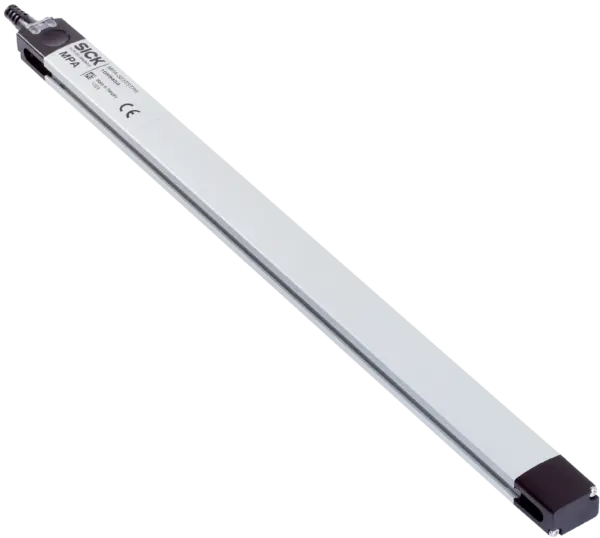

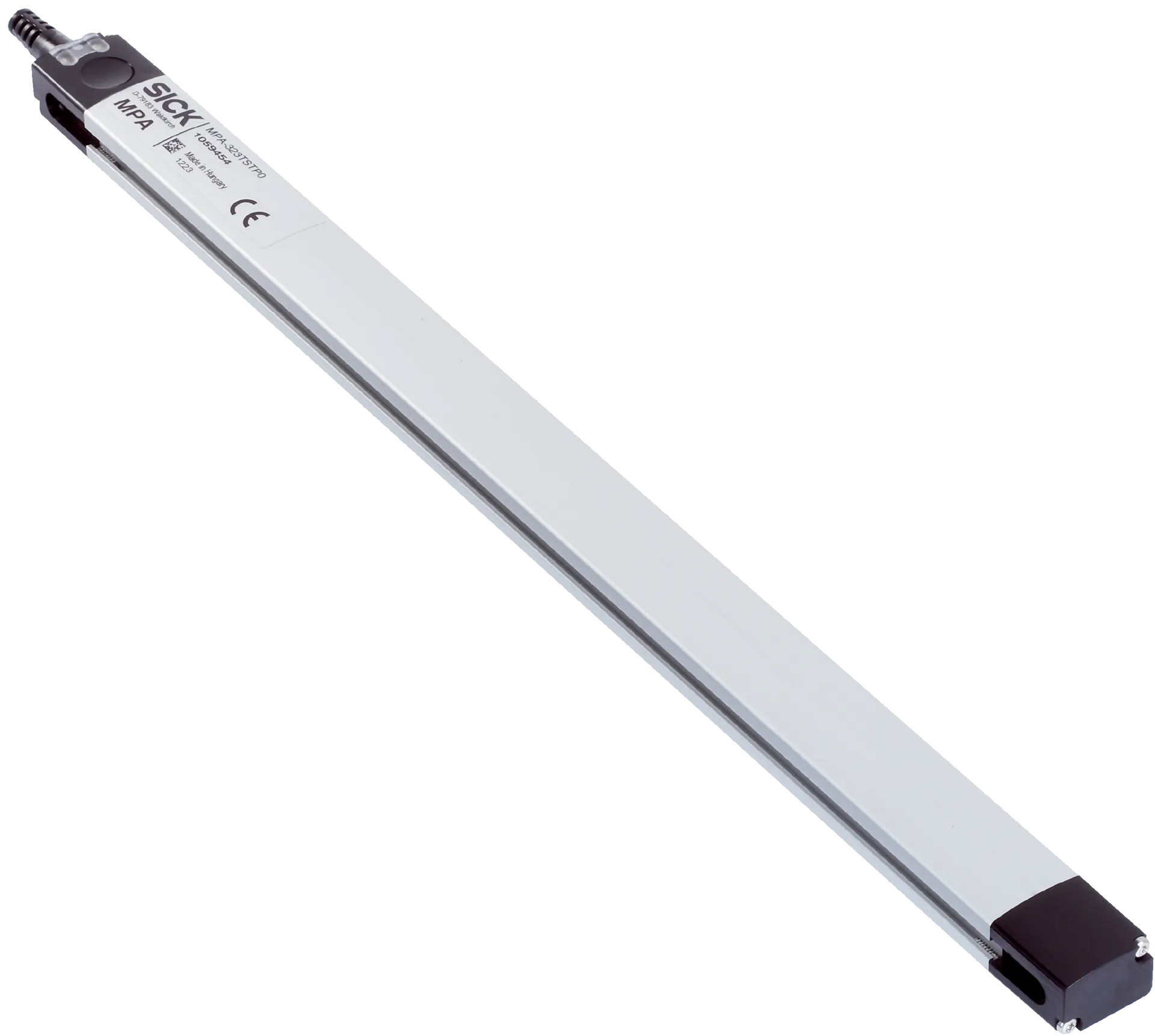

Cylinder sensors | MPA | MPA-323THTU0 | Connection type: Cable, 4-wire, stripped, 2 m | Output function: Analog, IO-Link | Measuring range: 323 mm | Smart Sensor: Enhanced Sensing, efficient communica…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Cylinder sensors | MPA | MPA-323THTU0 | Connection type: Cable, 4-wire, stripped, 2 m | Output function: Analog, IO-Link | Measuring range: 323 mm | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis | Communication interface: IO-Link
Specification
Features
| Cylinder type | Universal |
|---|---|
| Cylinder types with adapter | Round body cylinderTie rod cylinderT-slot cylindersFesto cylinders DSBCSMC cylinders CP96 |
| Measuring range | 323 mm 1) |
| Housing length | 325Â mm |
| Output function | Analog, IO-Link |
| Electrical wiring | DC 4-wire |
| Analog output (voltage) | 0Â VÂ ... 10Â V |
| Analog output (current) | 4Â mAÂ ... 20Â mAÂ 2) |
| Enclosure rating | IP65Â 3)IP67IP68 |
| Teach-in control panel | Teaching in the measuring rangeSelecting the current/voltage output or IO-LinkResetting the measuring range to factory settings |
| IO-Link | Teaching in the measuring rangeResetting the measuring range |
| IO-Link functions | Standard functions |
Mechanics/electronics
| Supply voltage | 15Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Power consumption | 35Â mA, without load |
| Max. load resistance | ≤ 500 Ω Power Output, at 24 V |
| Min. load resistance | ≥ 2 kΩ 1) |
| Protection class | III |
| Required magnetic field sensitivity, typ. | 2Â mTÂ ... 15Â mT |
| Resolution, typ. | 0.03 % FSR (max. ≥ 0.06 mm) 2) 3) |
| Linearity error, typ. | 0.5 mm 4) |
| Repeat accuracy, typ. | 0.06 % FSR (≥ 0.1 mm) 5) |
| Sampling rate, typ. | 1.15 ms 6) |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Status indicator LED | Yes |
| Teach-in | Yes |
| Ambient operating temperature | –20 °C ... +70 °C |
| Shock and vibration resistance | 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm |
| EMC | According to ENÂ 60947-5-2Â 7) |
| Connection type | Cable, 4-wire, stripped, 2Â m |
| Deep-freeze property | Do not bend below 0 °C |
| Conductor cross section | 0.08 mm² |
| Cable diameter | Ø 2.6 mm |
| Bending radius | With fixed installation >Â 5Â x cable diameter |
| Cable outlet | Axial |
| Housing | Metal, Aluminum |
| Cable | PUR |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
Safety-related parameters
| MTTFD | 162Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Communication interface
| Communication interface | IO-Link V1.0.1 |
|---|---|
| Communication Interface detail | COM2 |
| Cycle time | 2.3Â ms |
| Process data length | 16Â Bit |
| Process data structure | Bit 0Â ... 3Â = reservedBit 4Â ... 5Â = position (after decimal point)Bit 6Â ... 15Â = position (before decimal point) |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| IO-Link certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27270104 |
|---|---|
| ECLASS 5.1.4 | 27270104 |
| ECLASS 6.0 | 27270104 |
| ECLASS 6.2 | 27270104 |
| ECLASS 7.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 8.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 10.0 | 27270104 |
| ECLASS 11.0 | 27270104 |
| ECLASS 12.0 | 27274301 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
