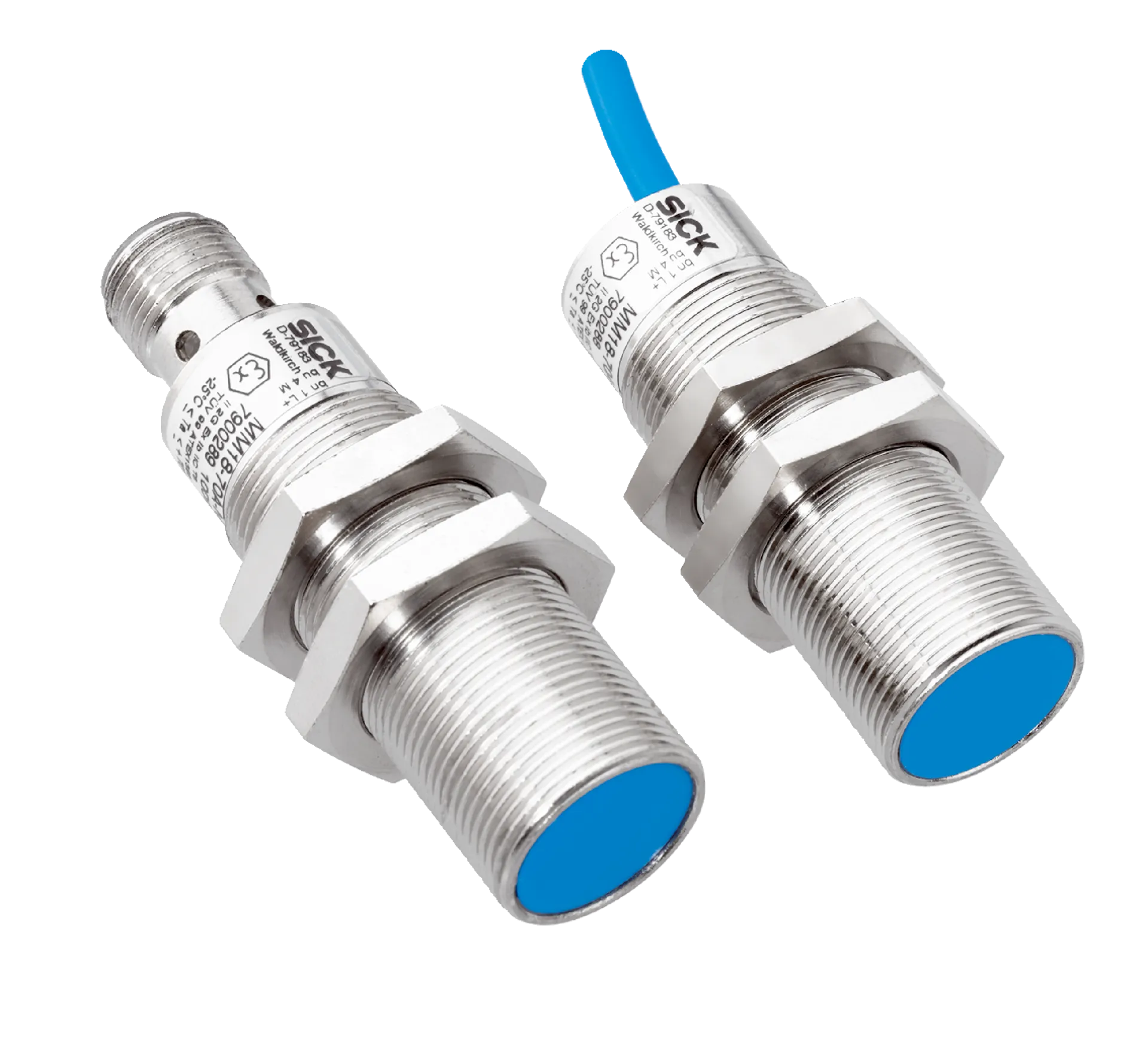

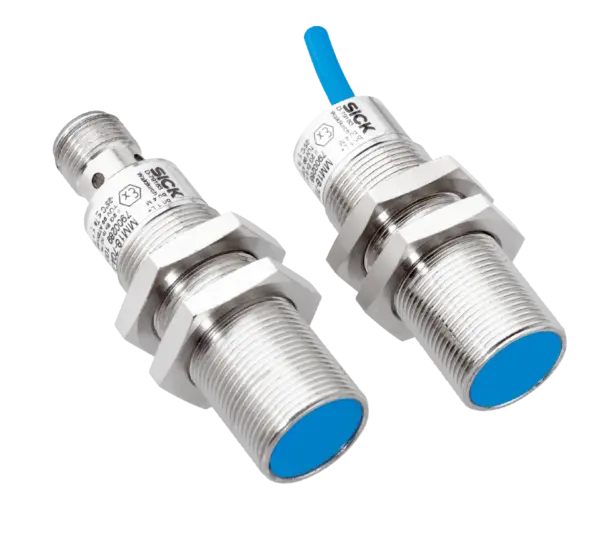

Sick MM18-70A-N-ZC0
Magnetic sensors | MMN | MM18-70A-N-ZC0 | Sensing range Sn: 70 mm | Switching output: NAMUR | Connection type: Male connector M12, 4-pin | Housing material: Metal
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Magnetic sensors | MMN | MM18-70A-N-ZC0 | Sensing range Sn: 70 mm | Switching output: NAMUR | Connection type: Male connector M12, 4-pin | Housing material: Metal
Specification
Features
| Housing | Metric |
|---|---|
| Thread size | M18Â x 1 |
| Diameter | Ø 18 mm |
| Sensing range Sn | 5 mm ... 70 mm 1) |
| Safe sensing range Sa | 56.7Â mm |
| Magnetic sensitivity | 0.7Â mT |
| Switching frequency | 1,000Â Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | NAMUR |
| Switching output detail | NAMUR |
| Output characteristic | Control current depending on switching state according to NAMUR ENÂ 60947-5-6 |
| Electrical wiring | DC 2-wire |
| Magnetic alignment | Axial |
| Enclosure rating | IP67Â 2) |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
Mechanics/electronics
| Ripple | ≤ 5 % 1) |
|---|---|
| Time delay before availability | ≤ 2 ms |
| Hysteresis | ≤ 25 % |
| Reproducibility | ≤ 1 % 2) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-2 |
| Current consumption, sensor is activated | ≥ 2.3 mA |
| Current consumption, sensor is not activated | ≤ 1 mA |
| Cable resistance | ≤ 50 Ω |
| Wire-break protection | ✔ |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +70 °C |
| Housing material | Metal, Nickel-plated brass |
| Housing length | 65Â mm |
| Thread length | 40Â mm |
| Tightening torque, max. | ≤ 25 Nm |
| Type approval certificate | TÜV 19 ATEX 241335 |
| UK type examination certificate | UL22UKEX2385 |
| ATEX marking | EX II 1G Ex ia IIC T6 GaEX II 1D Ex ia IIIC T20085 °C DaTa: –25 °C ... +70 °C |
| Ex area category | 1G, 1D |
| Input voltage Ui max. | 16Â VÂ 3) |
| Input power Pi max. | 100Â mWÂ 3) |
| Input current Ii max. | 30Â mAÂ 3) |
| Internal capacitance Ci max. | 130Â nFÂ 3) |
| Internal inductance Li max. | 10 µH 3) |
| Nominal voltage | 8.2Â VÂ DC |
Safety-related parameters
| MTTFD | 2,828Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| ATEX certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270104 |
|---|---|
| ECLASS 5.1.4 | 27270104 |
| ECLASS 6.0 | 27270104 |
| ECLASS 6.2 | 27270104 |
| ECLASS 7.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 8.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 10.0 | 27270104 |
| ECLASS 11.0 | 27270104 |
| ECLASS 12.0 | 27274301 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122230 |
