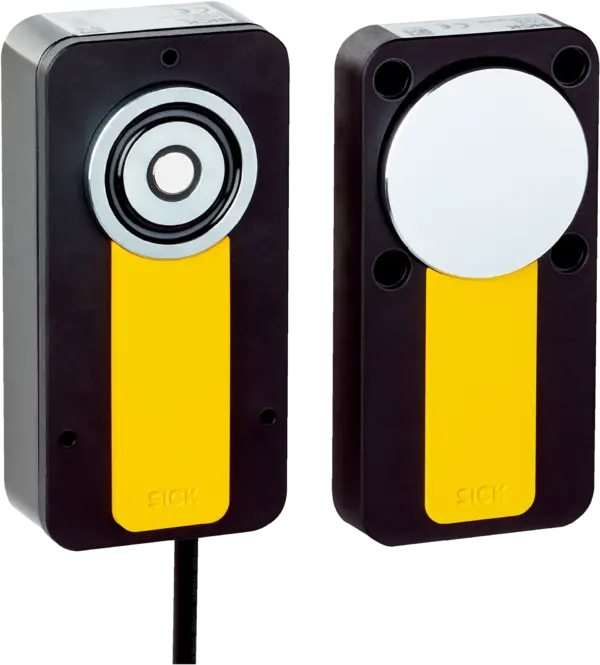

Sick MLP1-SMUC0AC
Safety switches | MLP1 | MLP1-SMUC0AC | Note: Consists of sensor and actuator | Coding: Uniquely coded | Connection type Detail: Cable with plug, M12, 5-pin and cable with socket, M12, 5-pin | Safe se…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety switches | MLP1 | MLP1-SMUC0AC | Note: Consists of sensor and actuator | Coding: Uniquely coded | Connection type Detail: Cable with plug, M12, 5-pin and cable with socket, M12, 5-pin | Safe series connection: Direct (without diagnostics)
Specification
Features
| Sensor principle | RFID |
|---|---|
| Locking principle | Power to lock |
| Coding | Uniquely coded |
| Locking force Fmax | 550Â N (GS-ET-19) |
| Locking force FZh | 500Â N (GS-ET-19) |
| Retaining force | 25Â N |
| Offset tolerance | ≤ 5 mm |
| Assured switch off distance Sar | 35Â mm |
| For process protection only | ✔ |
Safety-related parameters
| Safety integrity level | SIL 3Â (IECÂ 61508) |
|---|---|
| Category | Category 4Â (ENÂ ISOÂ 13849) |
| Performance level | PL e (EN ISO 13849) 1) |
| PFHD (mean probability of a dangerous failure per hour) | 15Â * 10-9Â 2) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Type | Type 4Â (ENÂ ISOÂ 14119) |
| Actuator coding level | High coding level (ENÂ ISOÂ 14119) |
| Safe state in the event of a fault | At least one safety-related semiconductor output (OSSD) is in the OFF state. |
Functions
| Switching behavior of the OSSDs | Actuator monitoring |
|---|---|
| Safe series connection | Direct (without diagnostics) |
Interfaces
| Connection type | Cable with plug, M12, 5-pin and cable with socket, M12, 5-pin |
|---|---|
| Length of cable | 150Â mm |
| Long connecting cable | ≤ 140 m |
| Cable diameter | 5.5Â mm |
| Conductor cross section | 0.12 mm² |
| Bend radius (with fixed installation) | > 8Â x cable diameter |
| Bend radius (with moving cable) | > 12Â x cable diameter |
| Cable material | PVC |
| Conductor material | Copper |
| Coupling nut material | Zinc die-cast, nickel-plated |
| Display elements | LEDs |
| Status display | ✔ |
Electronics
| Protection class | III (IECÂ 61140) |
|---|---|
| Contamination rating | 3Â (ENÂ 60947-1) |
| Classification according to cULus | Class 2 |
| Usage category | DC-13 (IECÂ 60947-5-1) |
| Rated insulation voltage Ui | 32Â V |
| Rated impulse withstand voltage Uimp | 1,500Â V |
| Sensor | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC) |
| Magnet | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC) |
| Sensor | 24Â VÂ DC (22.8Â VÂ DCÂ ... 28.8Â VÂ DC) |
| Magnet | 24Â VÂ DC (21.6Â VÂ DCÂ ... 28.8Â VÂ DC) |
| Locking active | 350Â mA |
| Locking deactivated | 50Â mA |
| Switching frequency | ≤ 0.5 Hz |
| Type of output | Self-monitoring semiconductor outputs (OSSDs) |
| Output current (OSSDs) | ≤ 100 mA |
| Diagnostic output | ≤ 25 mA, short-circuit protected |
| Cable capacitance | 400Â nF (for OUTÂ A and OUTÂ B) |
| Response time | 50 ms 1) |
| Release time | 100 ms 1) |
| Risk time | 100 ms 1) |
| Switch-on time | 2.5Â s |
| Locking principle | Power to lock |
Mechanics
| Switches (spare parts) | 510Â g |
|---|---|
| Actuator | 210Â g |
| Sensor housing | Anodized aluminum |
| Actuator housing | Fiber-glass-reinforced PVC |
| Anchor plate | Nickel-plated steel |
| Switches (spare parts) | 120 mm x 60 mm x 38.5 mm |
| Actuator | 120 mm x 60 mm x 20.5 mm |
| Vertical | ≤ 5 mm |
| Horizontal | ≤ 5 mm |
| Aperture angle | ≤ 3° |
Ambient data
| Enclosure rating | IP67 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –20 °C ... +55 °C |
| Storage temperature | –25 °C ... +70 °C |
| Relative humidity | 50 %, at 70 °C (IEC 60947-5-2) |
| Vibration resistance | 10 Hz ... 55 Hz, 1 mm (IEC 60068-2-6) |
| Shock resistance | 30Â g, 11Â ms (ENÂ 60068-2-27) |
| EMC | ENÂ IECÂ 61326-3-1ENÂ IECÂ 60947-5-2ENÂ IECÂ 60947-5-3 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| UK-Type-Examination approval | ✔ |
| cULus certificate | ✔ |
| FCC certificate | ✔ |
| TÜV approval | ✔ |
| TÜV approval annex | ✔ |
| EC-Type-Examination approval | ✔ |
Classifications
| ECLASS 5.0 | 27272603 |
|---|---|
| ECLASS 5.1.4 | 27272603 |
| ECLASS 6.0 | 27272603 |
| ECLASS 6.2 | 27272603 |
| ECLASS 7.0 | 27272603 |
| ECLASS 8.0 | 27272603 |
| ECLASS 8.1 | 27272603 |
| ECLASS 9.0 | 27272603 |
| ECLASS 10.0 | 27272603 |
| ECLASS 11.0 | 27272603 |
| ECLASS 12.0 | 27272603 |
| ETIM 5.0 | EC002593 |
| ETIM 6.0 | EC002593 |
| ETIM 7.0 | EC002593 |
| ETIM 8.0 | EC002593 |
| UNSPSC 16.0901 | 39122205 |
